1UR-FSE ENGINE CONTROL SYSTEM: ACCELERATOR PEDAL: ON-VEHICLE INSPECTION

1. INSPECT ACCELERATOR PEDAL

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the tester ON.

(d) Enter the following menus: Powertrain / Engine / Data List / ETCS / Accelerator Position No. 1 and accelerator Position No. 2.

(e) Read the value displayed on the tester.

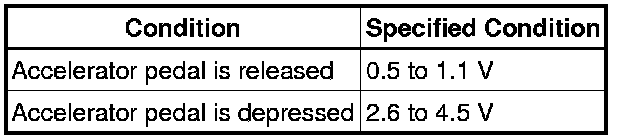

ACCEL POS #1 (Accelerator Position No. 1) standard voltage:

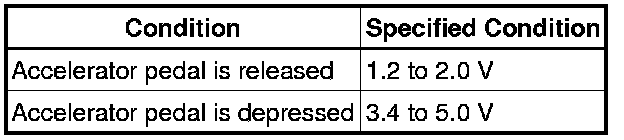

ACCEL POS #2 (Accelerator Position No. 2) standard voltage:





If the result is not as specified, check the accelerator pedal, wire harness or ECM.
