Removal

1UR-FSE ENGINE CONTROL SYSTEM: ACCELERATOR PEDAL: REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTICE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE ACCELERATOR PEDAL

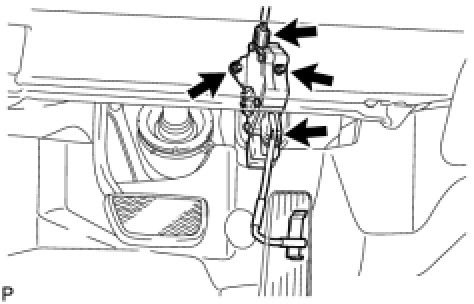

(a) Disconnect the accelerator pedal sensor connector.

(b) Remove the 3 nuts and accelerator pedal.

NOTICE:
* Avoid physical shocks to the accelerator pedal.
* Do not disassemble the accelerator pedal assembly.
