Replacement

AXLE: REAR AXLE HUB BOLT: REPLACEMENT

1. REMOVE REAR WHEEL

2. REMOVE REAR DISC BRAKE CALIPER ASSEMBLY LH Removal

3. REMOVE REAR DISC Removal

4. REMOVE REAR AXLE LH HUB BOLT

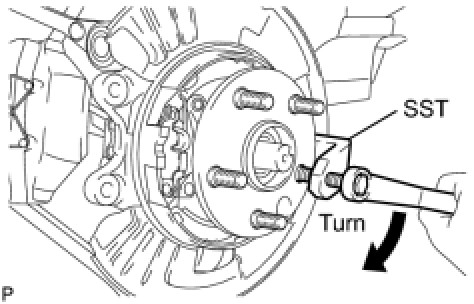

(a) Using SST, remove the rear axle hub bolt.





SST : 09650-17011

5. INSTALL REAR AXLE LH HUB BOLT

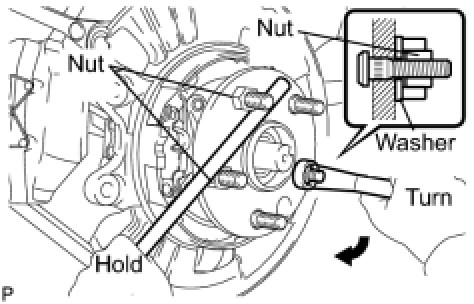

(a) Install a washer and nut to a new bolt as shown in the illustration.





(b) Using a screwdriver or an equivalent to hold the hub and bearing, install the rear axle hub bolt by tightening the nut.

NOTICE:
Do not damage the threads of the hub bolts.

6. INSTALL REAR DISC Installation

7. ADJUST PARKING BRAKE SHOE CLEARANCE Adjustments

8. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH Installation

9. INSTALL REAR WHEEL

Torque : 140 Nm (1428 kgf-cm, 103 ft-lbf)
