Installation

AIR CONDITIONING: ROOM TEMPERATURE SENSOR (for Front Side): INSTALLATION

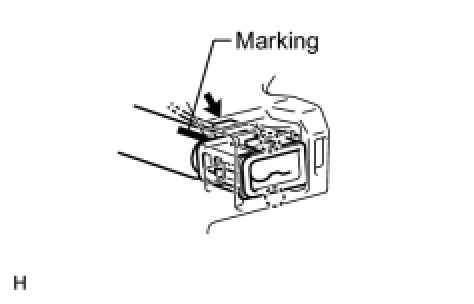

1. INSTALL ROOM TEMPERATURE SENSOR





(a) Attach the claws to install the sensor.

(b) Connect the connector.

(c) Connect the duct.

2. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Installation

3. INSTALL NO. 1 INSTRUMENT CLUSTER MOULDING Installation

4. INSTALL INSTRUMENT SIDE PANEL LH Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

6. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

7. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.
