Removal

1UR-FSE LUBRICATION: OIL PRESSURE SWITCH: REMOVAL

1. REMOVE NO. 1 ENGINE UNDER COVER Service and Repair

2. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY

(a) Disconnect the switch connector.

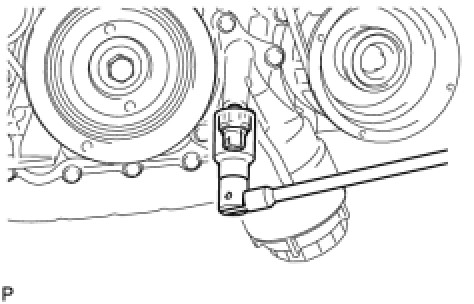

Using a 24 mm deep socket wrench, remove the switch.
