Inspection

BRAKE CONTROL: BRAKE ACTUATOR: INSPECTION

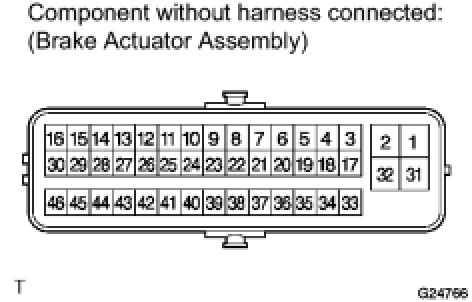

1. CHECK BRAKE ACTUATOR ASSEMBLY

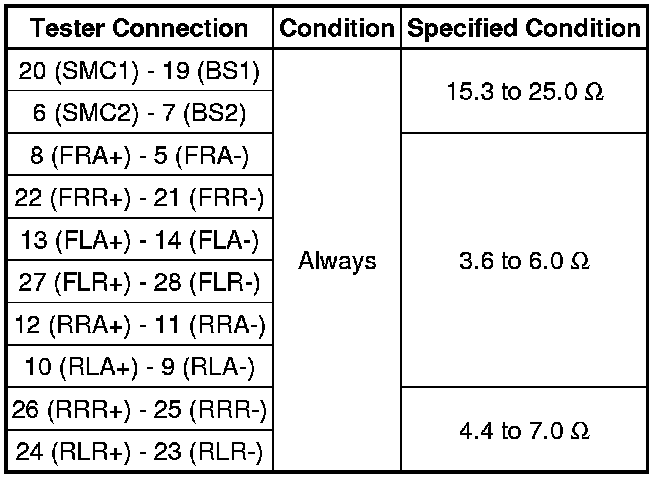

(a) Measure the resistance according to the value(s) in the table below.





HINT
Perform the check with the actuator at the lowest temperature possible.

Standard resistance:





If the result is not as specified, replace the brake actuator.

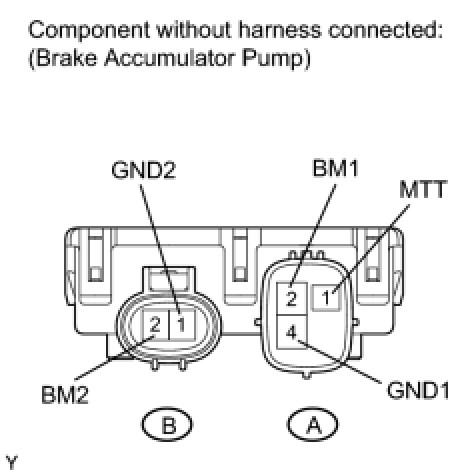

2. CHECK BRAKE ACCUMULATOR PUMP

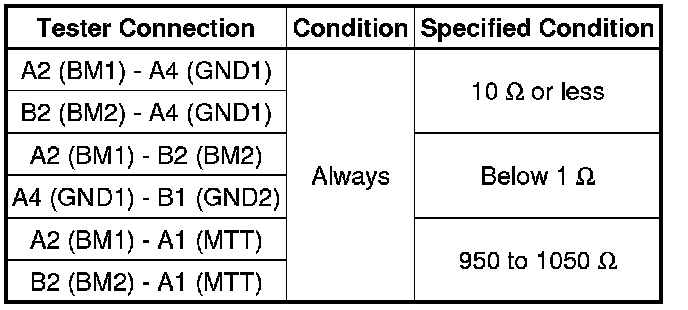

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





If the result is not as specified, replace the brake accumulator pump.
