Disposal

BRAKE CONTROL: BRAKE ACTUATOR: DISPOSAL

1. DISPOSE OF BRAKE ACCUMULATOR PUMP

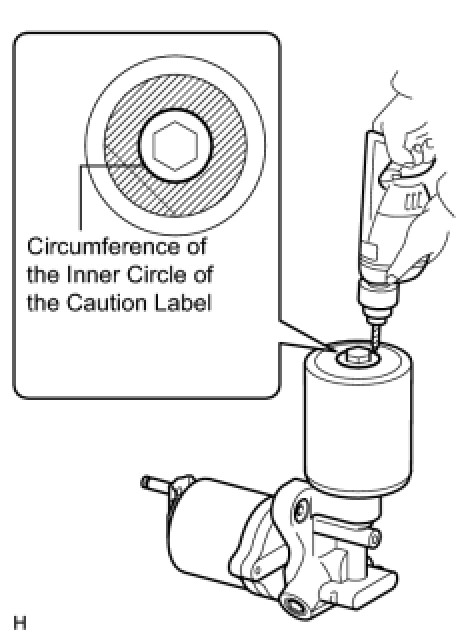

(a) Using a drill, slowly make a hole at the circumference of the inner circle of the caution label and discharge the gas.





CAUTION:
Be sure to wear protective glasses as fragments may fly out due to pressure.

HINT
* Drill the hole approximately 10 mm (0.394 in.) deep.
* The gas is nitrogen which is colorless, odorless, and harmless.
