SEAT: SEAT CLIMATE CONTROL SWITCH (for Front Side): INSTALLATION

INSTALLATION





1. INSTALL SEAT CLIMATE CONTROL SWITCH

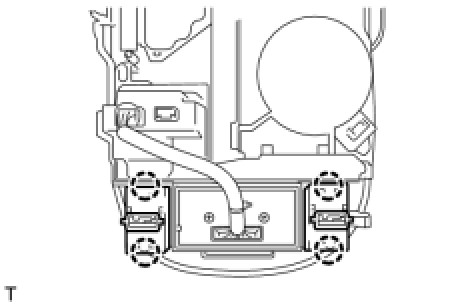

(a) Attach the 4 claws and install the 2 switches.
2. INSTALL REAR UPPER CONSOLE PANEL
3. INSTALL NO. 3 BOX PANEL
4. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
5. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
6. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
