Removal

SEAT: AIR HOSE (for Ottoman): REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:
* w/ Navigation System (for HDD):
After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE REAR SEAT CUSHION ASSEMBLY LH Removal

4. REMOVE REAR SEAT CUSHION ASSEMBLY RH Removal

5. REMOVE REAR CENTER SEAT CUSHION ASSEMBLY (w/ Center Seat) Removal

6. REMOVE REAR SEATBACK ASSEMBLY LH Removal

7. REMOVE REAR SEAT CONSOLE BOX ASSEMBLY (w/ Rear Console Box) Removal

8. REMOVE REAR SEATBACK ASSEMBLY RH Removal

9. REMOVE REAR SEAT CENTER ARMREST ASSEMBLY (w/ Center Seat) Removal

10. REMOVE REAR DOOR SCUFF PLATE LH Removal

11. REMOVE REAR DOOR SCUFF PLATE RH Removal

12. REMOVE REAR SEAT SIDE GARNISH LH Removal

13. REMOVE REAR SEAT SIDE GARNISH RH Removal

14. REMOVE INNER ROOF SIDE GARNISH LH Removal

15. REMOVE INNER ROOF SIDE GARNISH RH Removal

16. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY Removal

17. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY Removal

18. REMOVE ROPE HOOK ASSEMBLY Removal

19. REMOVE ROPE HOOK Removal

20. REMOVE DECK TRIM SIDE BOARD LH Removal

21. REMOVE DECK TRIM SIDE BOARD RH Removal

22. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY Removal

23. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM HOOK (w/o Rear Cooler) Removal

24. REMOVE NO. 1 COOLER COVER (w/ Rear Cooler) Removal

25. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER Removal

26. REMOVE DECK BOARD ASSEMBLY (w/o Spare Tire)

27. REMOVE TOOL BOX (w/o Spare Tire)

28. REMOVE REAR FLOOR FINISH PLATE Removal

29. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH Removal

30. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH Removal

31. REMOVE ROOF SIDE NO. 2 AIR DUCT LH Removal

32. REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH Removal

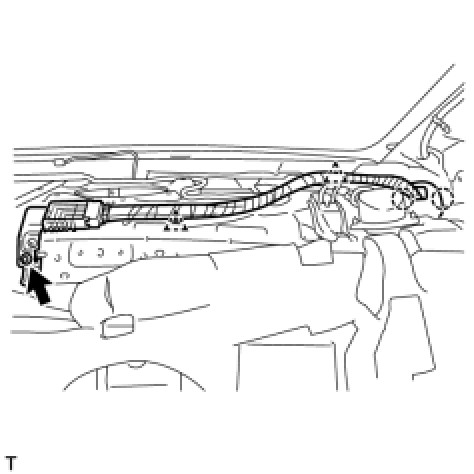

33. REMOVE AIR HOSE

(a) Disconnect the air hose connector.





(b) Remove the 2 hose clamps.

(c) Remove the bolt and 2 hose clamps.





(d) for RHD:

Remove the bolt and hose clamp.

(e) Detach the 2 claws and remove the air hose.
