Pinout Values and Diagnostic Parameters

SLIDING ROOF: SLIDING ROOF SYSTEM: TERMINALS OF ECU

1. CHECK SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY (SLIDING ROOF ECU)





(a) Disconnect the X5 ECU connector.

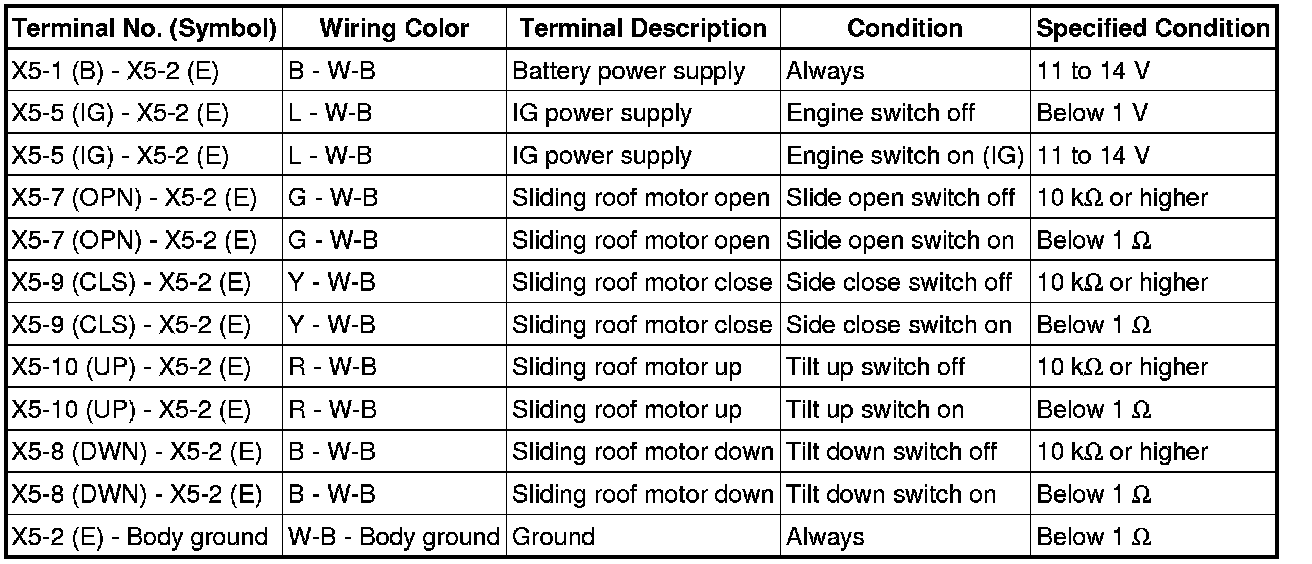

(b) Measure the resistance and voltage according to the value(s) in the table below.





If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the X5 ECU connector.

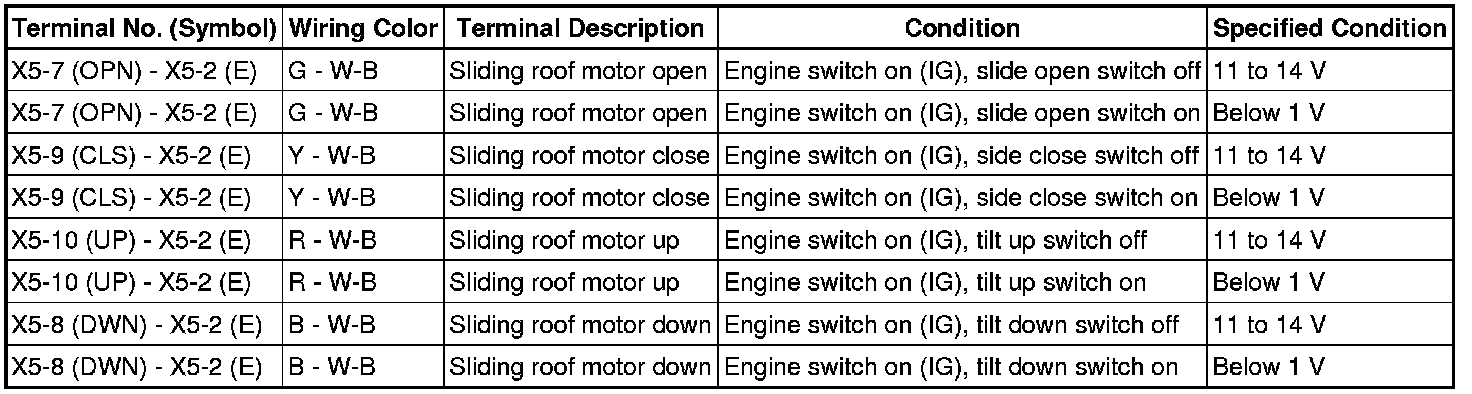

(d) Measure the voltage according to the value(s) in the table below.





If the result is not as specified, the sliding roof drive gear sub-assembly may have a malfunction.
