Audio and Visual System (w/o Multi-Display)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Multi-display): TERMINALS OF ECU

1. CHECK INTEGRATION CONTROL AND PANEL

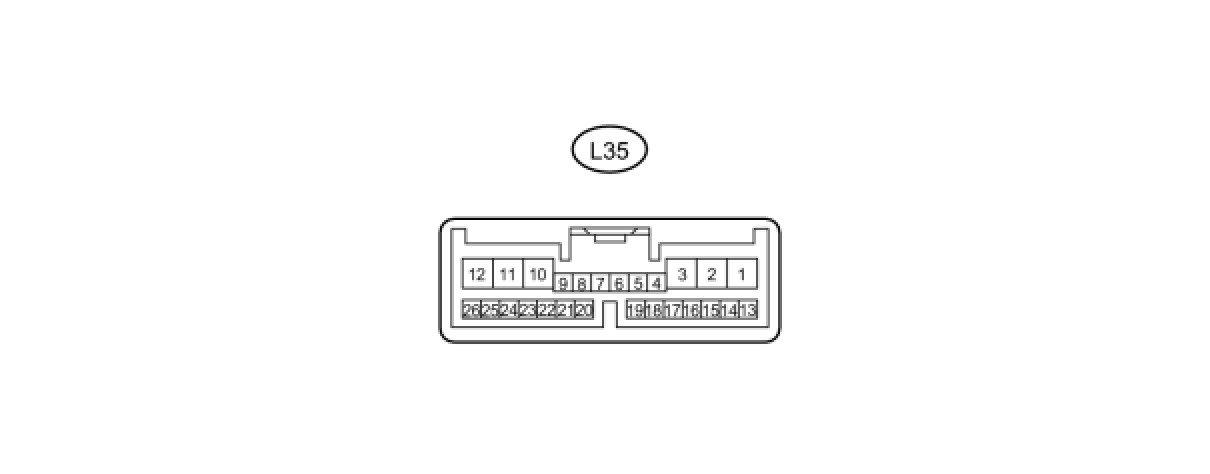

(a) Disconnect the L35 display connector.

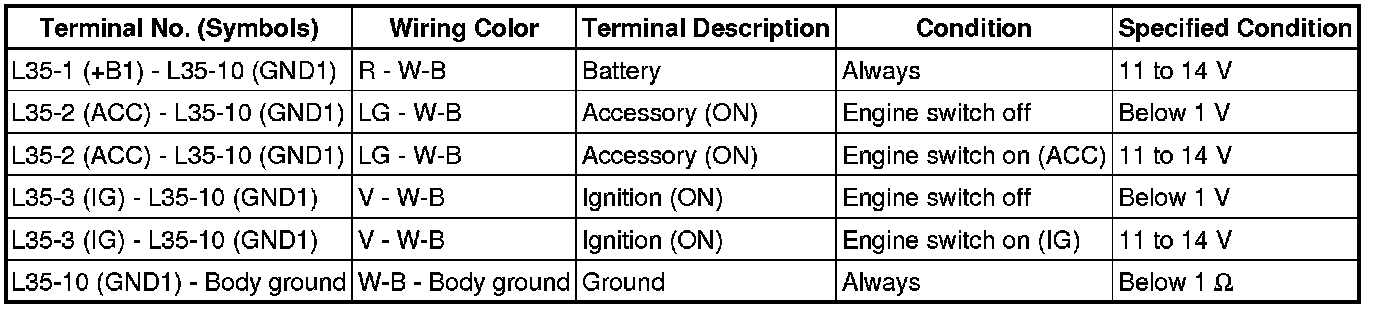

(b) Measure the resistance and voltage according to the value(s) in the table below.





If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the L35 display connector.

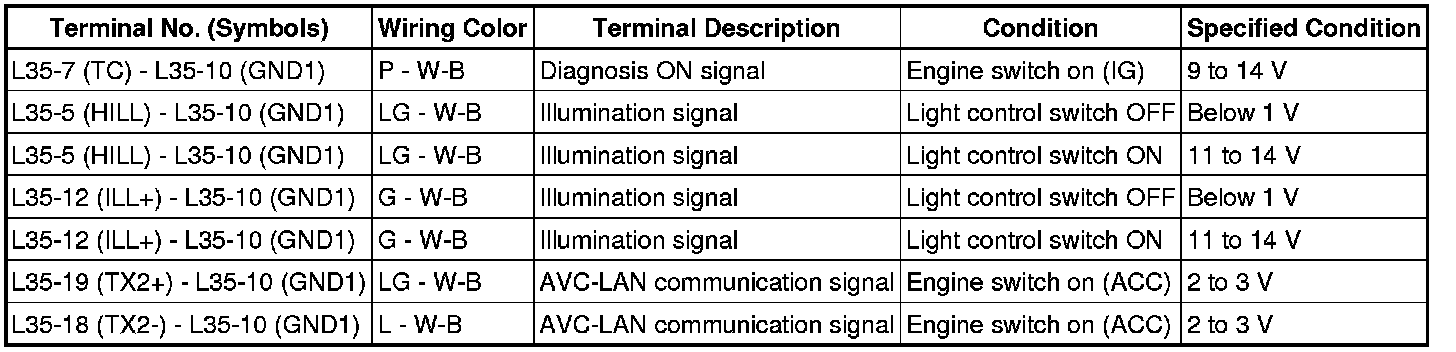

(d) Measure the voltage according to the value(s) in the table below.





If the result is not as specified, the integration control and panel may have a malfunction.

2. CHECK RADIO RECEIVER

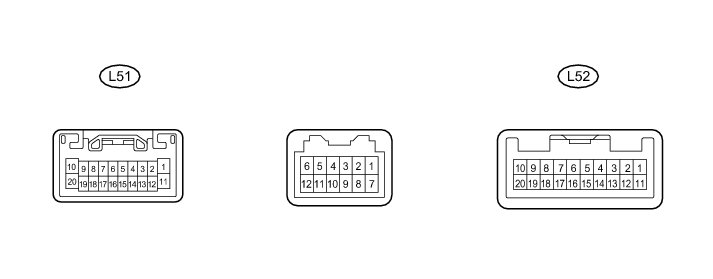

(a) Disconnect the L51 receiver connector.

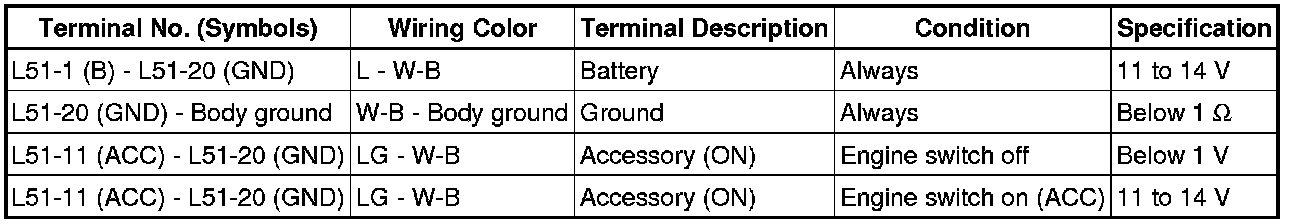

(b) Measure the resistance and voltage according to the value(s) in the table below.





If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the L51 receiver connector.

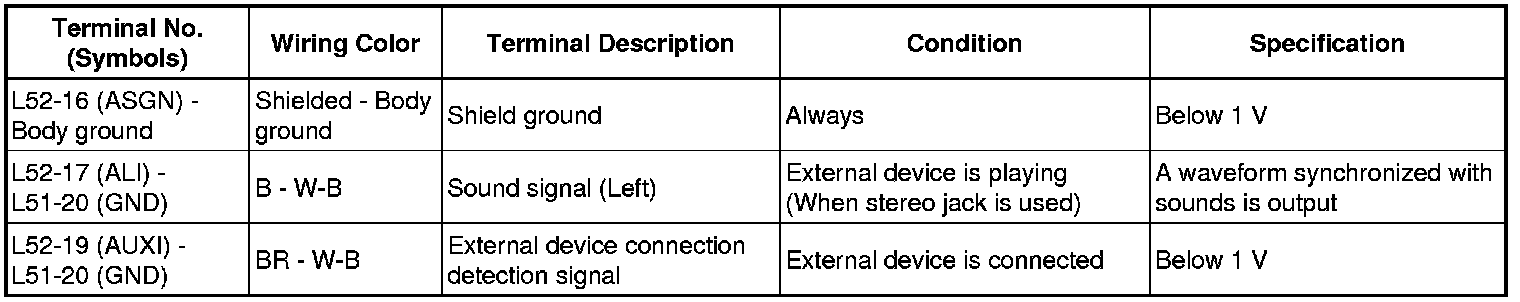

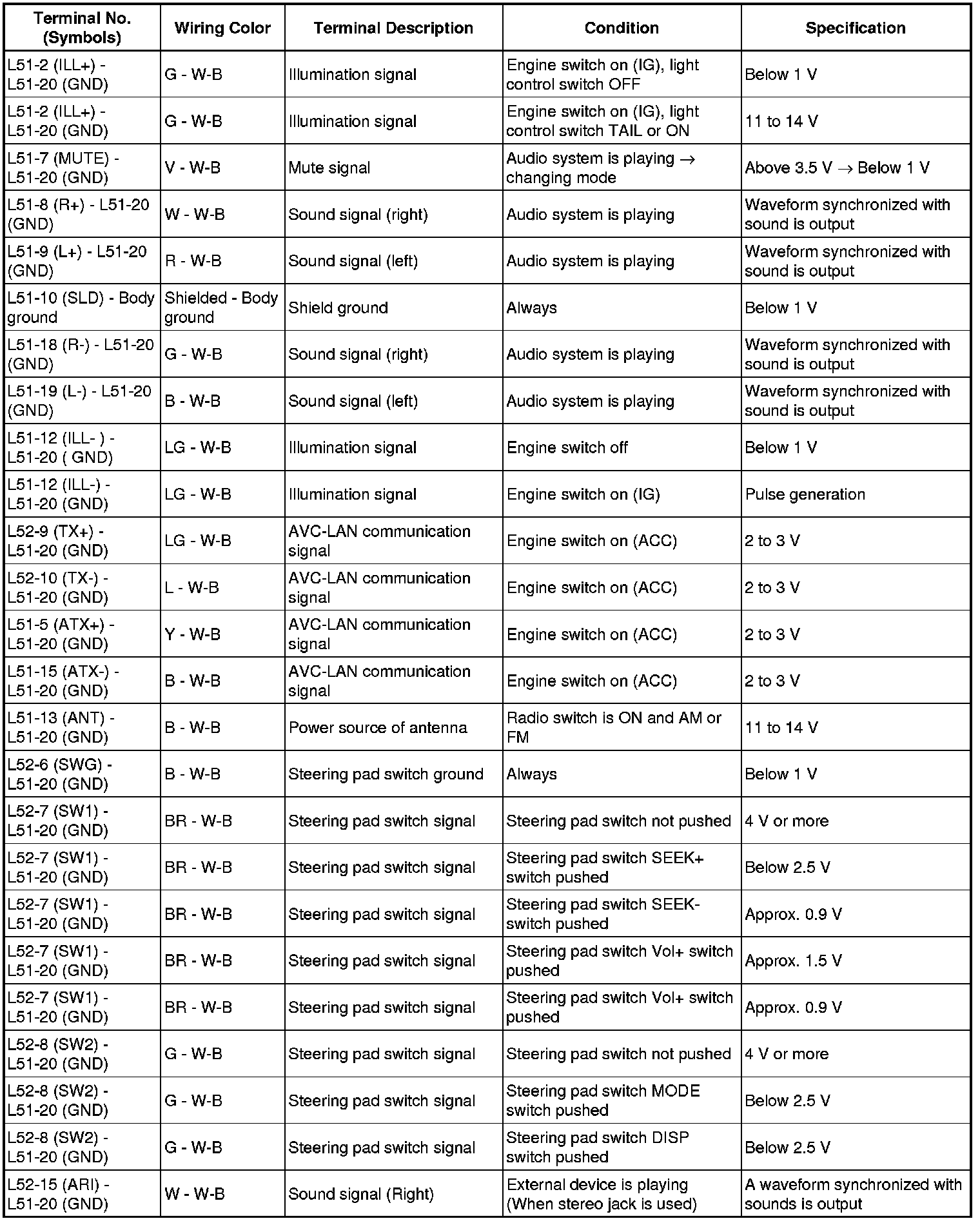

(d) Measure the voltage according to the value(s) in the table below.









If the result is not as specified, the receiver may have a malfunction.

3. CHECK STEREO COMPONENT AMPLIFIER

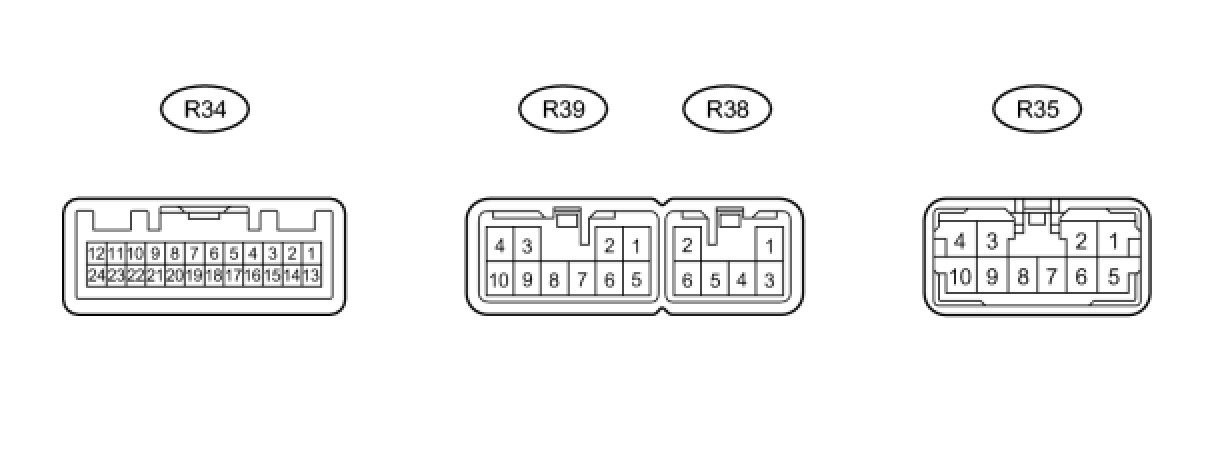

(a) Disconnect the R34 and R38 amplifier connectors.

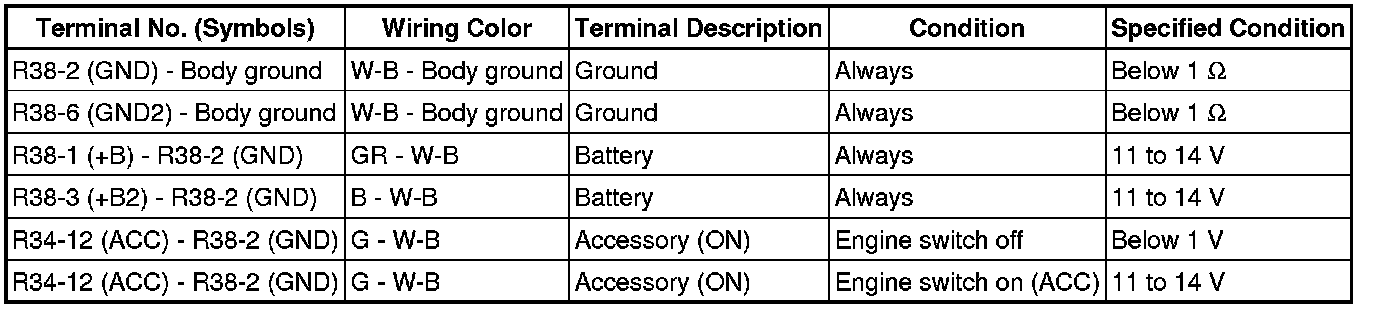

(b) Measure the resistance and voltage according to the value(s) in the table below.





If the result is not as specified, there may be a malfunction on the wire harness.

(c) Reconnect the R34 and R38 amplifier connectors.

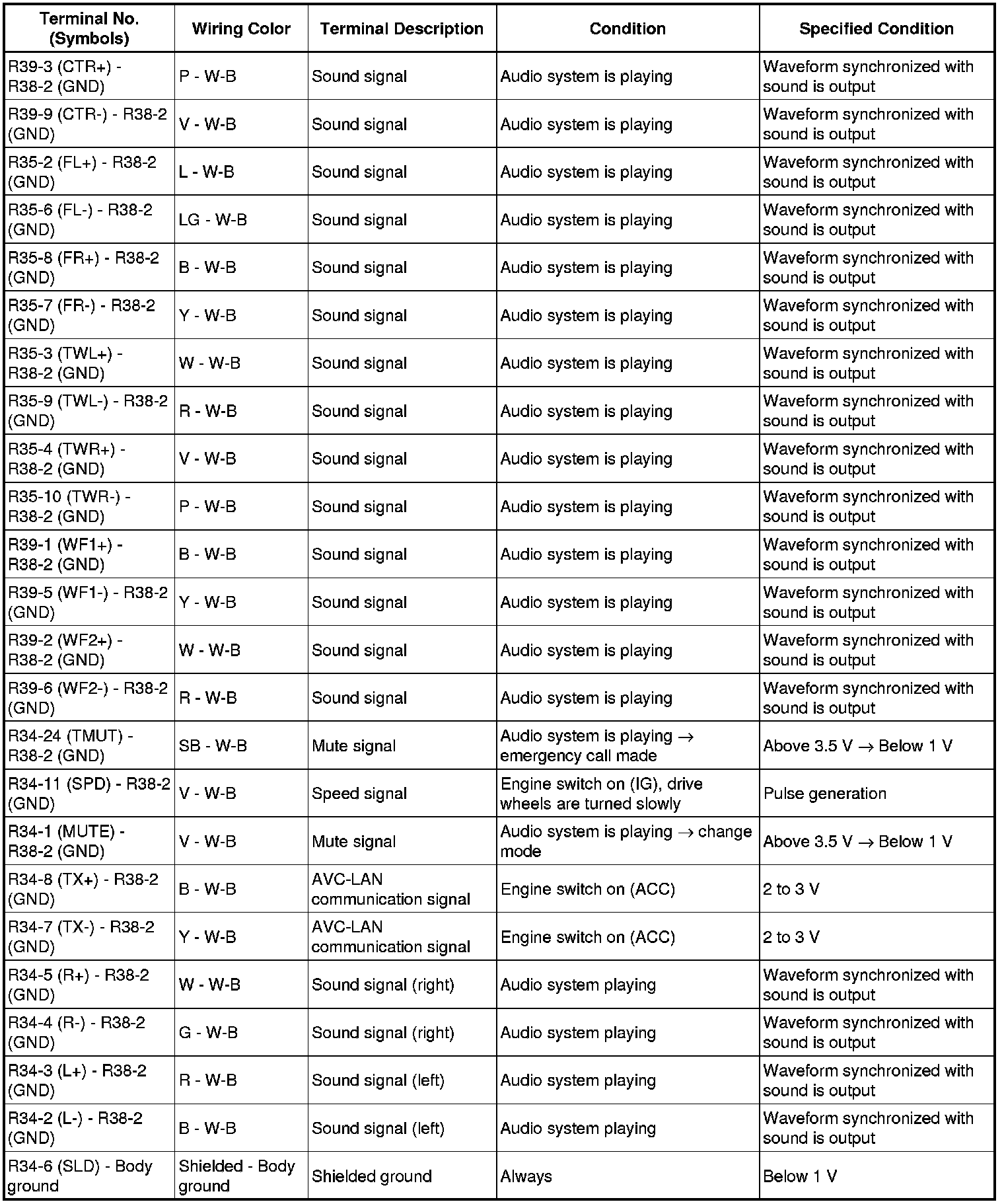

(d) Measure the voltage according to the value(s) in the table below.





If the result is not as specified, the amplifier may have a malfunction.

4. CHECK TELEMATICS TRANSCEIVER Safety Connect System
