AUDIO / VISUAL: INSTRUMENT PANEL SPEAKER: REMOVAL

HINT
* Use the same procedures for the LH side and RH side.
* The procedures listed below are for the LH side.

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
* w/ Navigation System (for HDD):
After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE NO. 1 SPEAKER HOLE COVER





(a) Using a screwdriver, detach the 4 clips and remove the hole cover.

HINT
Tape the screwdriver tip before use.

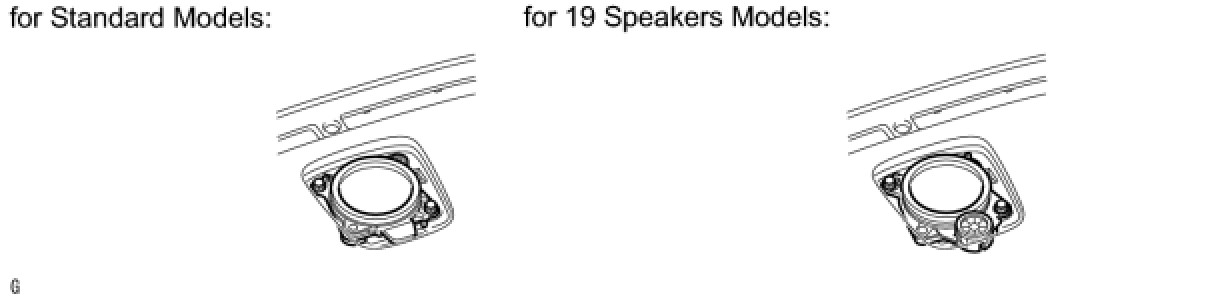

4. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY

(a) Remove the 2 bolts.

(b) Remove the speaker and disconnect the speaker connector.

NOTICE:
Do not touch the cone part of the speaker.





5. REMOVE FRONT PILLAR GARNISH LH Removal

6. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY





(a) Using a screwdriver, detach the 2 clips and 7 claws.

HINT
Tape the screwdriver tip before use.

(b) Remove the speaker panel.

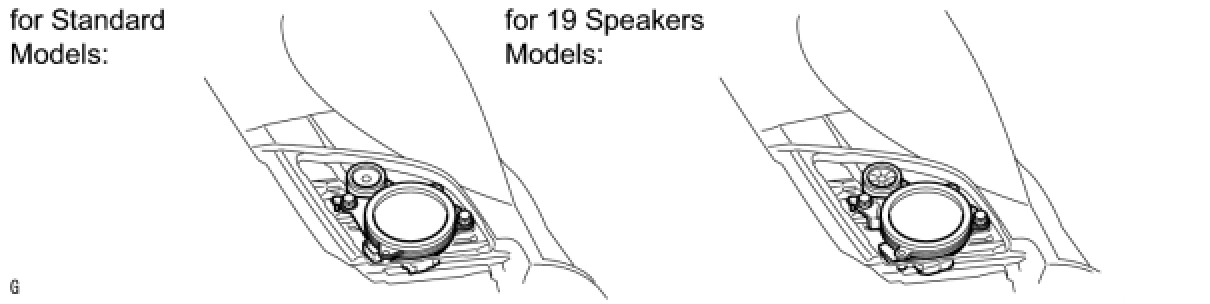

7. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY

(a) Remove the 2 bolts.

(b) Remove the speaker and disconnect the speaker connector.

NOTICE:
Do not touch the cone part of the speaker.
