Installation

AUDIO / VISUAL: FRONT DOOR SPEAKER: INSTALLATION

HINT
* Use the same procedures for the LH side and RH side.
* The procedures listed below are for the LH side.

1. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY

(a) Connect the connector.

(b) Temporarily install the speaker by attaching the claws of the speaker to the door panel.

(c) Install the speaker with the 3 screws.

NOTICE:
Do not touch the cone part of the speaker.

HINT

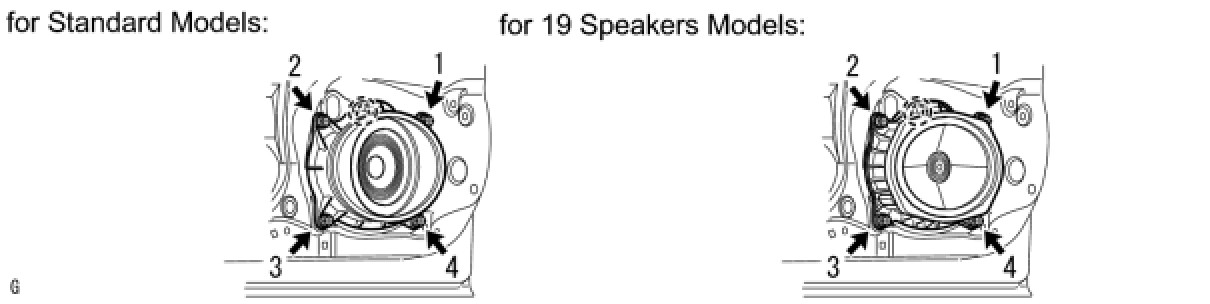

Install the screws in the order shown in the illustration.





2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Reassembly

3. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY Reassembly

4. INSTALL DOOR INSIDE HANDLE BEZEL Reassembly

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

6. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
