Removal

AUDIO / VISUAL: VIDEO TERMINAL (for 4-Passenger with Ottoman): REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
* w/ Navigation System (for HDD):
After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE REAR SEAT CONSOLE ARMREST BASE Disassembly

4. REMOVE POWER OUTLET SOCKET





(a) Detach the claw and remove the power outlet socket.

HINT
Open the cover.

5. REMOVE POWER OUTLET SOCKET COVER





(a) Detach the 2 claws and remove the power outlet socket cover.

6. REMOVE REAR CIGARETTE LIGHTER COVER (w/ Cigarette Lighter)





(a) Remove the cover.

7. REMOVE REAR CIGARETTE LIGHTER ASSEMBLY (w/ Cigarette Lighter)

(a) Remove the cigarette lighter knob and element.

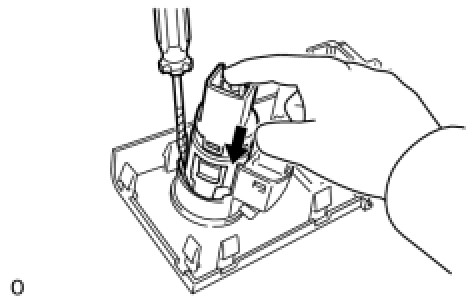

(b) Using a screwdriver, detach the claw and remove the cigarette lighter socket and retainer.





HINT
Tape the screwdriver tip before use.

8. REMOVE CIGARETTE LIGHTER BEZEL STAY REAR (w/ Cigarette Lighter)





(a) Detach the 2 claws and remove the bezel stay.
