Installation
AUDIO / VISUAL: RADIO ANTENNA CORD: INSTALLATION
HINT
A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

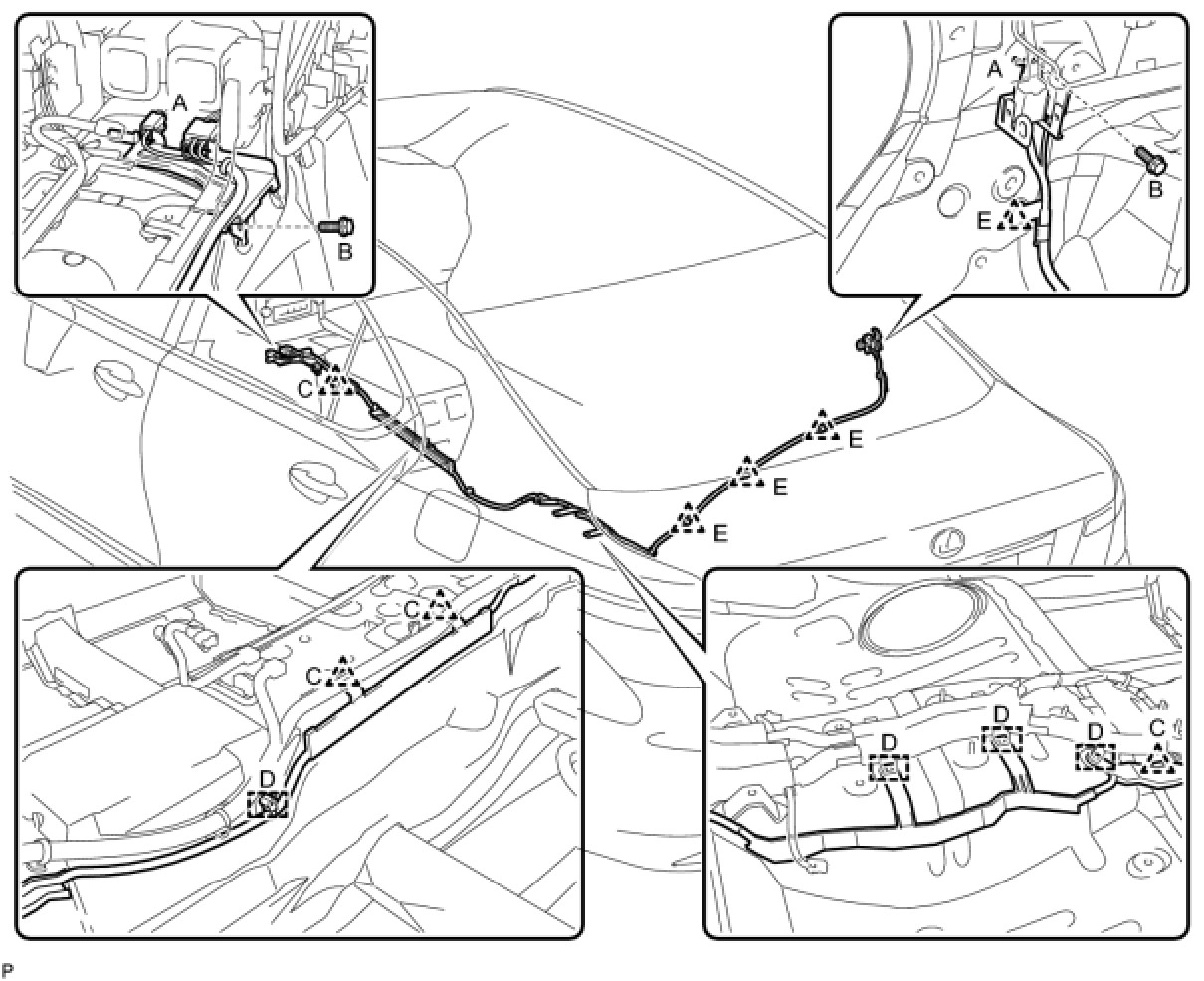

1. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY (for Long Body)
(a) Attach the 4 clips labeled E.
(b) Attach the 4 clamps labeled D to the floor stud bolts.
(c) Attach the 5 clips labeled C.
(d) Install the 2 bolts labeled B.
(e) Connect the connectors labeled A to install the antenna coed.
2. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY (for Standard Body)
(a) Attach the 4 clips labeled E.
(b) Attach the 4 clamps labeled D to the floor stud bolts.
(c) Attach the 4 clips labeled C.
(d) Install the 2 bolts labeled B.
(e) Connect the connectors labeled A to install the antenna cord.
3. INSTALL ROOF SIDE GARNISH INNER RH Installation
4. INSTALL REAR SEAT SIDE GARNISH RH Installation
5. INSTALL REAR DOOR SCUFF PLATE RH
(a) for Standard Body:
Install the rear door scuff plate RH Installation.
(b) for Long Body:
Install the rear door scuff plate RH Installation.
6. INSTALL REAR SEAT ASSEMBLY
(a) for Power Seat:
Install the rear seat assembly Installation.
(b) for 4-Passenger with Ottoman:
Install the rear seat assembly Installation.
(c) for 5-Passenger with Ottoman:
Install the rear seat assembly Installation.
(d) for Fixed Seat:
Install the rear seat assembly Installation.
7. INSTALL FRONT SEAT ASSEMBLY RH
(a) Install the front seat assembly RH Installation.
8. INSTALL FRONT CONSOLE BOX ASSEMBLY
(a) w/o Rear Entertainment System:
Install the front console box assembly Installation.
(b) w/ Rear Entertainment System:
Install the front console box assembly Installation.
9. INSTALL ANTENNA CORD SUB-ASSEMBLY
(a) Attach the clip to install the antenna cord.
(b) Connect the 2 connectors.
10. INSTALL ANTENNA CORD SUB-ASSEMBLY (w/o Display)
(a) Attach the clip to install the antenna cord.
(b) Connect the 3 connectors.
11. INSTALL DISPLAY AND NAVIGATION MODULE DISPLAY WITH BRACKET
(a) w/o Navigation System:
Install the display and navigation module display with bracket Installation.
(b) w/ Navigation System:
Install the display and navigation module display with bracket Installation.
(c) for HDD Navigation System:
Install the display and navigation module display with bracket Installation.
12. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET Installation
13. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation
14. INSTALL UPPER REAR CONSOLE PANEL SUB-ASSEMBLY Installation
15. INSTALL NO. 3 BOX PANEL Installation
16. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
17. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation
18. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
20. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
