Engine Control System Malfunction - Electronically Controlled Brake System

BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: C1201/51: Engine Control System Malfunction
C1201/51 - Engine Control System Malfunction

DESCRIPTION

The skid control ECU is connected to the ECM via CAN communication. When the signals from the engine are input normally, the fail-safe is canceled and the DTC is not stored.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC FOR SFI SYSTEM

(a) Clear the DTC (SFI system) Reading and Clearing Diagnostic Trouble Codes.

(b) Check the DTC (SFI system) Reading and Clearing Diagnostic Trouble Codes.

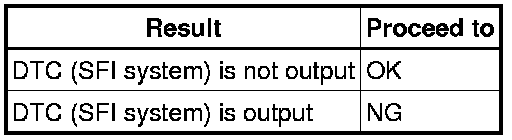

Result





NG -- GO TO SFI SYSTEM How to Proceed with Troubleshooting

OK -- END
