Pre-Collision System (w/ Driver Monitor Camera)

PRE-COLLISION: PRE-COLLISION SYSTEM (w/ Driver Monitor Camera): C1A0C: Object Recognition Camera Region Code Mismatch
C1A0C - Object Recognition Camera Region Code Mismatch

DESCRIPTION

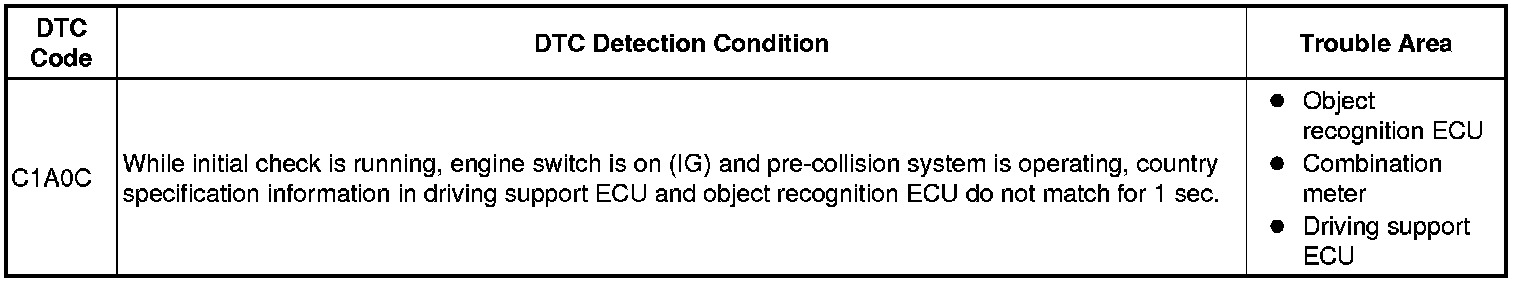

When the object recognition ECU is replaced with a new one, it acquires the country specification information from the driving support ECU. Also, when the driving support ECU is replaced with a new one, it receives country specification information from the combination meter. When country specification information in the object recognition ECU and driver monitor ECU do not match, DTC C1A0C is output.

If the sensor and vehicle country specification information are the same, and the combination meter and the driving support ECU country specification information are different, C1A0A is output.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK OBJECT RECOGNITION ECU

(a) Enter the following menus: Powertrain / Radar Cruise / Data List.

(b) Read the Data List and check the country specification information of the object recognition ECU and vehicle.

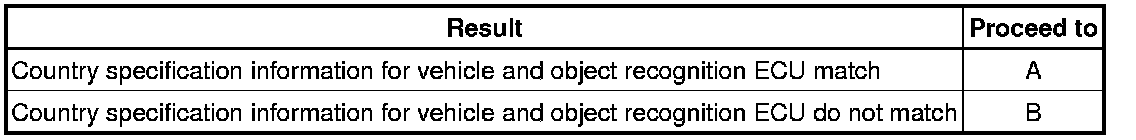

Result





HINT
The country specification information of the driving support ECU is decided by the combination meter. Even if the vehicle and object recognition ECU country specification information matches, if the country specification information for the vehicle and driving support ECU/meter do not match, it is necessary to replace the driving support ECU and meter.

B -- REPLACE OBJECT RECOGNITION ECU Removal

A -- REPLACE COMBINATION METER AND DRIVING SUPPORT ECU
