Power Steering System

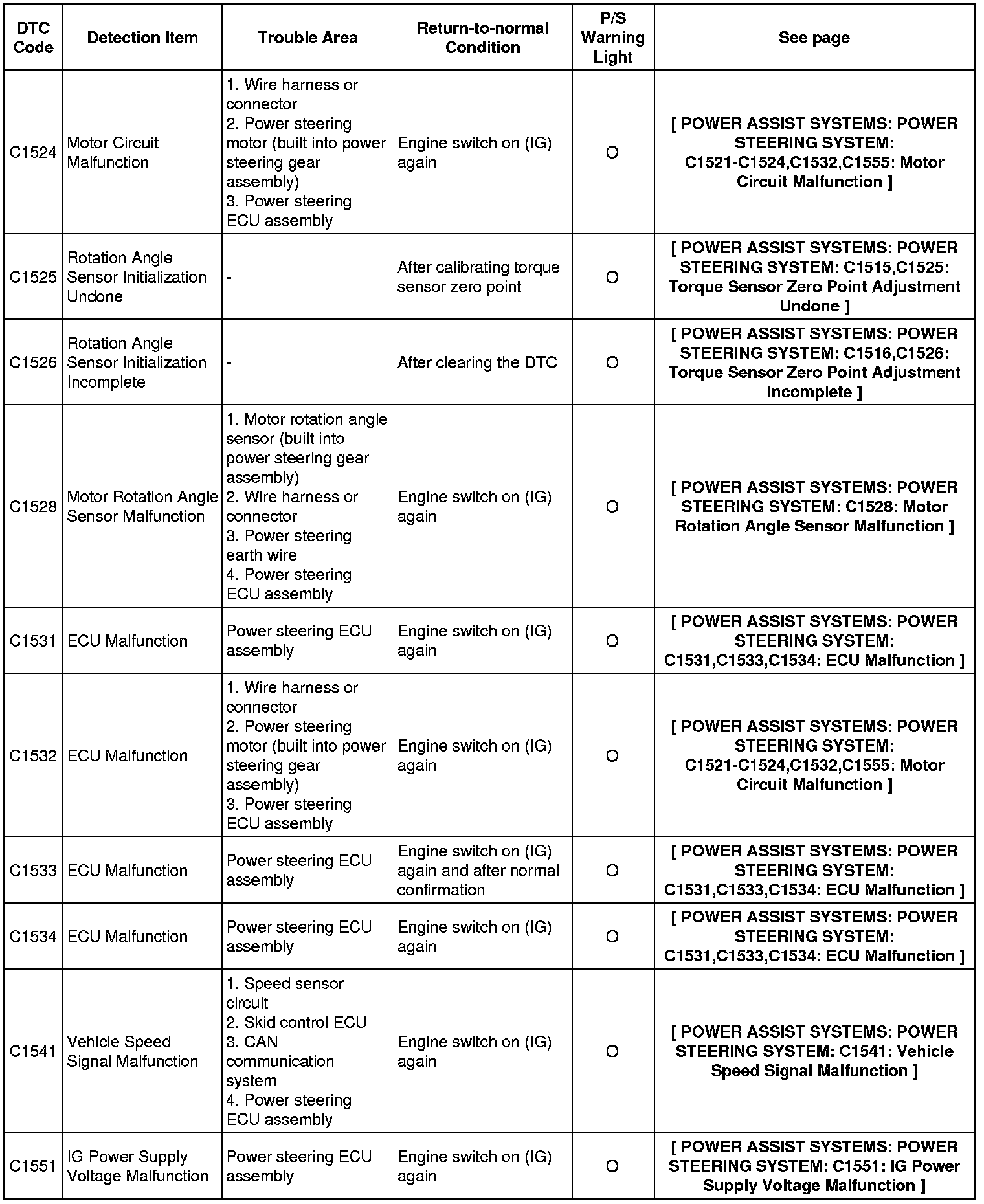

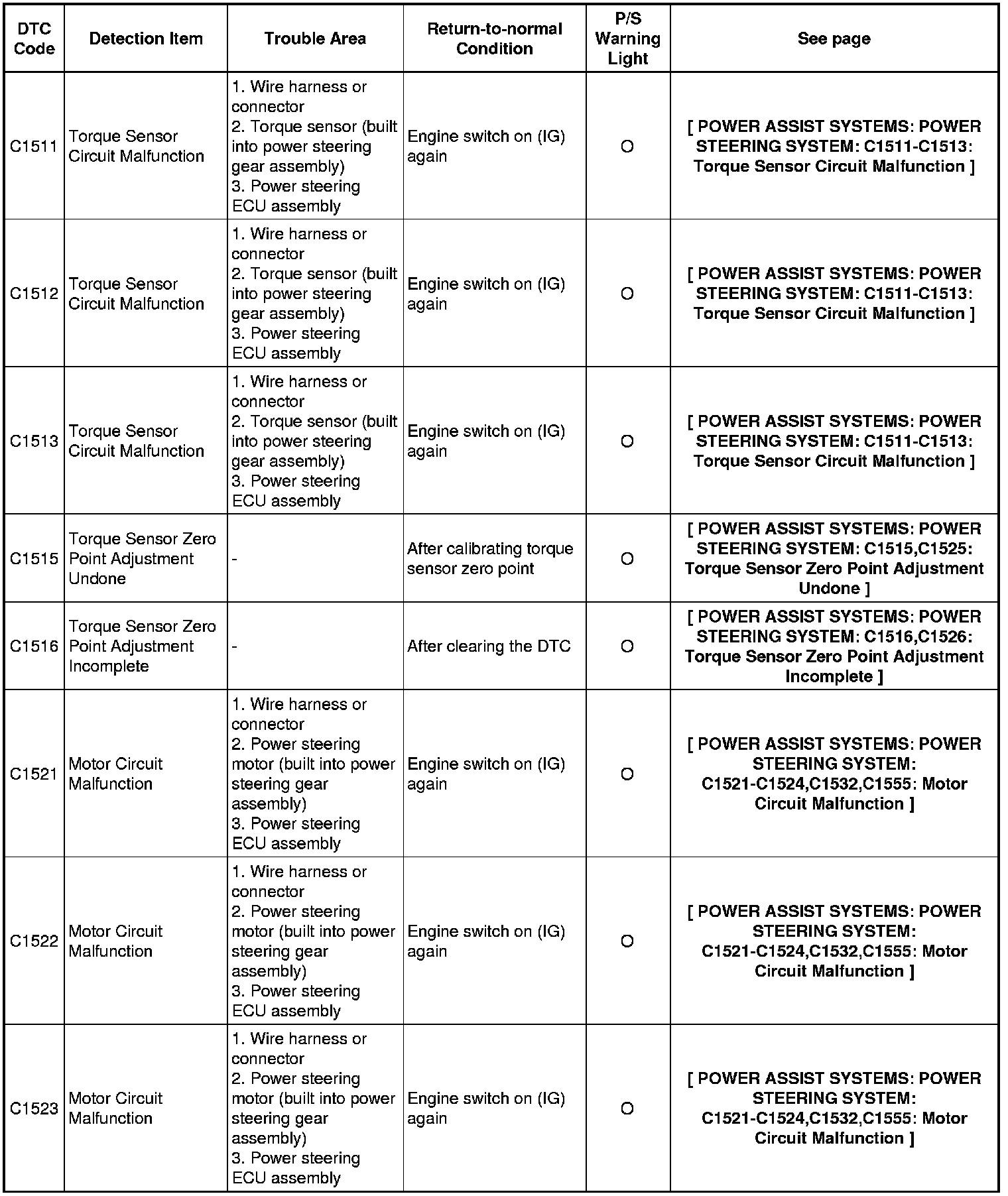

POWER ASSIST SYSTEMS: POWER STEERING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
HINT
If a trouble code is displayed during the DTC check, inspect the circuit listed for that code. For details of each code, refer to the relevant page listed under respective "See page" in the DTC chart.
Power Steering System
HINT
* o: Warning light comes on.
* X: Warning light goes off (normal reset).
