Seat Belt Tensioner: Description and Operation

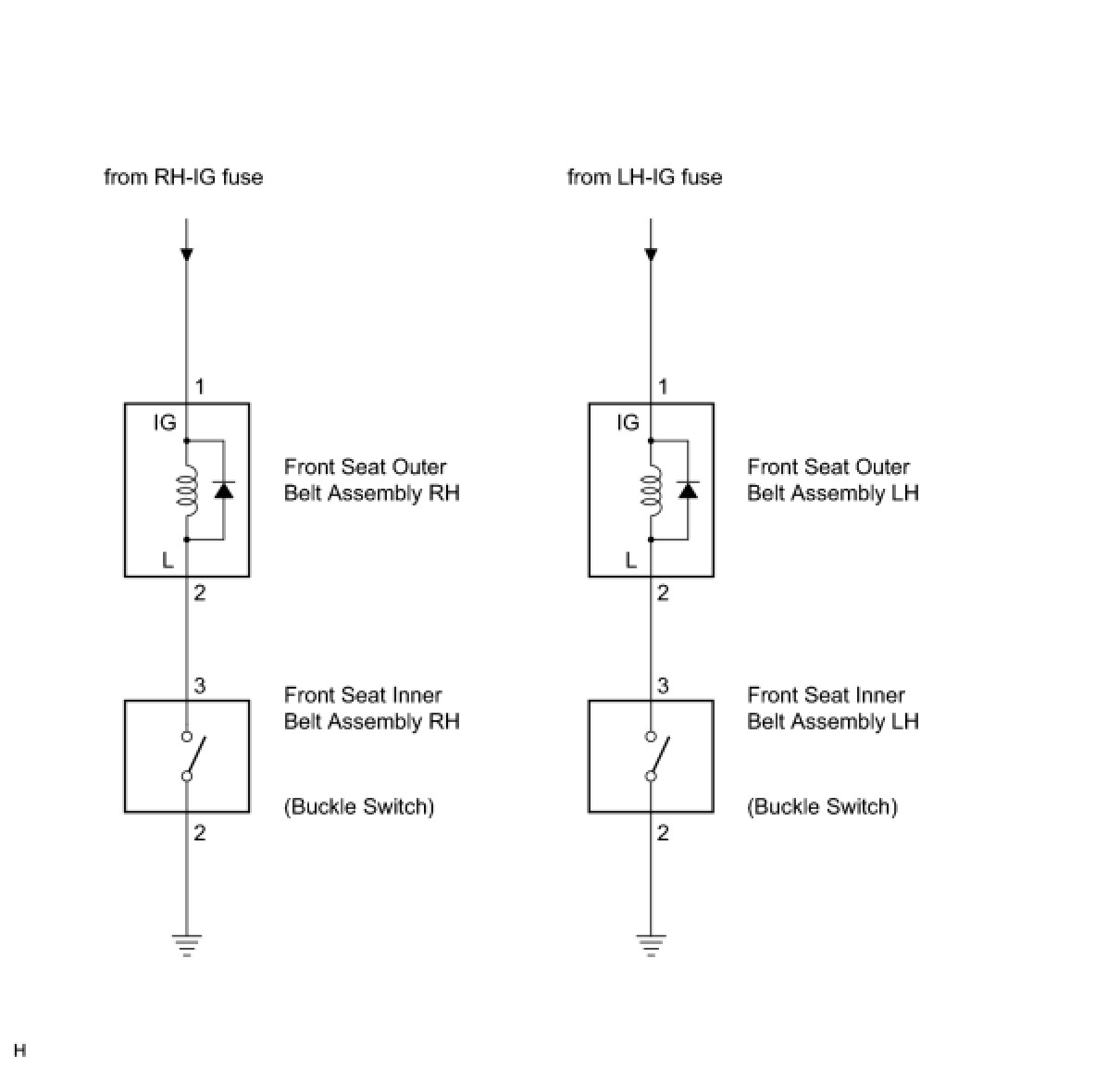

SEAT BELT: SEAT BELT TENSION REDUCER: SYSTEM DIAGRAM









SYSTEM DESCRIPTION

The seat belt tension reducer is adopted to the front seat belts. This mechanism can help reduce the belt tension applied to the occupants in the front seats when the seat belts are fastened.
