2GR-FSE ENGINE MECHANICAL: REAR CRANKSHAFT OIL SEAL: INSTALLATION

1. INSTALL ENGINE REAR OIL SEAL

(a) Apply MP grease to the lip of a new oil seal.

NOTICE:
Keep the lip free of foreign matter.

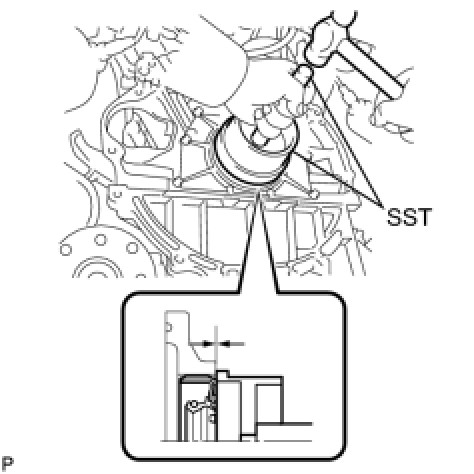

(b) Using SST and a hammer, tap in the oil seal until its surface is flush with the rear oil seal retainer edge.





SST : 09223-15030

SST : 09950-70010

09951-07150

NOTICE:
* Wipe off extra grease of the crankshaft.
* Keep the lip free of foreign matter.
* Do not tap on the oil seal at an angle.

2. INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY Installation

3. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY

HINT
* for 760E.
* Installation for 760H.

4. INSPECT FOR OIL LEAK
