2GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0365, P0367, P0368, P0390, P0392, P0393: Camshaft Position Sensor "B" Circuit (Bank 1)


DESCRIPTION

The exhaust camshaft's Variable Valve Timing (VVT) sensor consists of a magnet and MRE (Magneto Resistance Element).

The exhaust camshaft has a sensor plate with 3 teeth on its outer circumference.

When the exhaust camshaft rotates, changes occur in the air gaps between the 3 teeth and MRE, which affects the magnet. As a result, the resistance of the MRE material fluctuates. The VVT sensor converts the exhaust camshaft rotation data to pulse signals, uses the pulse signals to determine the camshaft angle, and sends it to the ECM.

The crank angle sensor plate has 34 teeth. The pickup coil generates 34 signals for each engine rotation. Based on combination of the VVT signals and NE signal, the ECM detects the crankshaft angle. Then the ECM uses this data to control fuel injection time and injection timing. Also, based on the NE signal, the ECM detects the engine speed.

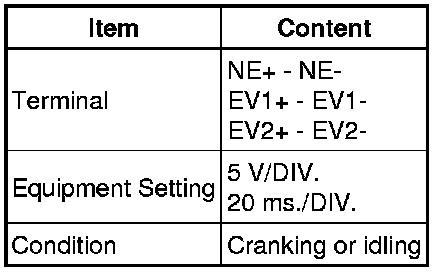

- Reference: Inspection using an oscilloscope





HINT

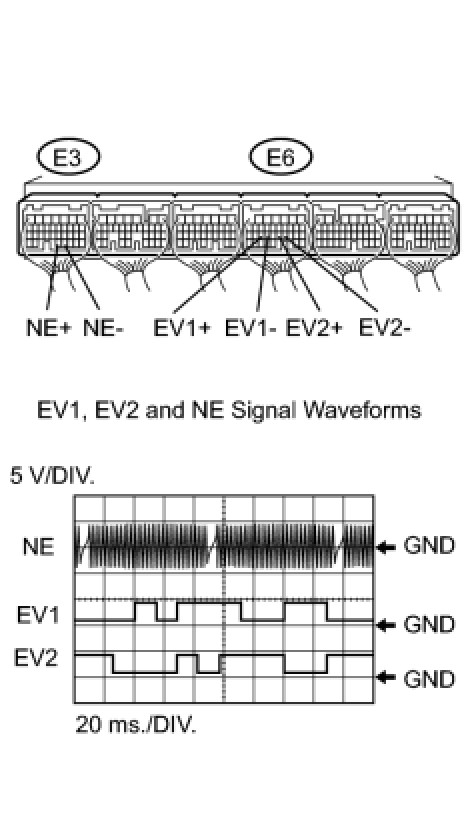

- The correct waveform is as shown.
- EV1+ and EV2+ stand for the VVT sensor signal, and NE+ stands for the CKP sensor signal.






MONITOR DESCRIPTION

If no signal is transmitted by the VVT sensor despite the engine revolving, or the rotations of the camshaft and the crankshaft are not synchronized, the ECM interprets this as a malfunction of the sensor.

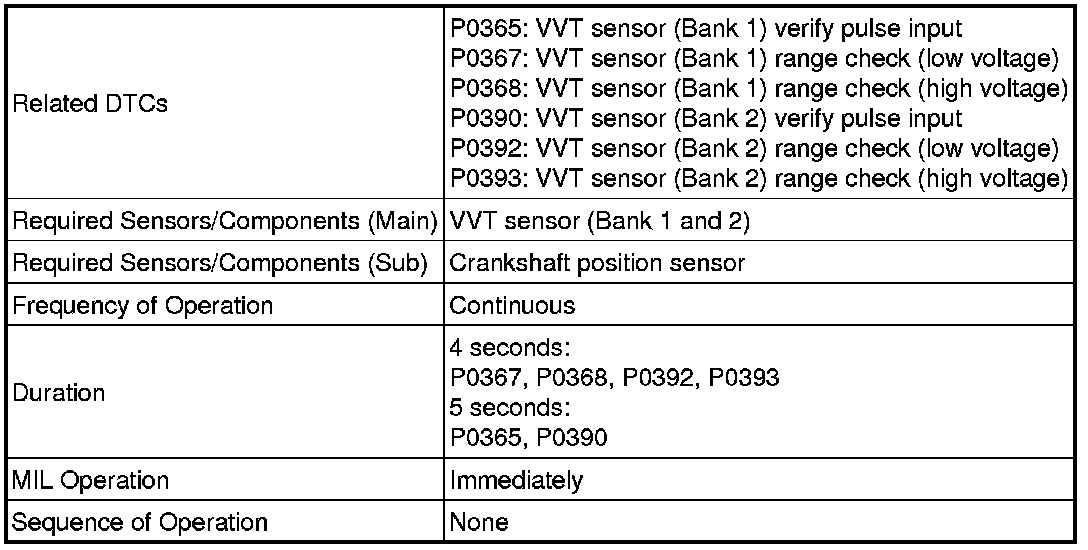

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS

All





P0365 and P0390

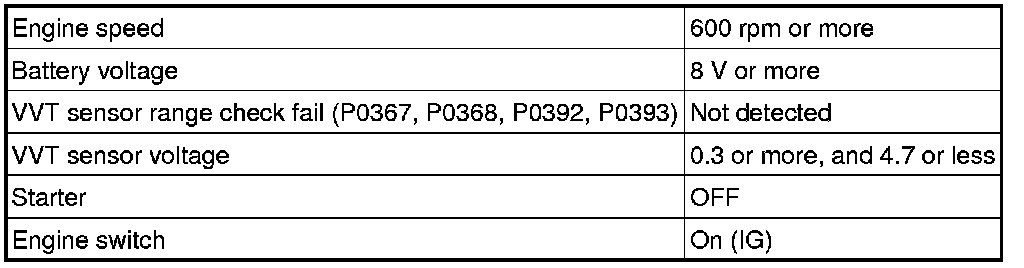

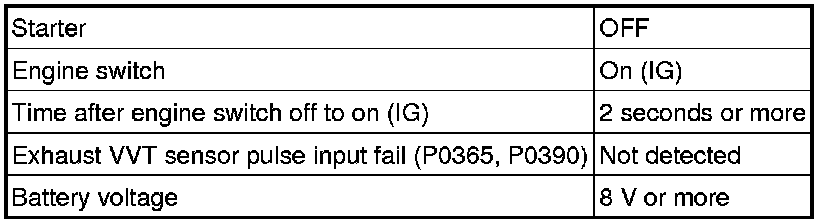

P0367, P0368, P0392 and P0393

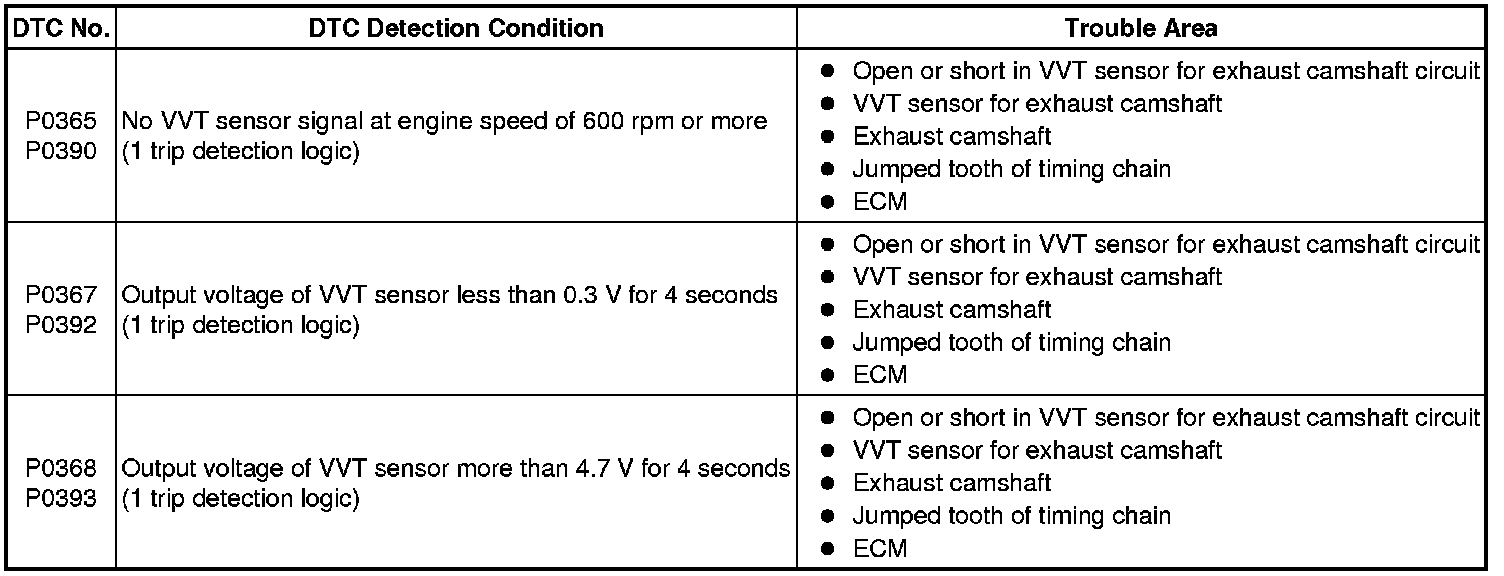

TYPICAL MALFUNCTION THRESHOLDS

P0365 and P0390





P0367 and P0392





P0368 and P0393





COMPONENT OPERATING RANGE





CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the engine switch on (IG) and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) DTC Check / Clear.

4. Turn the engine switch off and wait for 30 seconds.

5. Turn the engine switch on (IG) and turn the Techstream on [A].

6. Start the engine.

7. Idle the engine for 10 seconds or more [B].

8. Enter the following menus: Powertrain / Engine / Trouble Codes.

9. Read the DTC [C].

HINT
- If a DTC is output, the system is malfunctioning.
- If a DTC is not output, perform the following procedure.

10. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

11. Input the DTC: P0365, P0367, P0368, P0390, P0392 or P0393.

12. Check the DTC judgment result.





HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows INCOMPLETE or UNKNOWN, perform step [B] again.

13. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

14. Check the DTC judgment result.

HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.

15. If the test result is INCOMPLETE or UNKNOWN and no DTC is output, perform a universal trip and check for permanent DTCs DTC Check / Clear.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

WIRING DIAGRAM

Refer to DTC P0335 P0335.

INSPECTION PROCEDURE

HINT
- Bank 1 refers to the bank that includes the No. 1 cylinder*.
*: The No. 1 cylinder is the cylinder which is farthest from the transmission.
- Bank 2 refers to the bank that does not include the No. 1 cylinder.
- Read freeze frame data using Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.

PROCEDURE

1. CHECK ECM TERMINAL VOLTAGE

(a) Inspect the ECM using an oscilloscope.

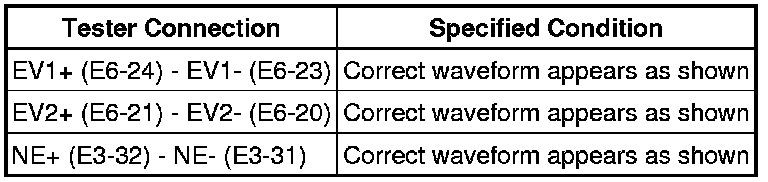

(1) While the engine is idling, check the waveform between the terminals of the ECM connector.

Standard voltage:





OK -- REPLACE ECM Removal
NG -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (SENSOR POWER SOURCE)

(a) Disconnect the E25 or E34 VVT sensor connector.

(b) Measure the voltage according to the value(s) in the table below.

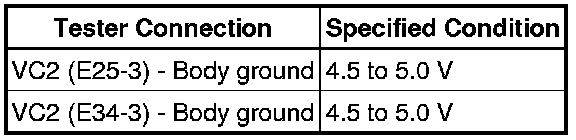

Standard voltage:





(c) Reconnect the VVT sensor connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (VVT SENSOR - ECM)

(a) Disconnect the E25 or E34 VVT sensor connector.

(b) Disconnect the E6 ECM connector.

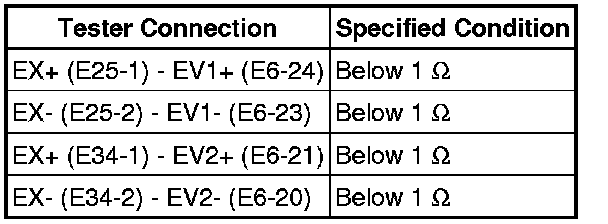

(c) Measure the resistance according to the value(s) in the table below.

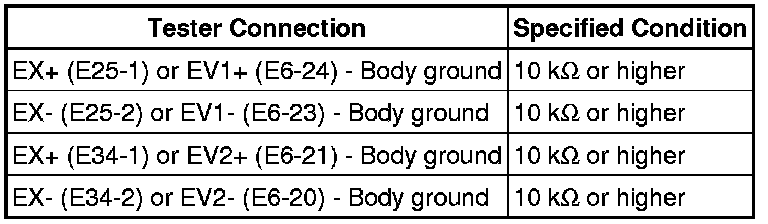

Standard resistance (Check for open):





Standard resistance (Check for short):





(d) Reconnect the VVT sensor connector.

(e) Reconnect the ECM connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. CHECK VVT SENSOR FOR EXHAUST CAMSHAFT (SENSOR INSTALLATION)

(a) Check the VVT sensor installation.





OK:

Sensor is installed correctly.

NG -- REPAIR OR REPLACE VVT SENSOR
OK -- Continue to next step.

5. CHECK EXHAUST CAMSHAFT

(a) Check the teeth of the camshaft.

NG -- REPLACE EXHAUST CAMSHAFT

OK -- REPLACE VVT SENSOR
