P0111

2GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0111: Intake Air Temperature Sensor Gradient Too High
P0111 - Intake Air Temperature Sensor Gradient Too High

DESCRIPTION





- The Intake Air Temperature (IAT) sensor, mounted on the Mass Air Flow (MAF) meter, monitors the IAT. The IAT sensor has a built in thermistor with a resistance that varies according to the temperature of the intake air. When the IAT is low, the resistance of the thermistor increases. When the temperature is high, the resistance drops. These variations in resistance are transmitted to the ECM as voltage changes (See Fig. 1).

- The IAT sensor is powered by a 5 V supply from the THA terminal of the ECM, via resistor R.

- Resistor R and the IAT sensor are connected in series. When the resistance value of the IAT sensor changes, according to changes in the IAT, the voltage at terminal THA also varies. Based on this signal, the ECM increases the fuel injection volume when the engine is cold to improve driveability.





MONITOR DESCRIPTION

After Warmed Engine Stop

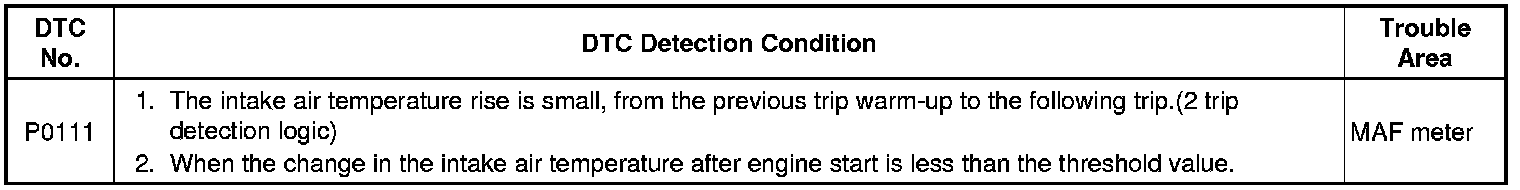

The ECM monitors the intake air temperature variation in the period from when the engine was warmed up on the previous trip until the next engine start. If the change in intake air temperature sensor output is less than the threshold, it is determined that a malfunction has occurred in the intake air temperature sensor. When this is detected, the MIL is illuminated and the DTC is stored.

After Cold Engine Start

The monitor runs when the engine is started cold after 5 hours or more have elapsed since the engine stopped. If the intake air temperature sensor output variation until the engine has warmed up completely is less than the threshold, it is determined in 2 consecutive driving cycles, the MIL is illuminated and the DTC is stored.

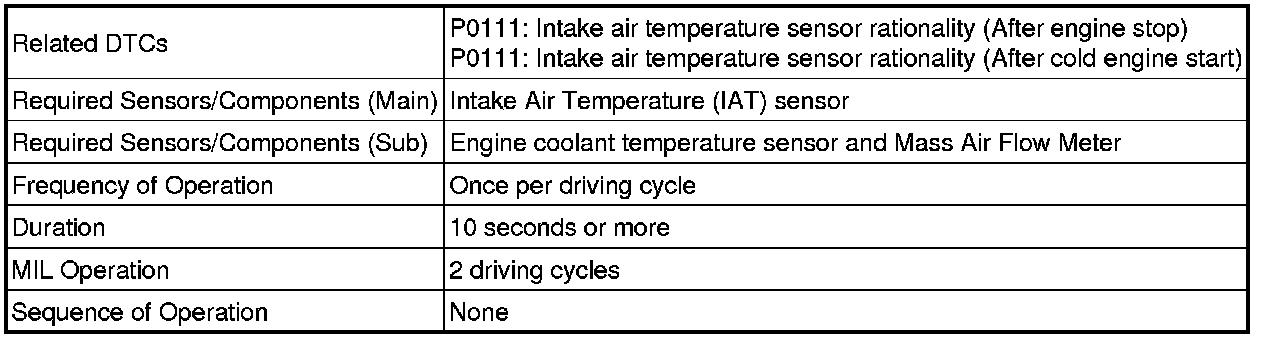

MONITOR STRATEGY

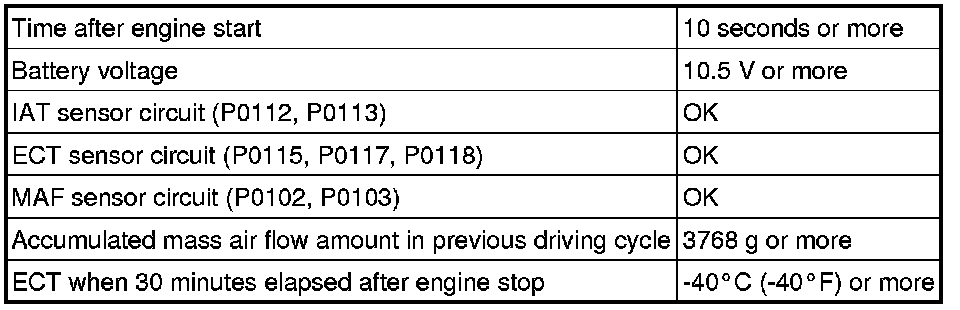

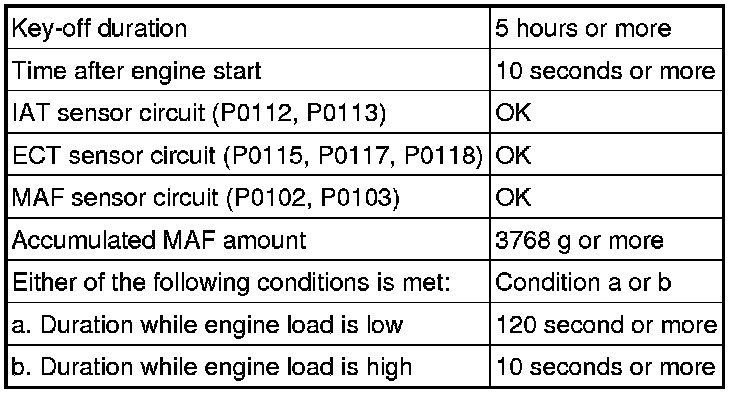

TYPICAL ENABLING CONDITIONS

All





After Engine Stop





After Cold Engine Start





TYPICAL MALFUNCTION THRESHOLDS

After Engine Stop





After Cold Engine Start





CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the engine switch on (IG) and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) DTC Check / Clear.

4. Turn the engine switch off and wait for 30 seconds.

5. Turn the engine switch on (IG) and turn the Techstream on [A].

6. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [B].

7. Idle the engine for 5 minutes or more [C].

HINT
During steps [A] through [C], if the change in the intake air temperature is below 1°C (2°F), the intake air temperature sensor (mass air flow meter sub-assembly) is malfunctioning. It is not necessary to continue this procedure.

8. Enter the following menus: Powertrain / Engine / Trouble Codes / Pending.

9. Read the pending DTC [D].

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

10. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

11. Input the DTC: P0111.

12. Check the DTC judgment result.





HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [E] and [F].

13. Drive the vehicle at 25 mph (40 km/h) or more for a total of 5 minutes or more [E].

CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

14. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

15. Check the DTC judgment result [F].

HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.

16. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs DTC Check / Clear.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

WIRING DIAGRAM

Refer to DTC P0112 P0112.

INSPECTION PROCEDURE

PROCEDURE

1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0111)

(a) Connect Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the tester on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read DTCs.

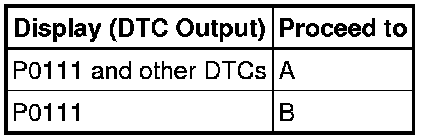

Result:





HINT
If any DTCs other than P0111 are output, troubleshoot those DTCs first.

B -- REPLACE MASS AIR FLOW METER

A -- GO TO DTC CHART
