SPECIFICATIONS: AXLE AND DIFFERENTIAL: SERVICE DATA

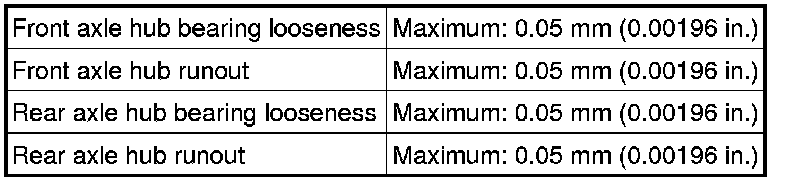

Axle

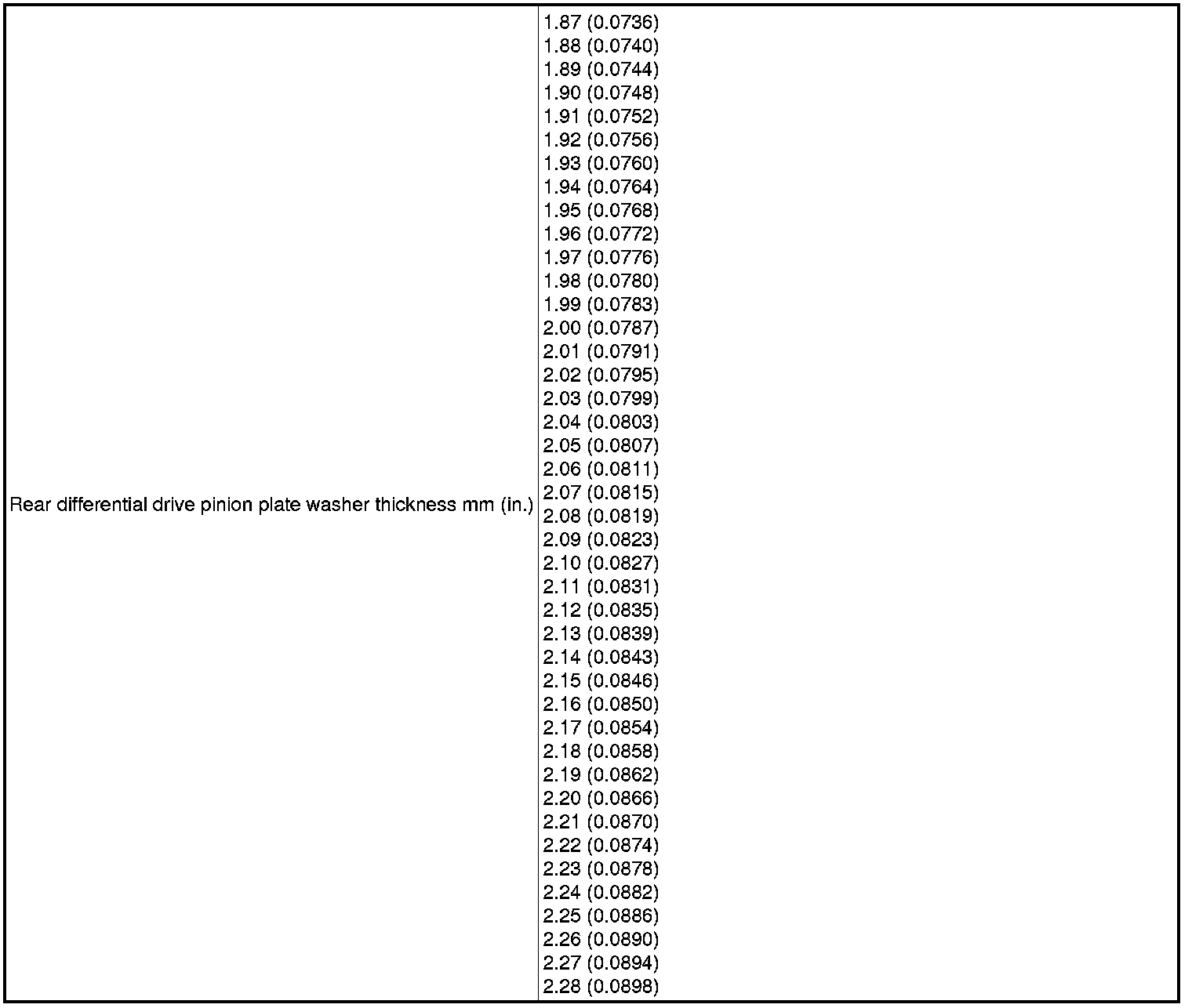

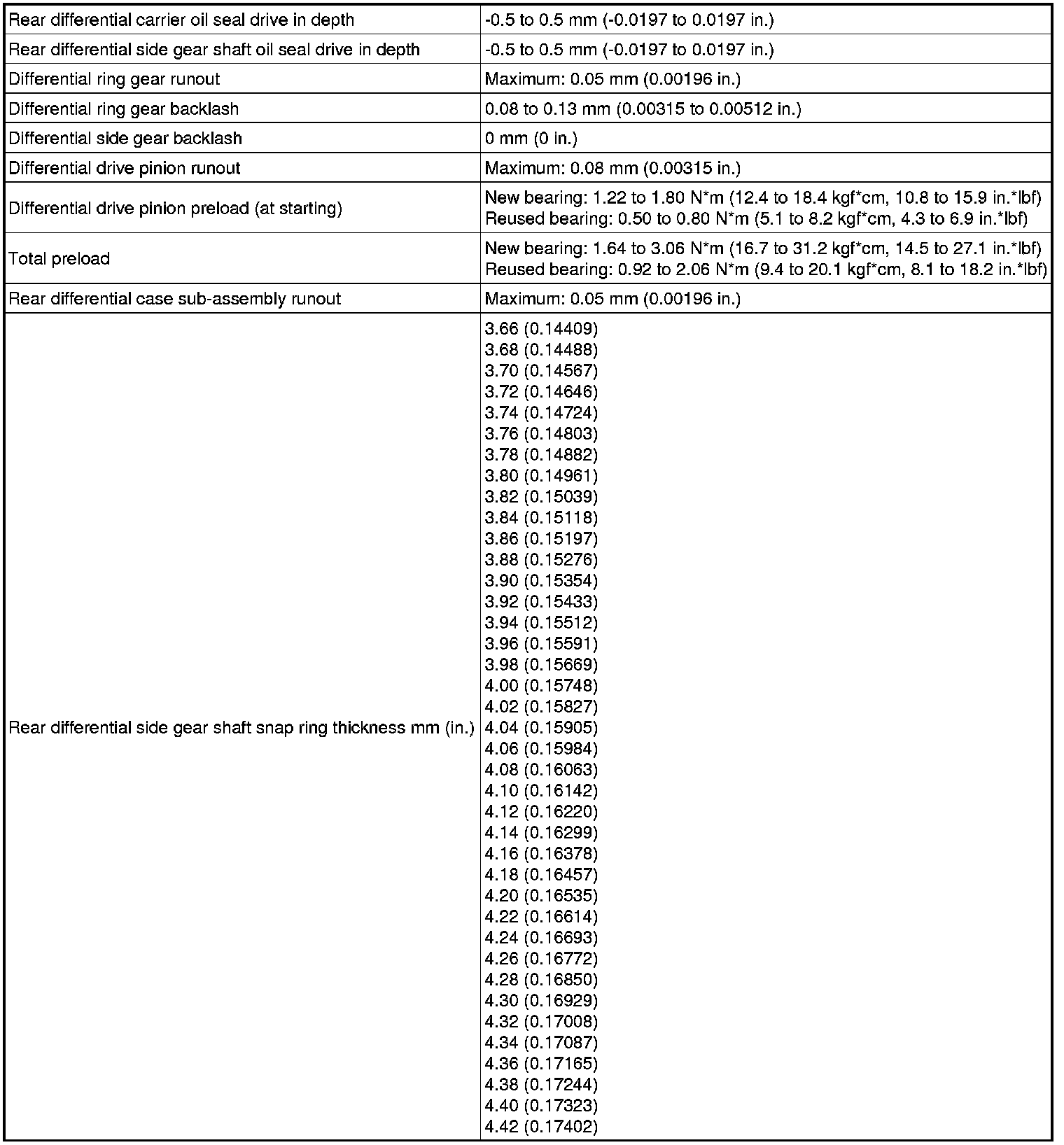

Differential (for 2GR-FSE)

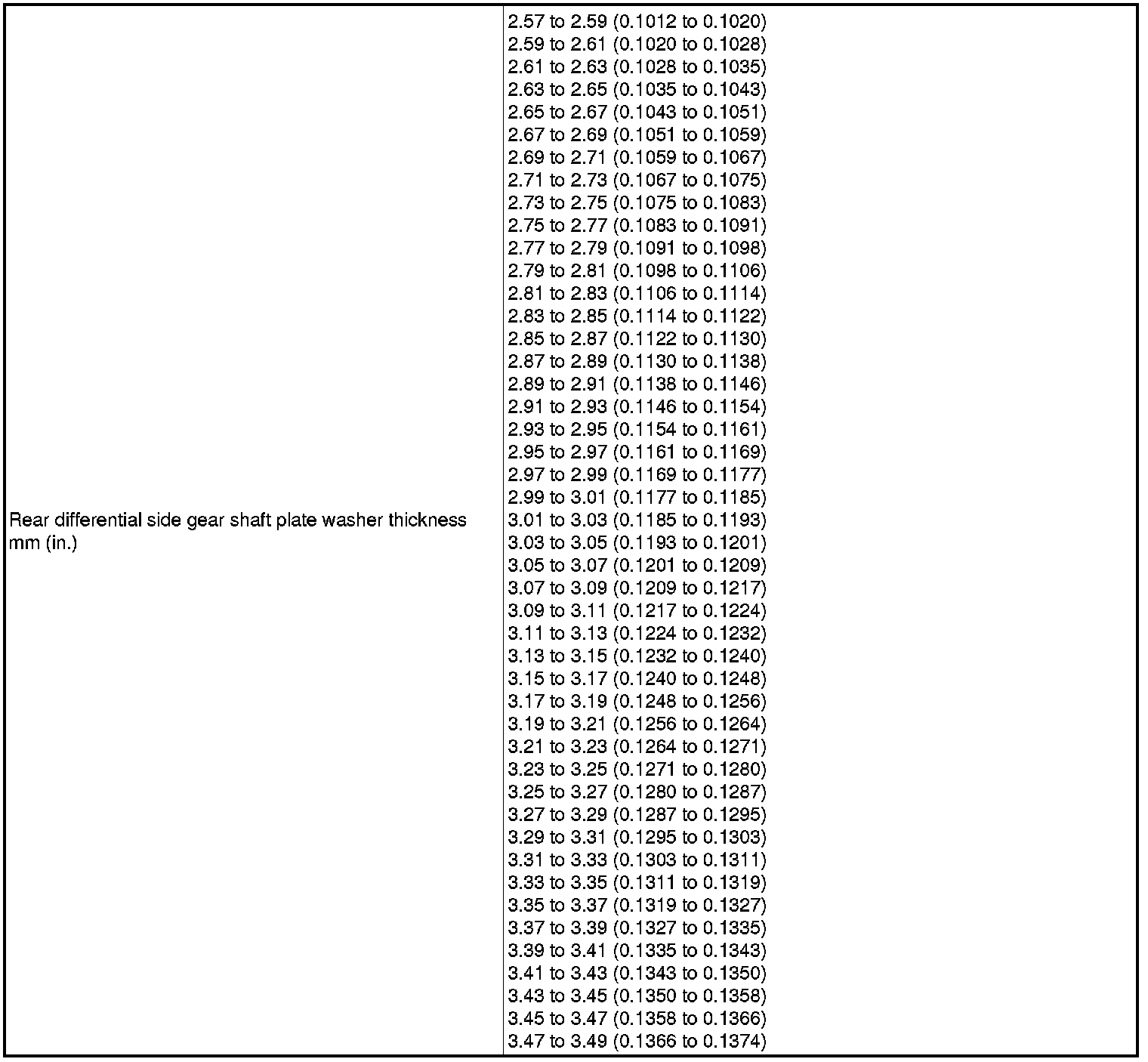

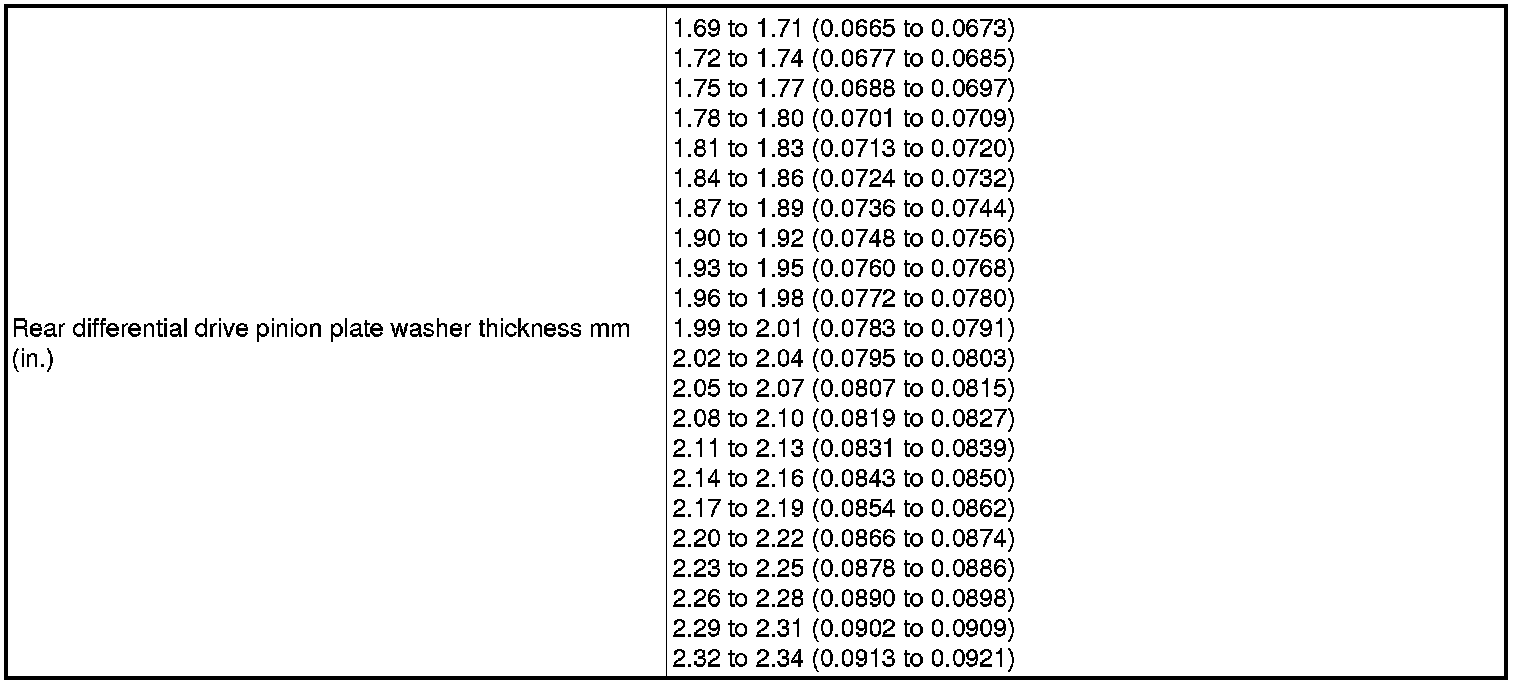

Differential (for 4GR-FSE)
