Service Data





SPECIFICATIONS: A960E AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA

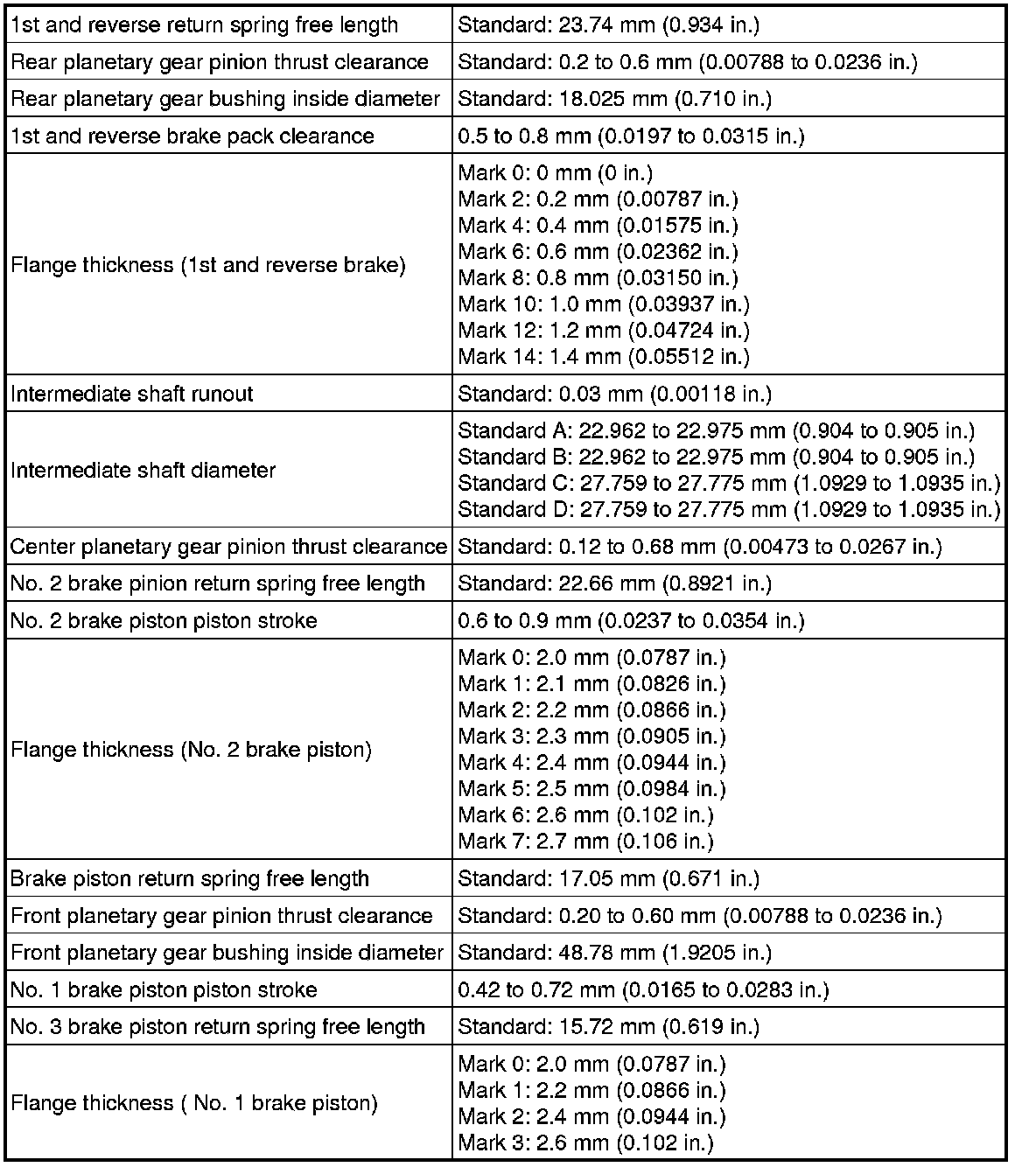

Automatic Transmission Unit:

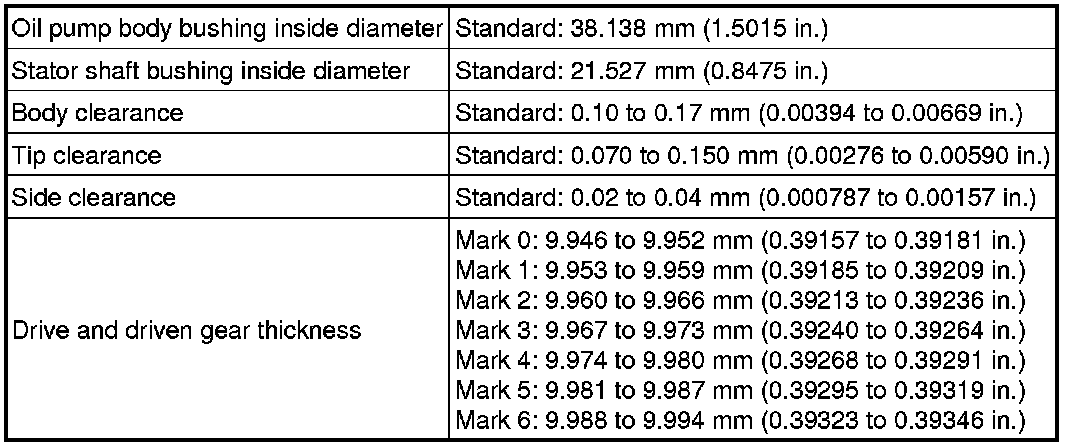

Oil Pump:

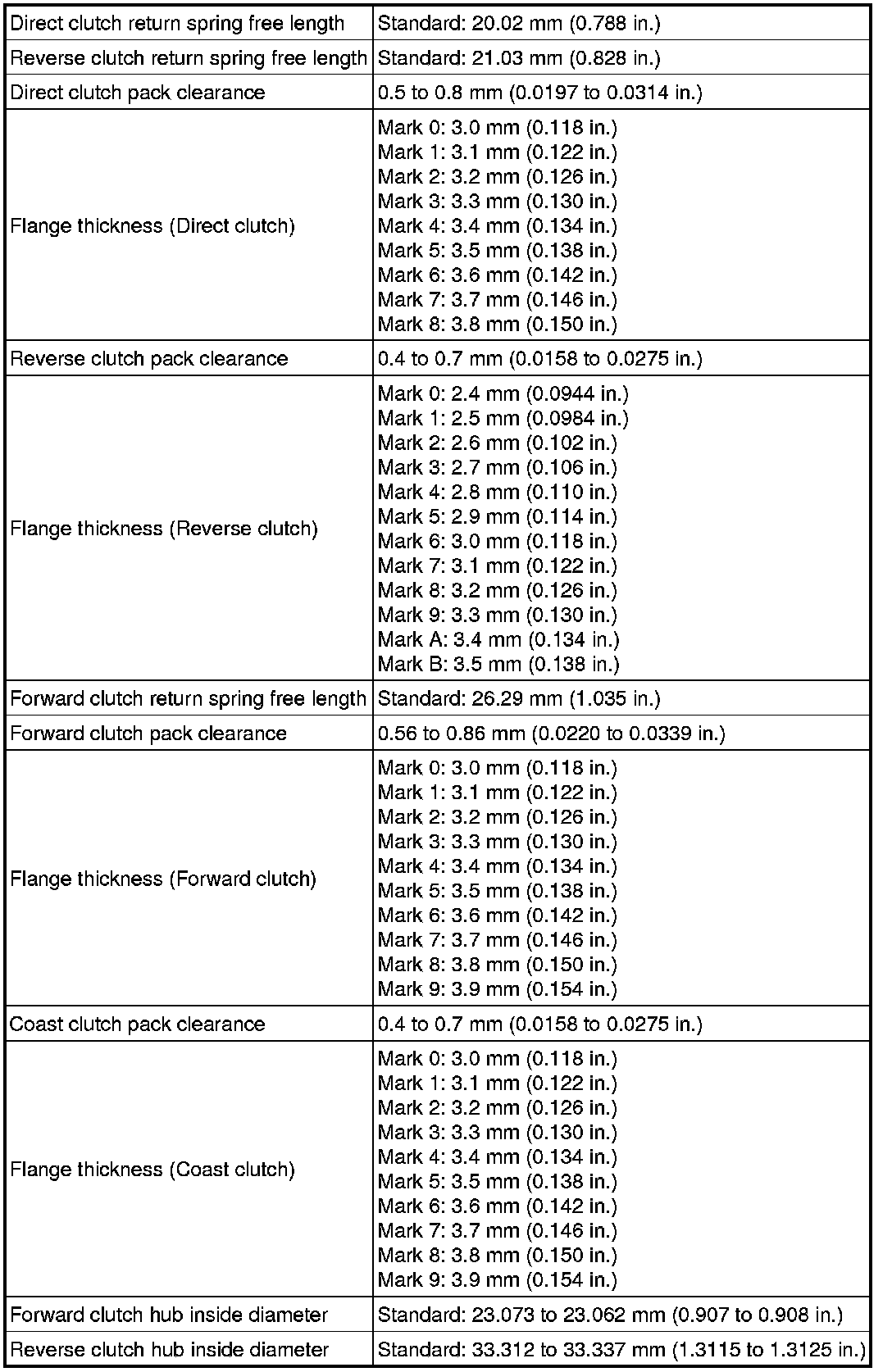

Clutch Drum And Input Shaft:

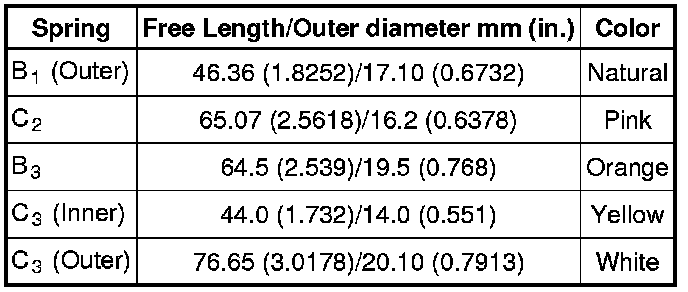

Accumulator:

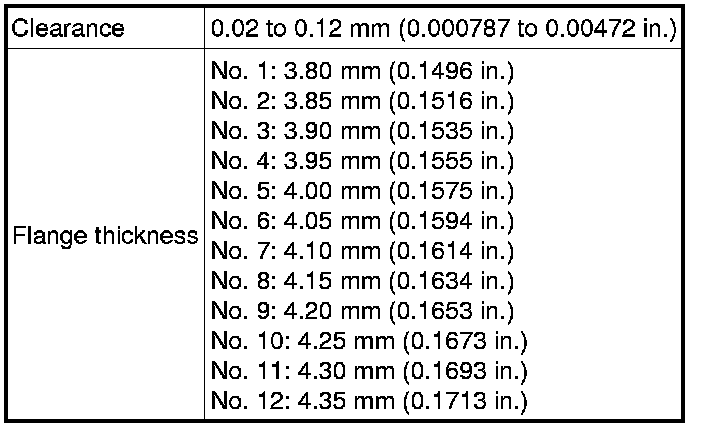

Output Shaft Bearing:
