Fuel Gauge Sender: Testing and Inspection

4GR-FSE FUEL: FUEL SENDER GAUGE ASSEMBLY: INSPECTION

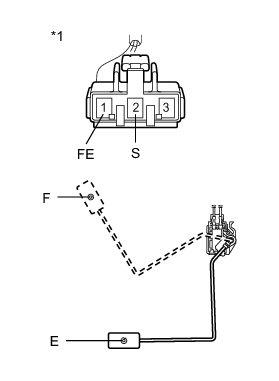

1. INSPECT FUEL SENDER GAUGE





Text in Illustration





(a) Remove the fuel sender gauge.

(b) Check that the float moves smoothly between F and E.

(c) Measure the resistance between the terminals 2 (S) and 1 (FE) of connector according to the value(s) in the table below.

Standard resistance:





If the value is not as specified, replace the fuel sender gauge.

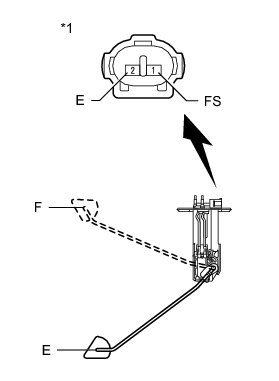

2. INSPECT FUEL SENDER GAUGE ASSEMBLY





Text in Illustration





(a) Remove the fuel sender gauge assembly.

(b) Check that the float moves smoothly between F and E.

(c) Measure the resistance between the terminals 1 (FS) and 2 (E) according to the value(s) in the table below.

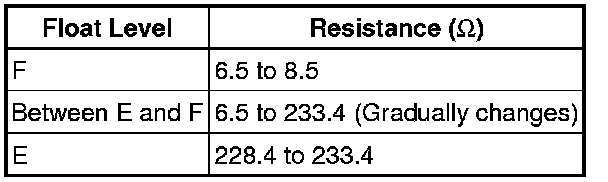

Standard resistance:





If the value is not as specified, replace the fuel sender gauge assembly.
