Radiator Cooling Fan Motor Relay: Locations

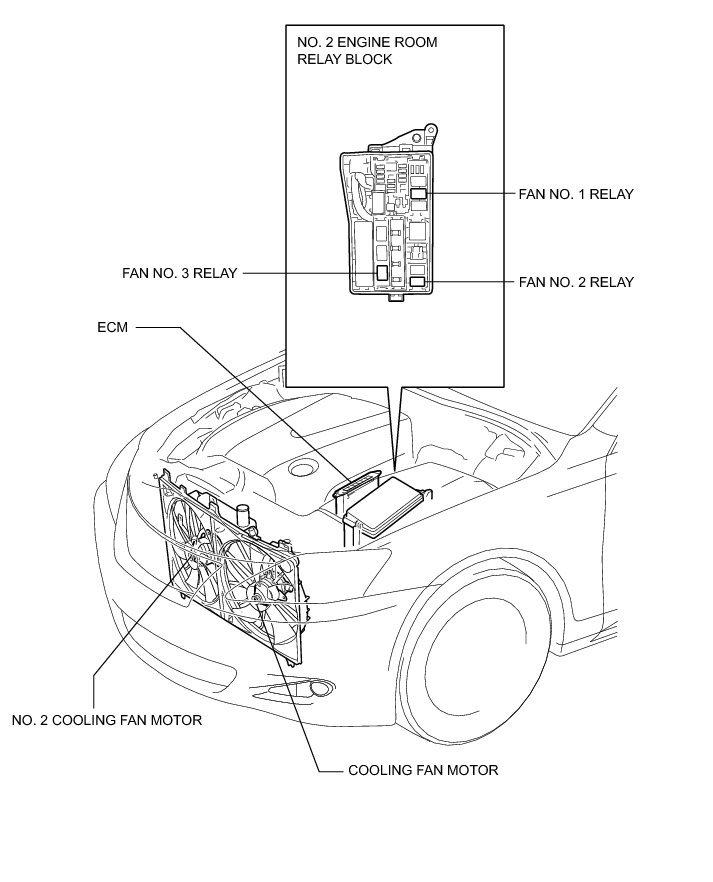

4GR-FSE COOLING: COOLING FAN SYSTEM: PARTS LOCATION
Engine Room R/B No.2 Assembly, Engine Room J/B No.2 Assembly - Left Engine Compartment:
