LEXUS ENFORM System

CELLULAR COMMUNICATION: LEXUS ENFORM SYSTEM: SYSTEM DIAGRAM








CELLULAR COMMUNICATION: LEXUS ENFORM SYSTEM: SYSTEM DESCRIPTION

1. DESCRIPTION

LEXUS ENFORM is a service*1 that allows the vehicle to receive information from the XM radio satellite and the call center and links the information to the navigation system. LEXUS ENFORM permits the driver to use the received information, such as a destination information, weather information, sports news and stock information on the navigation system multi display. The equipment for receiving this service is installed as standard.*2

LEXUS ENFORM provides the following services: Destination Assist, eDestination, Lexus Insider, XM NavTraffic, XM NavWeather, XM Stocks, XM Sports, Maintenance Reminder, Voice Command, and Safety Connect. For details about Safety Connect, refer to Safety Connect Safety Connect System.

LEXUS ENFORM consists mainly of a LEXUS ENFORM applicable navigation system (multi display), Telematics transceiver (data communication module), XM antenna, telephone antenna, and microphone.

HINT
* *1: LEXUS ENFORM is a service available in the continental U.S., excluding Alaska and Hawaii. In addition, Canada, Mexico and unincorporated territories of the U.S. such as Puerto Rico are not included in the service area.
* *2: The LEXUS ENFORM service requires an XM satellite radio subscription and a Safety Connect subscription. XM NavTraffic and XM NavWeather both require separate subscriptions to receive their services.

2. SYSTEM FUNCTION

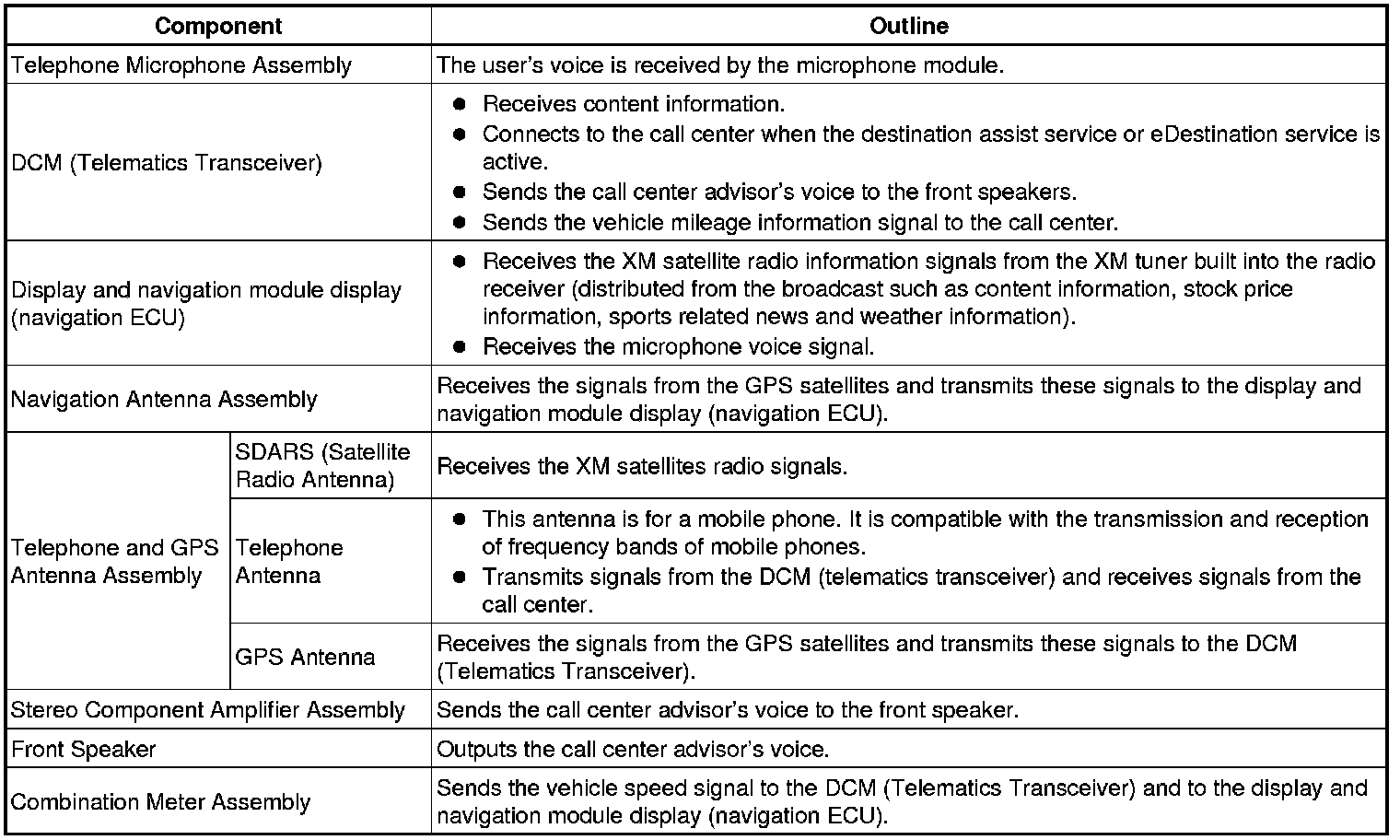

FUNCTION OF MAIN COMPONENTS

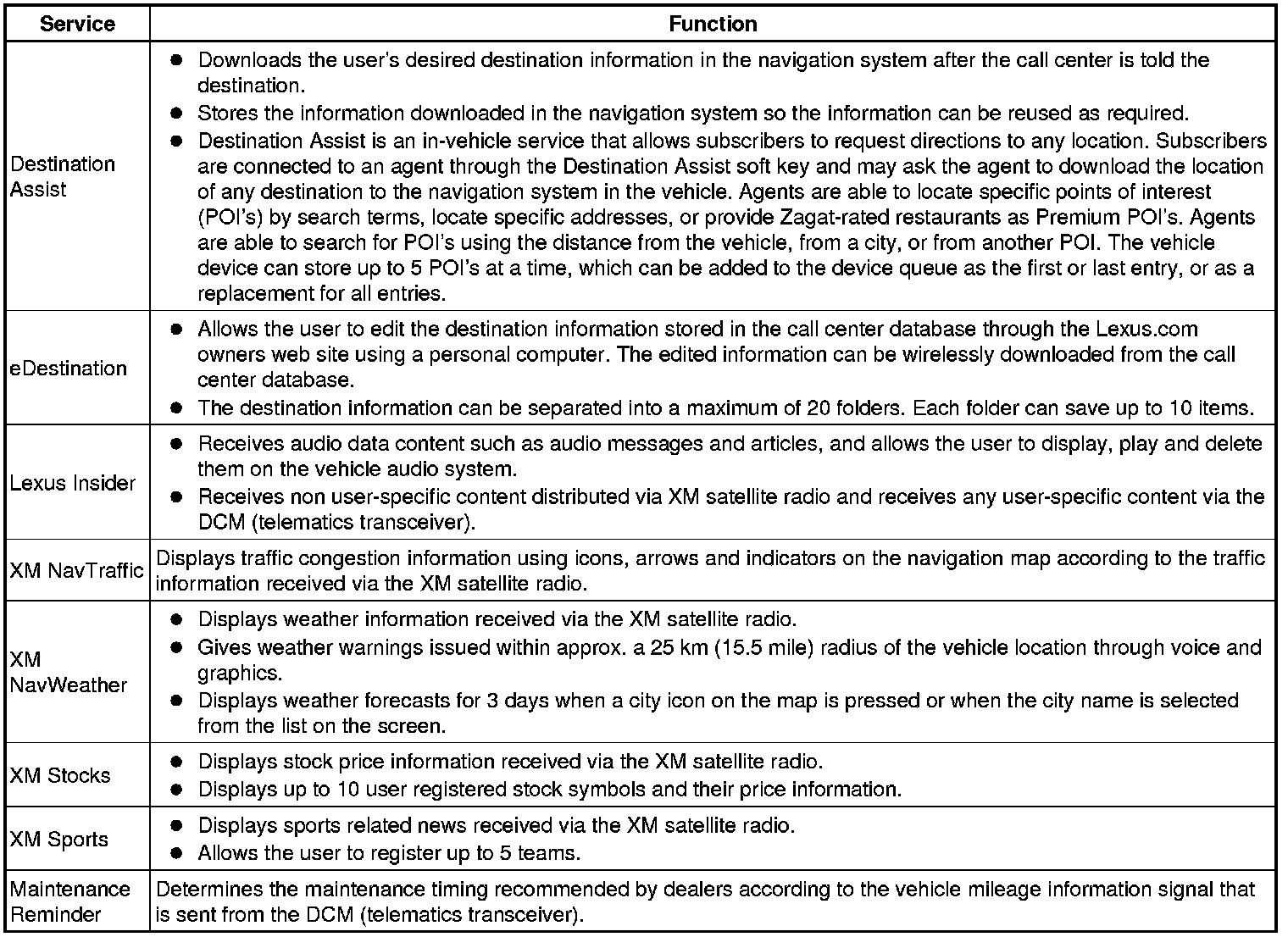

3. SERVICES FUNCTION
