C1552

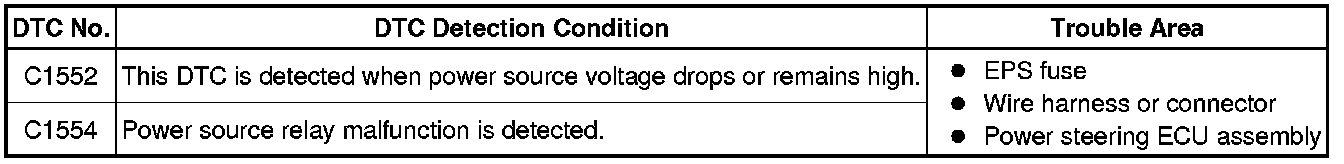

POWER ASSIST SYSTEMS: POWER STEERING SYSTEM: C1552,C1554: PIG Power Supply Voltage Malfunction


DESCRIPTION

This circuit supplies power to drive the power steering motor.

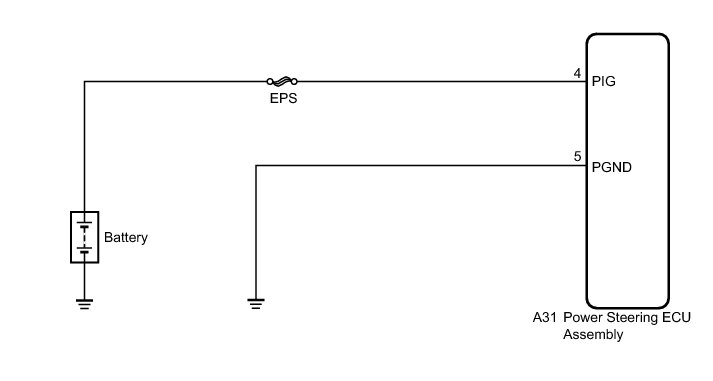

WIRING DIAGRAM





INSPECTION PROCEDURE

HINT
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (POWER STEERING ECU ASSEMBLY - BATTERY)

(a) Disconnect the A31 connector from the power steering ECU assembly.





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (POWER STEERING ECU ASSEMBLY - BODY GROUND)

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





NOTICE:
If replacing the power steering ECU assembly, initialize the rotation angle sensor value and calibrate the torque sensor zero point Programming and Relearning.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE POWER STEERING ECU ASSEMBLY Removal
