HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM: B1497/97: BUS IC Communication Malfunction

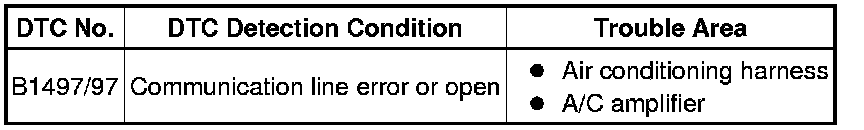

B1497/97 - BUS IC Communication Malfunction

DESCRIPTION

The air conditioning harness connects the A/C amplifier and each servo. The A/C amplifier supplies power and sends operation instructions to each servo through the air conditioning harness. Each servo sends the damper position information to the A/C amplifier.

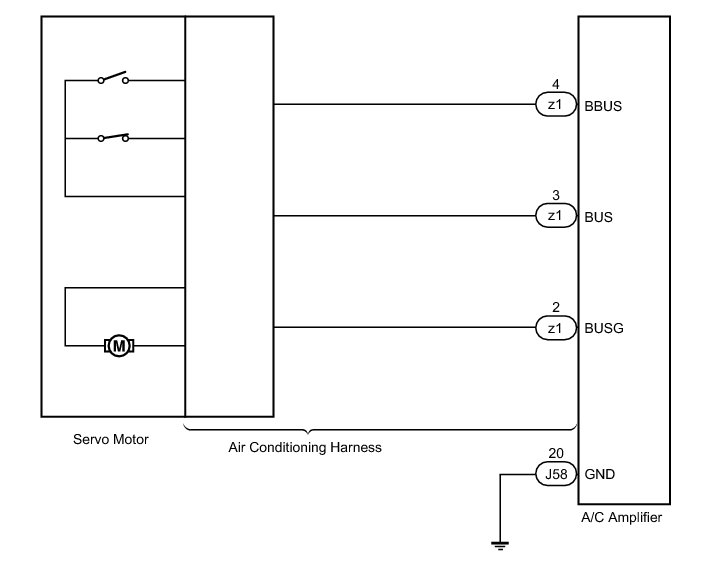

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (A/C AMPLIFIER - BODY GROUND)

(a) Remove the A/C amplifier.

(b) Disconnect the A/C amplifier connector.





(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. INSPECT A/C AMPLIFIER

(a) Reconnect the A/C amplifier connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPLACE A/C AMPLIFIER Removal
OK -- Continue to next step.

3. INSPECT A/C AMPLIFIER

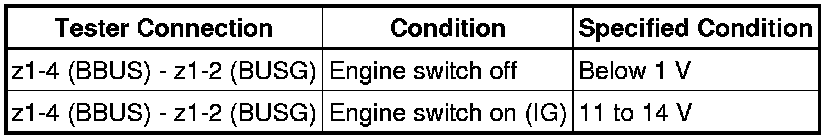

(a) Measure the voltage according to the value(s) in the table below.





Standard Voltage:





Text in Illustration





NG -- REPLACE A/C AMPLIFIER Removal

OK -- REPLACE AIR CONDITIONING HARNESS Disassembly
