Heated Glass Element Switch: Testing and Inspection

WINDSHIELD / WINDOWGLASS: WINDSHIELD DEICER SWITCH: INSPECTION

1. INSPECT FRONT WIPER DEICER SWITCH

(a) Disconnect the front wiper deicer switch connector.





(b) Measure the voltage and resistance according to the value(s) in the table below.

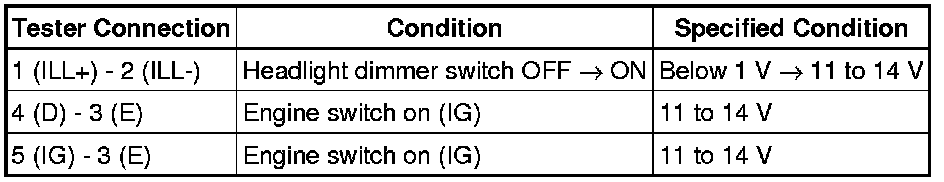

Standard Voltage:





Standard Resistance:





(c) Reconnect the front wiper deicer connector.





(d) Measure the voltage and resistance according to the value(s) in the table below.

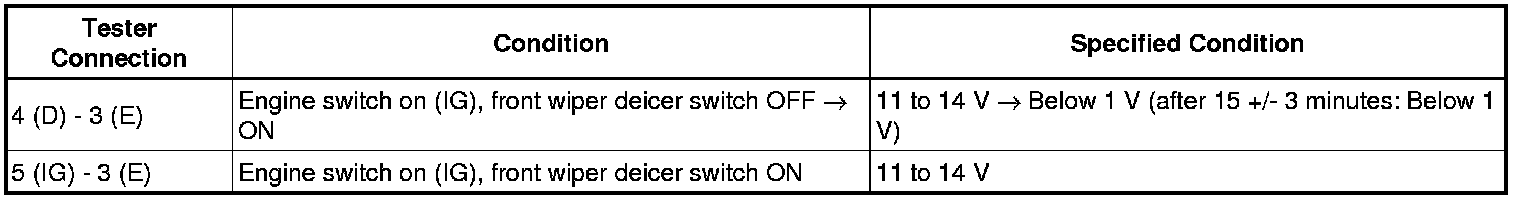

Standard Voltage:





Text in Illustration





If the result is not as specified, replace the front wiper deicer switch.
