Removal





BRAKE CONTROL: FRONT SPEED SENSOR (for 2WD): REMOVAL

HINT
* Use the same procedures for the RH side and LH side.
* The procedures listed below are the LH side.
* The front speed sensor is a component of the front axle hub sub-assembly. If the front speed sensor needs to be replaced, replace the front axle hub sub-assembly.
* The sensor rotor is a component of the front axle hub sub-assembly. If the sensor rotor needs to be replaced, replace the front axle hub sub-assembly.

1. REMOVE FRONT WHEEL

2. DISCONNECT FRONT SPEED SENSOR

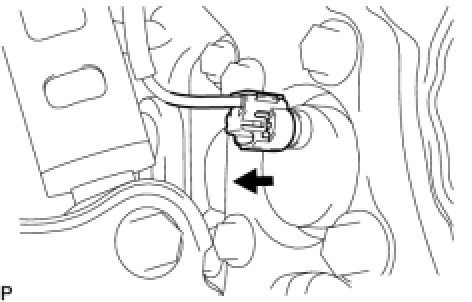

(a) Disconnect the front speed sensor connector.





3. SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY Removal

4. REMOVE FRONT DISC Disassembly

5. REMOVE FRONT AXLE HUB SUB-ASSEMBLY Removal
