METER: STEERING PAD SWITCH: INSTALLATION

1. INSTALL STEERING PAD SWITCH ASSEMBLY

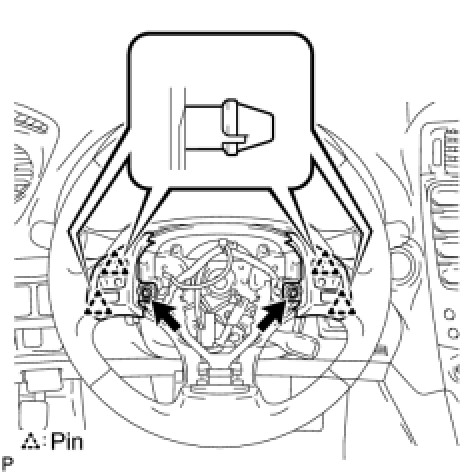

(a) Engage the 4 pins.





(b) Install the steering pad switch assembly with the 2 screws.

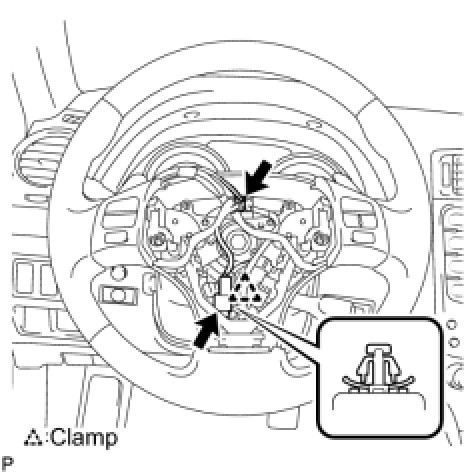

(c) Connect the 2 connectors and engage the clamp.





2. INSTALL STEERING PAD Installation

3. INSTALL NO. 3 LOWER STEERING WHEEL COVER Installation

4. INSTALL NO. 2 LOWER STEERING WHEEL COVER Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

6. INSPECT STEERING PAD Installation

7. INSPECT SRS WARNING LIGHT
