Seat Belt Warning System (w/ Occupant Classification System)

SEAT BELT: SEAT BELT WARNING SYSTEM (w/ Occupant Classification System): TERMINALS OF ECU

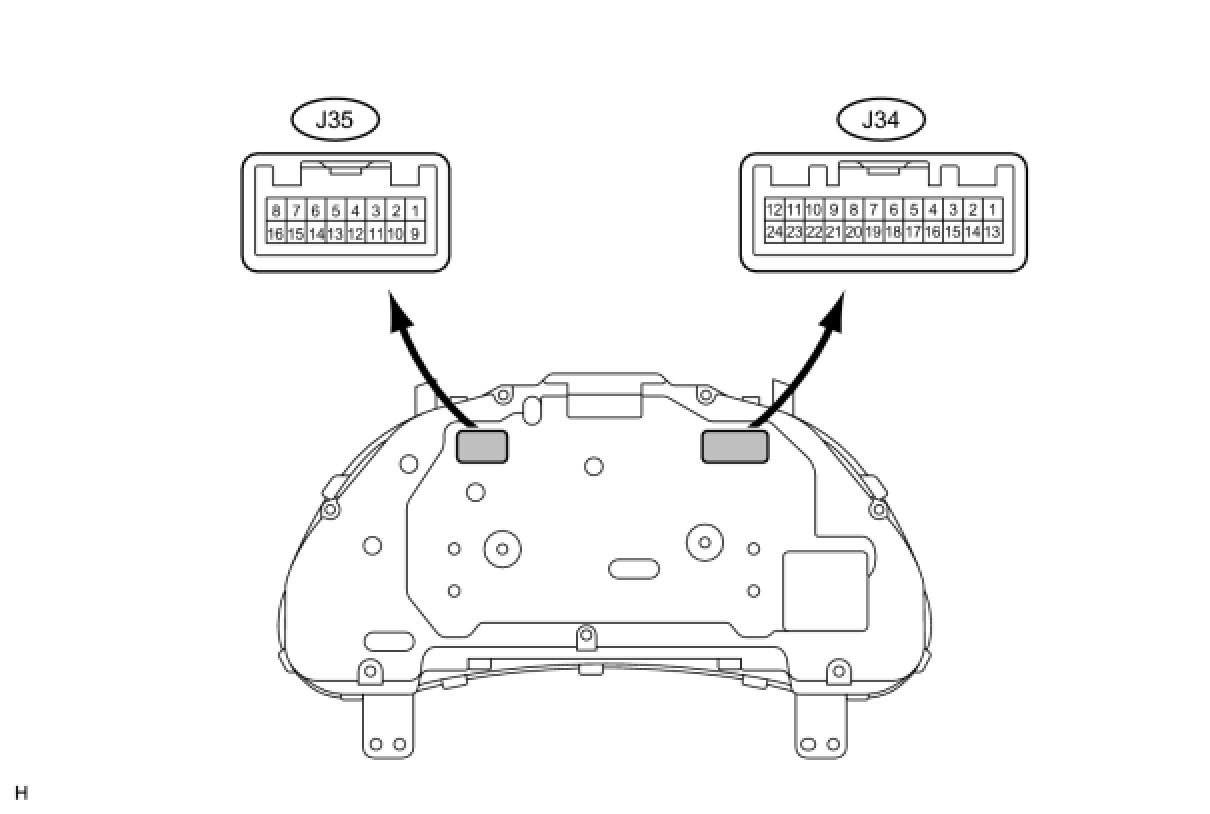

1. CHECK COMBINATION METER

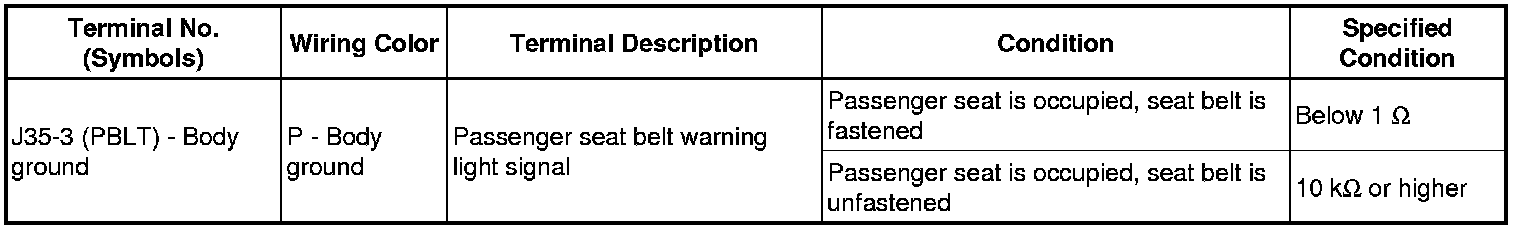

(a) Measure the resistance according to the value(s) in the table below.





If the result is not as specified, the meter may have a malfunction.

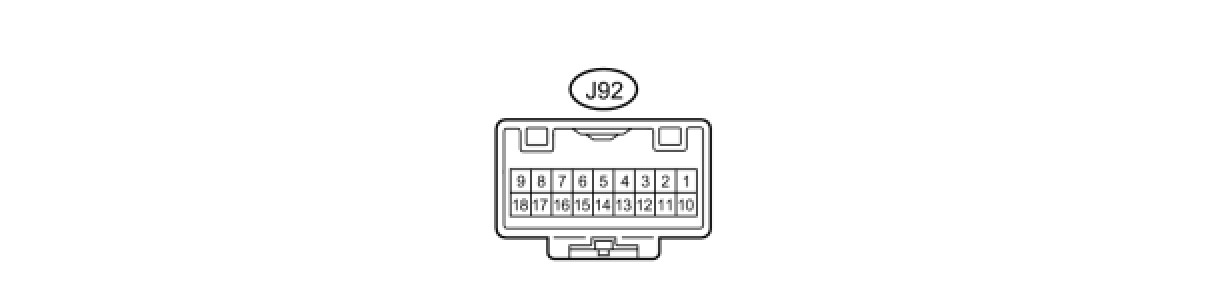

2. CHECK INTEGRATION CONTROL AND PANEL (w/o NAVIGATION SYSTEM)

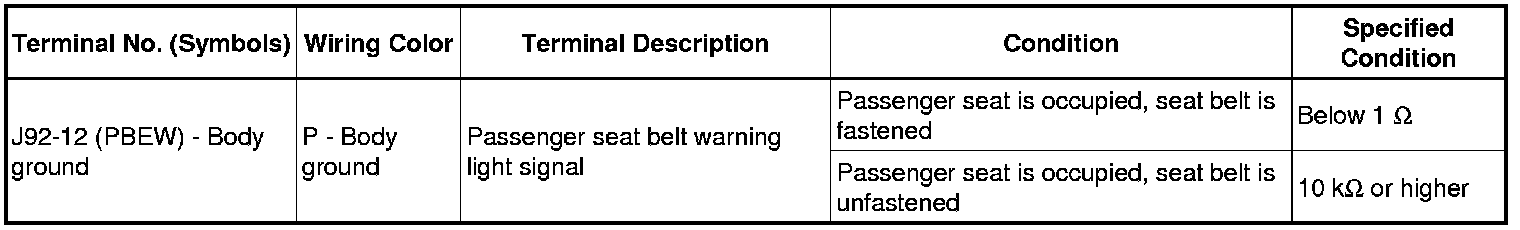

(a) Measure the resistance according to the value(s) in the table below.





If the result is not as specified, the panel may have a malfunction.

3. CHECK CLOCK (w/ NAVIGATION SYSTEM)

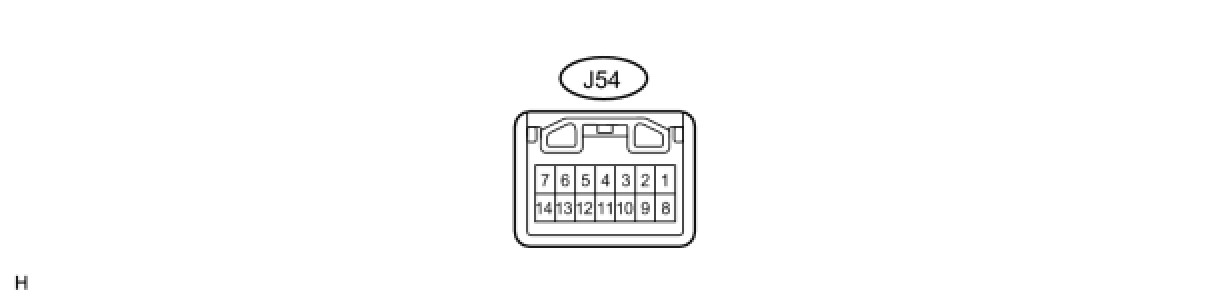

(a) Measure the resistance according to the value(s) in the table below.





If the result is not as specified, the clock may have a malfunction.

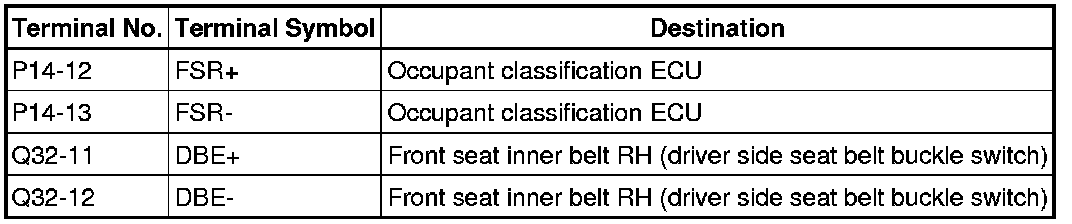

4. CENTER AIRBAG SENSOR









5. CHECK OCCUPANT CLASSIFICATION ECU

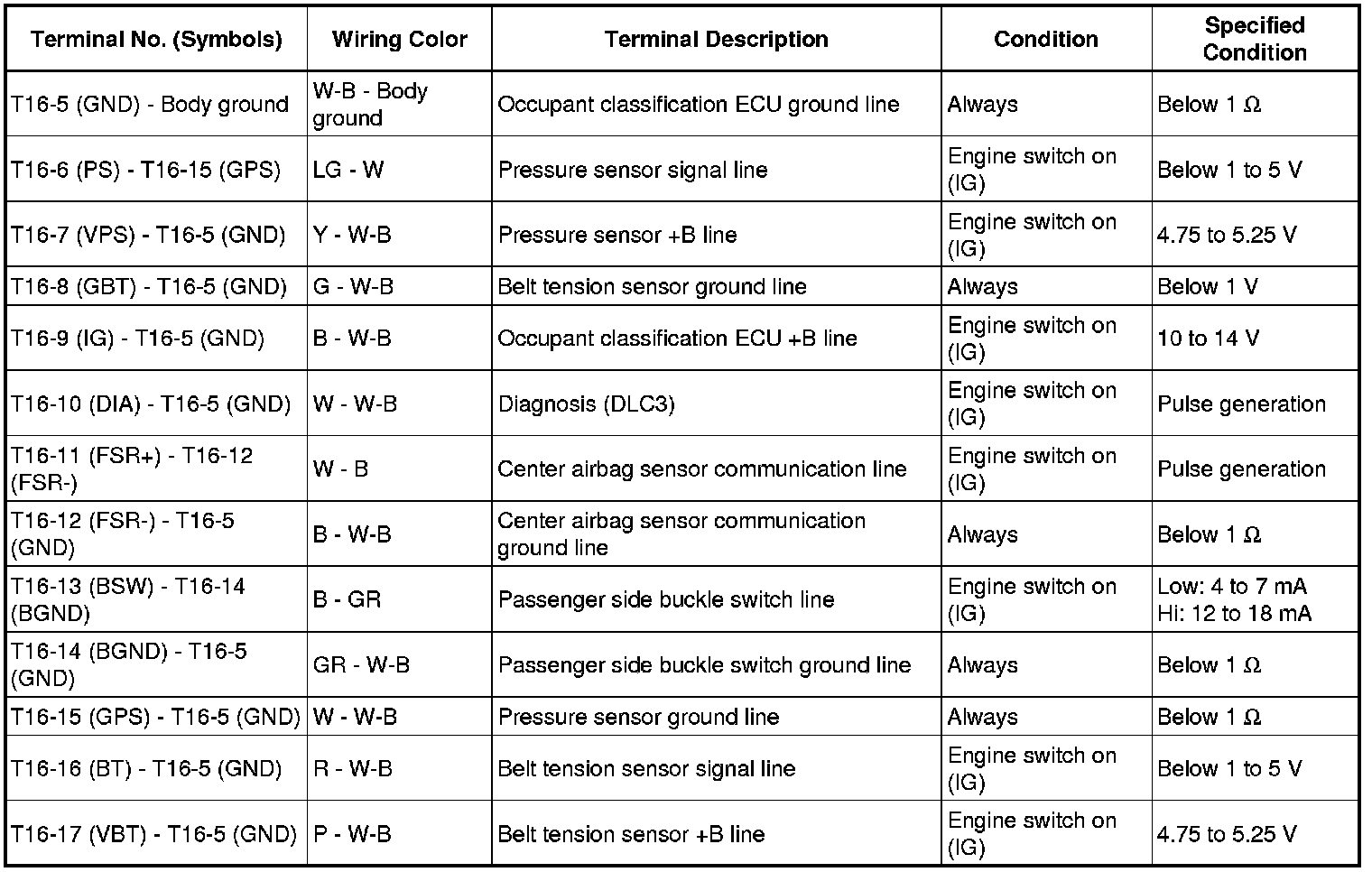

(a) Measure the resistance and voltage according to the value(s) in the table below.









If the result is not as specified, the ECU may have a malfunction.
