Audio and Visual System (w/o Navigation System)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System): TERMINALS OF ECU

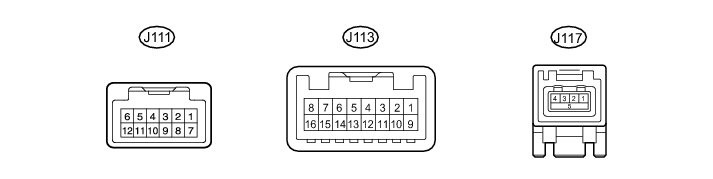

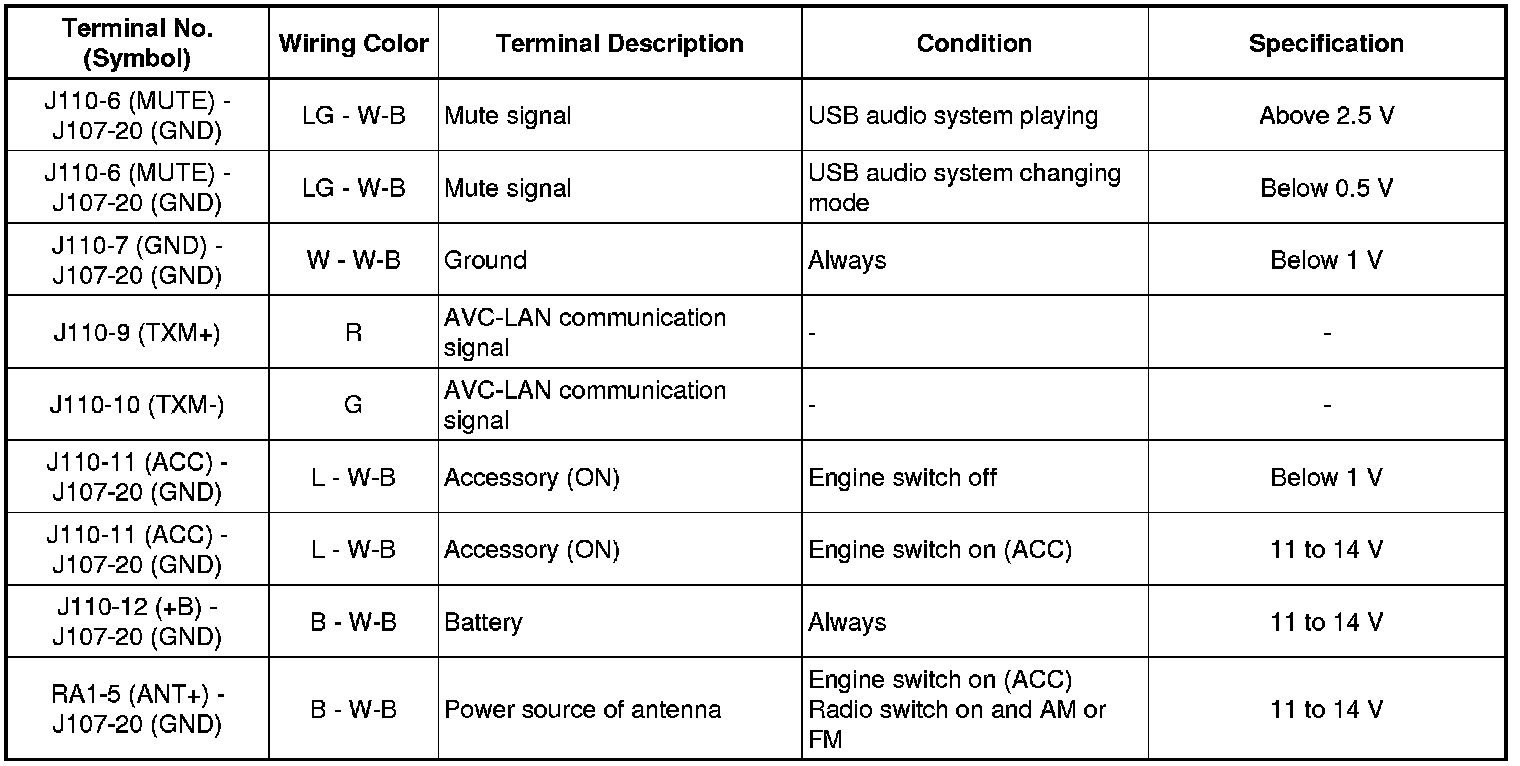

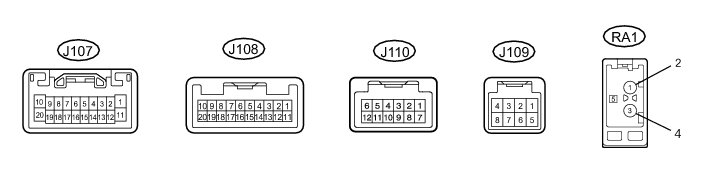

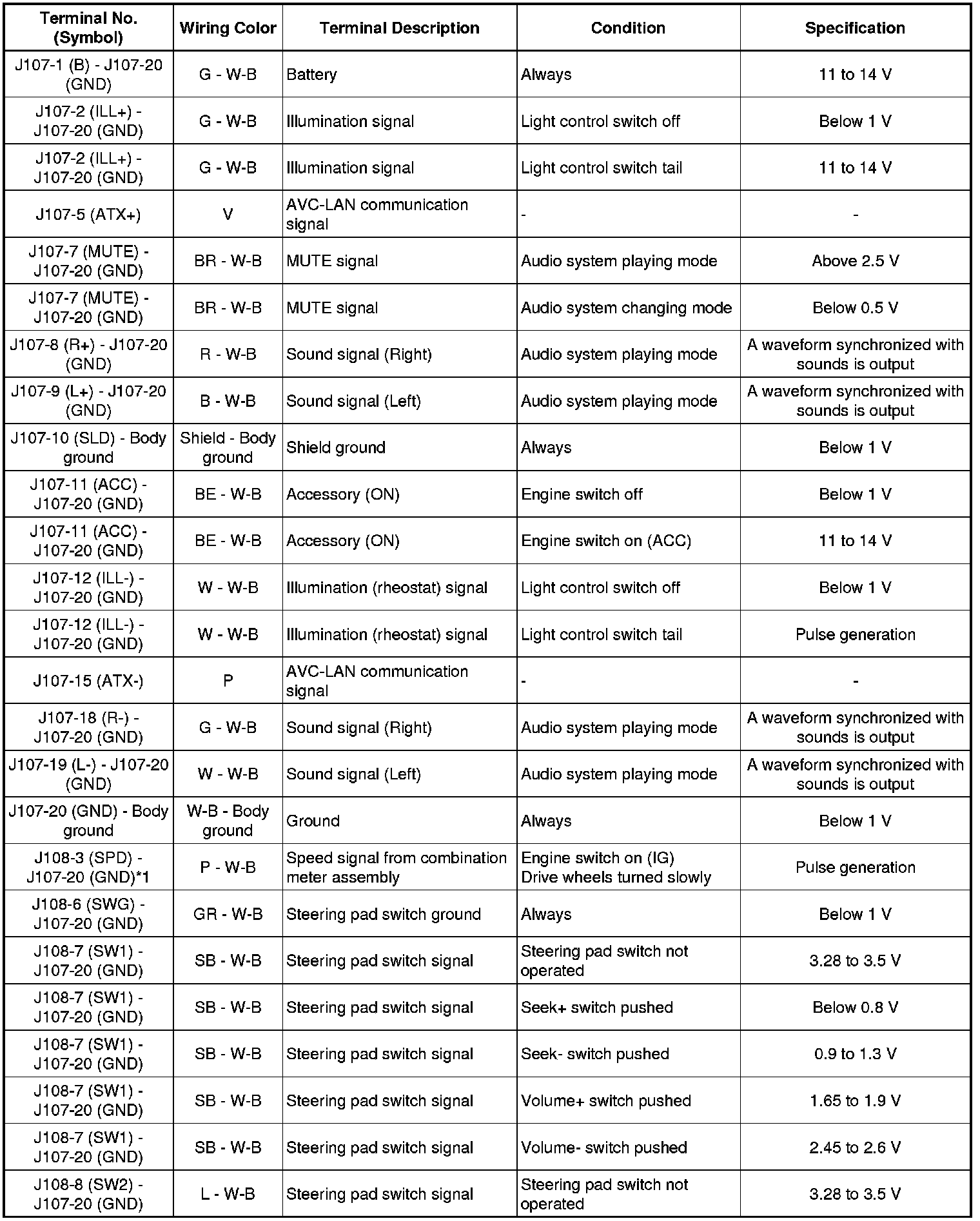

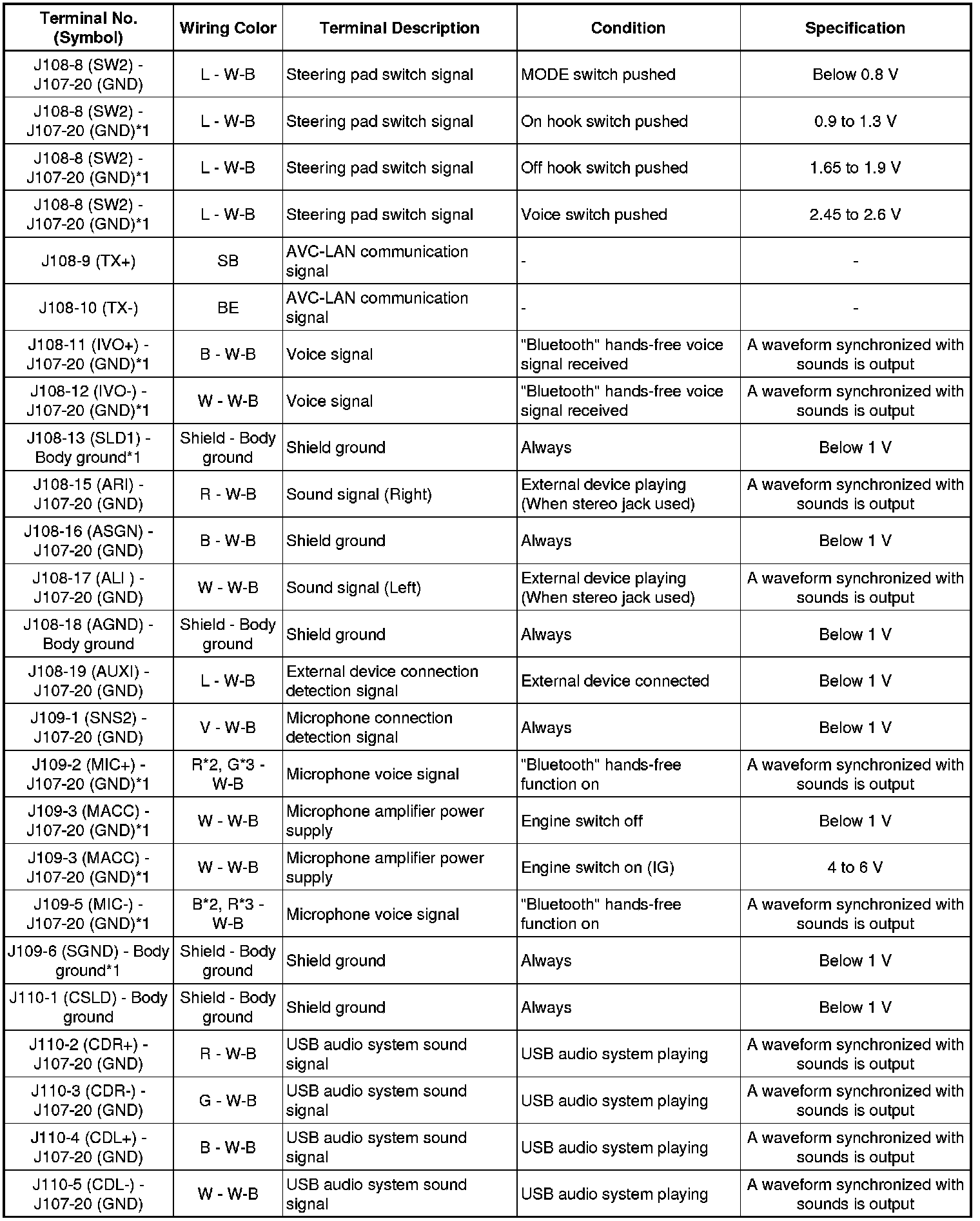

1. RADIO RECEIVER ASSEMBLY

















*1: w/ Microphone

*2: w/o Manual (SOS) Switch

*3: w/ Manual (SOS) Switch

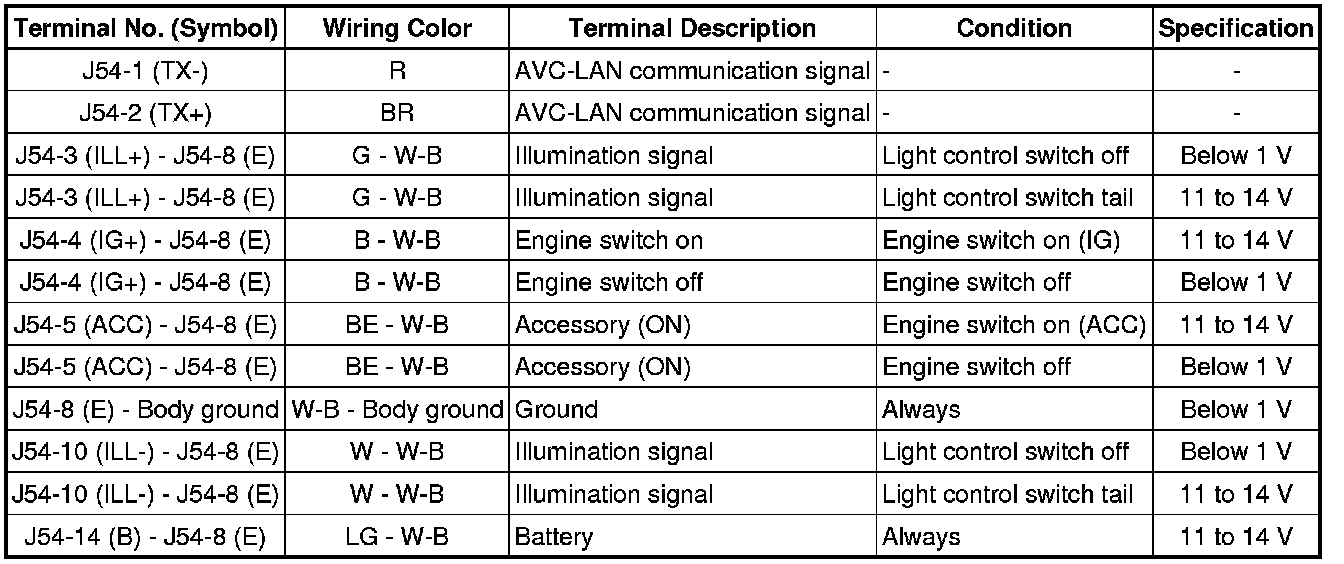

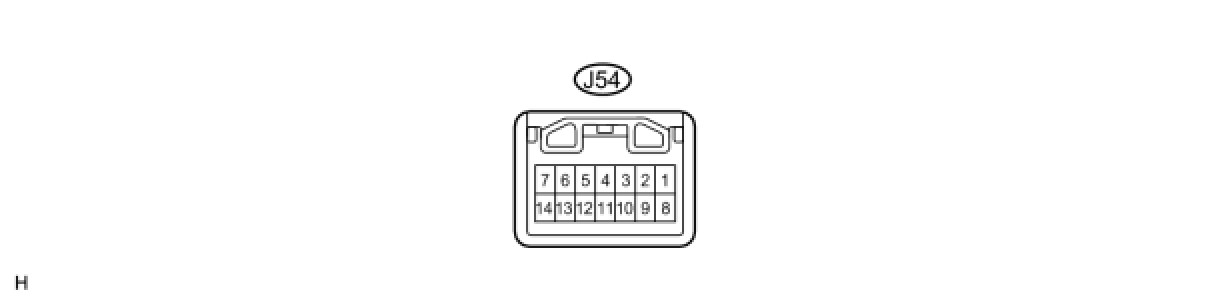

2. INTEGRATION CONTROL AND PANEL ASSEMBLY

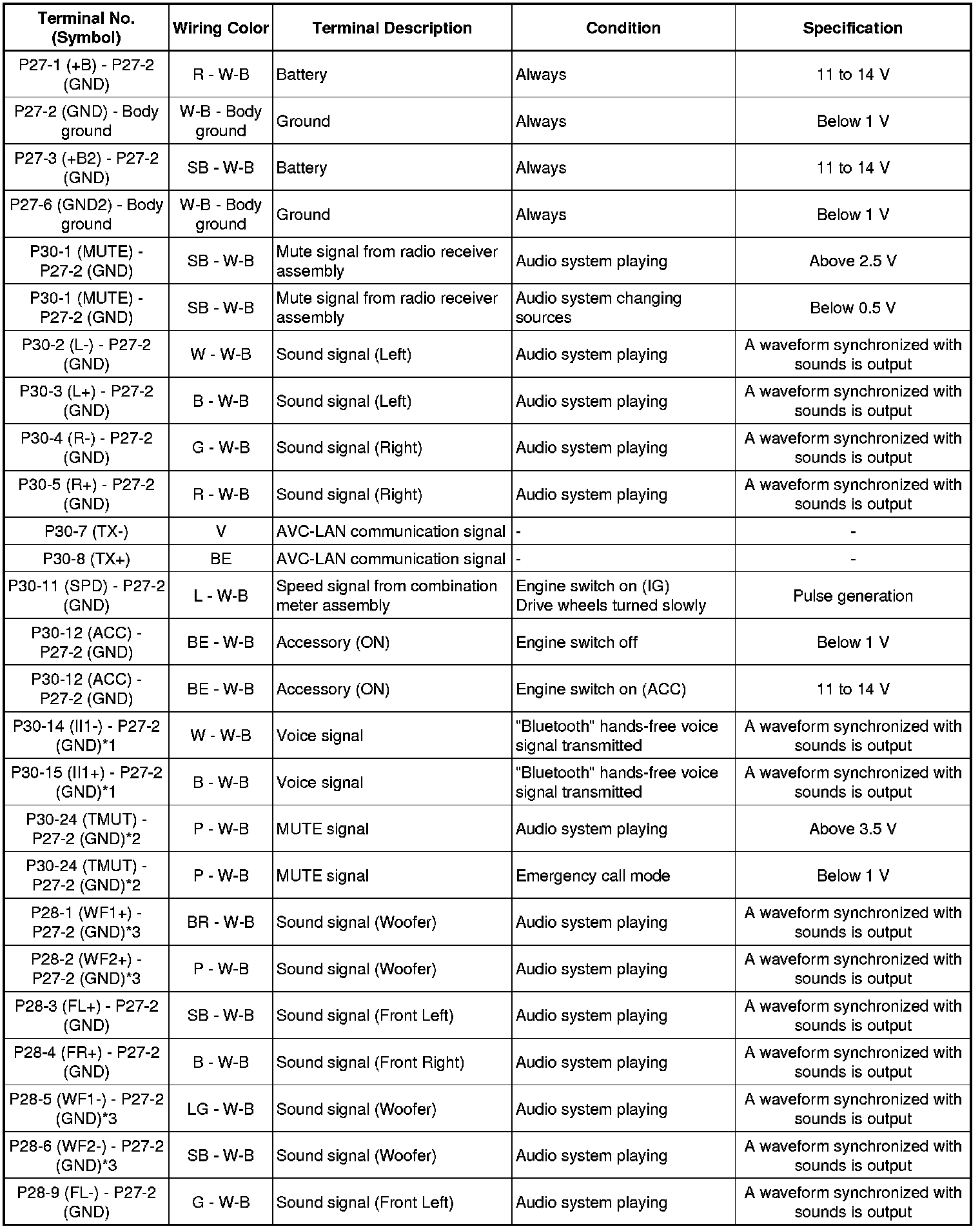

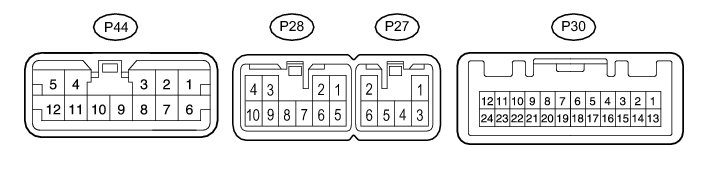

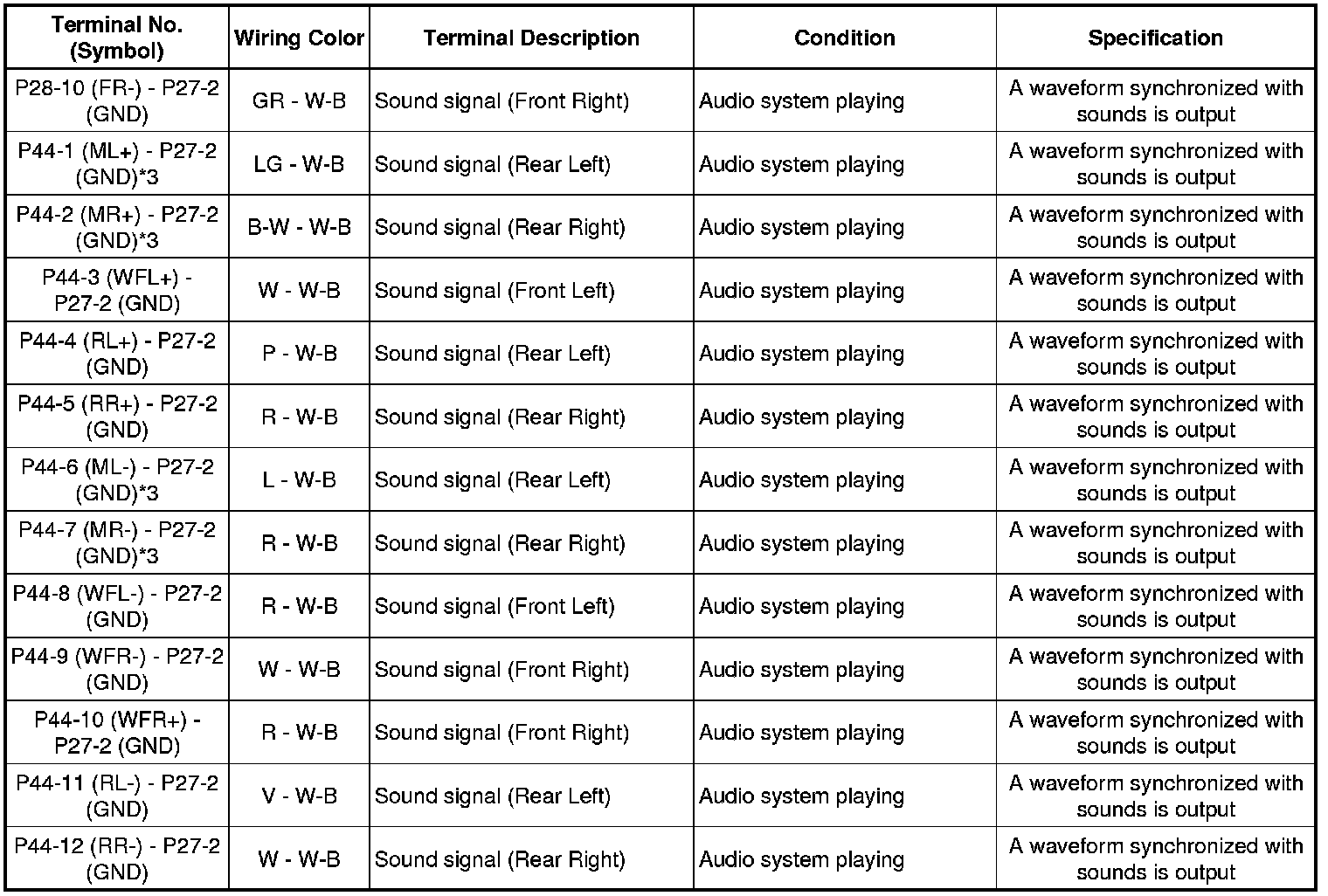

3. STEREO COMPONENT AMPLIFIER ASSEMBLY













*1: w/ Microphone

*2: w/ Manual (SOS) Switch

*3: for 13 Speakers

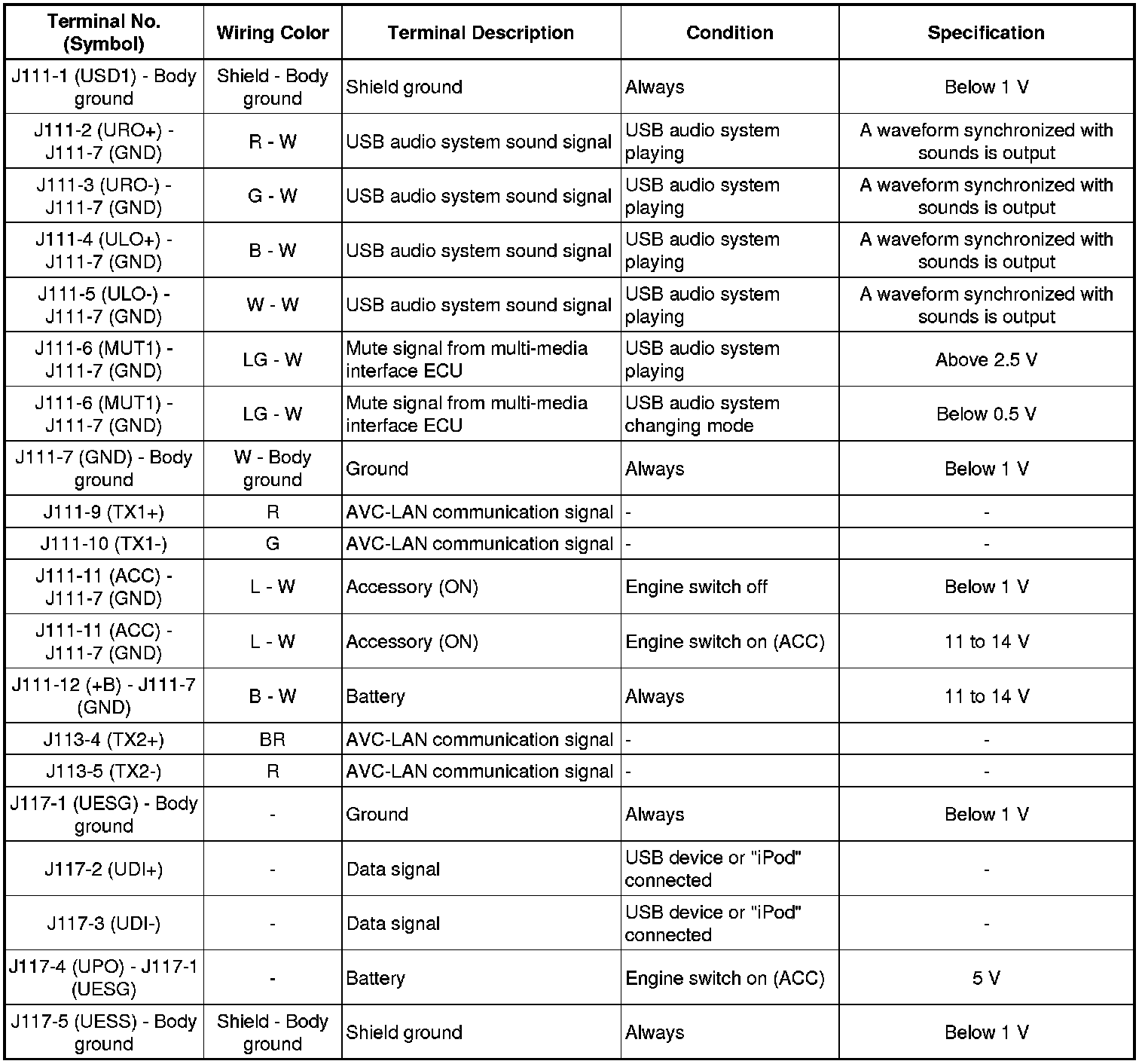

4. MULTI-MEDIA INTERFACE ECU









5. Network Gateway ECU Multiplex Communication System
