Audio and Visual System (w/ Navigation System)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/ Navigation System): HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use the following procedure to troubleshoot the audio and visual system.
* *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE

Standard Voltage:

11 to 14 V

If the voltage is below 11 V, recharge or replace the battery before proceeding to the next step.

NEXT -- Continue to next step.

3. BASIC INSPECTION

(a) Turn the engine switch on (IG).

(b) Check whether or not the radio receiver assembly turns on.

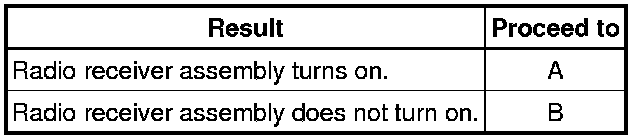

Result:





B -- Go to step 8
A -- Continue to next step.

4. CHECK FOR DTC*

(a) Refer to DTC Check/Clear of the navigation system.

Refer to Navigation System (for HDD) Navigation System (for HDD).

Refer to Navigation System (for DVD) Navigation System (for DVD).

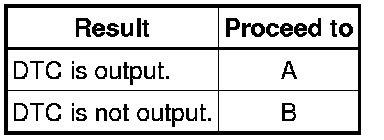

Result:





HINT
After the check using the Techstream, check the "System Check Mode" screen as necessary.

B -- Go to step 8
A -- Continue to next step.

5. DTC CLEAR*

(a) Refer to DTC Check/Clear of the navigation system.

Refer to Navigation System (for HDD) Navigation System (for HDD).

Refer to Navigation System (for DVD) Navigation System (for DVD).

HINT
The current DTCs may not indicate actual malfunctions depending on the vehicle operating conditions.

NEXT -- Continue to next step.

6. RECHECK FOR DTC*

(a) Refer to DTC Check/Clear of the navigation system.

Refer to Navigation System (for HDD) Navigation System (for HDD).

Refer to Navigation System (for DVD) Navigation System (for DVD).

Result:





HINT
* Even if the malfunction symptom is not confirmed, check for DTCs. This is because the system stores history DTCs.
* After the check using the Techstream, check the "System Check Mode" screen as necessary.
* Check the DTC and inspect the area the code indicates.

B -- Go to step 9
A -- Continue to next step.

7. DIAGNOSTIC TROUBLE CODE CHART

(a) Find the output code in Diagnostic Trouble Code Chart Audio and Visual System (w/ Navigation System).

NOTICE:
* The navigation system outputs DTCs for the following systems.
* When DTCs other than the codes in Diagnostic Trouble Code Chart for the audio and visual system are output, refer to Diagnostic Trouble Code Chart for the relevant systems.
* Refer to Navigation System (for HDD) Navigation System (for HDD).
* Refer to Navigation System (for DVD) Navigation System (for DVD).

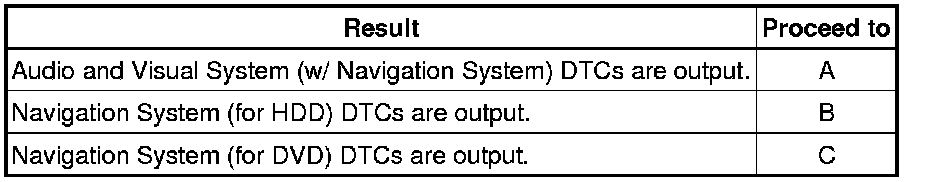

Result:





A -- Go to step 10

B -- GO TO NAVIGATION SYSTEM (for HDD)

C -- GO TO NAVIGATION SYSTEM (for DVD)

8. PROBLEM SYMPTOMS TABLE

(a) Refer to Problem Symptoms Table Problem Symptoms Table.

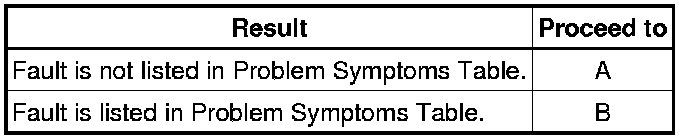

Result:





HINT
If the symptom does not recur and no DTC is output, perform the symptom reproduction method How To Proceed With Troubleshooting.

B -- Go to step 11
A -- Continue to next step.

9. PERFORM TROUBLESHOOTING BASED ON MALFUNCTION SYMPTOM

(a) Refer to Terminals of ECU Audio and Visual System (w/ Navigation System).

NEXT -- Continue to next step.

10. CHECK CIRCUIT

(a) Adjust, repair or replace as necessary.

NEXT -- Continue to next step.

11. RECHECK FOR DIAGNOSTIC TROUBLE CODE

HINT
After clearing DTCs, recheck for DTCs.

NEXT -- Continue to next step.

12. PERFORM CONFIRMATION TEST

NEXT -- END
