P2121





4GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P2121: Throttle / Pedal Position Sensor / Switch "D" Circuit Range / Performance
P2121 - Throttle / Pedal Position Sensor / Switch "D" Circuit Range / Performance

DESCRIPTION

HINT
Refer to DTC P2120 P2120





MONITOR DESCRIPTION

The accelerator pedal position sensor is mounted on the accelerator pedal bracket. The accelerator pedal position sensor has 2 sensor elements and 2 signal outputs: VPA and VPA2. VPA is used to detect the actual accelerator pedal angle (used for engine control) and VPA2 is used to detect malfunctions in VPA. When the difference between the output voltages of VPA and VPA2 deviates from the standard, the ECM determines that the accelerator pedal position sensor is malfunctioning. The ECM turns on the MIL and set the DTC.

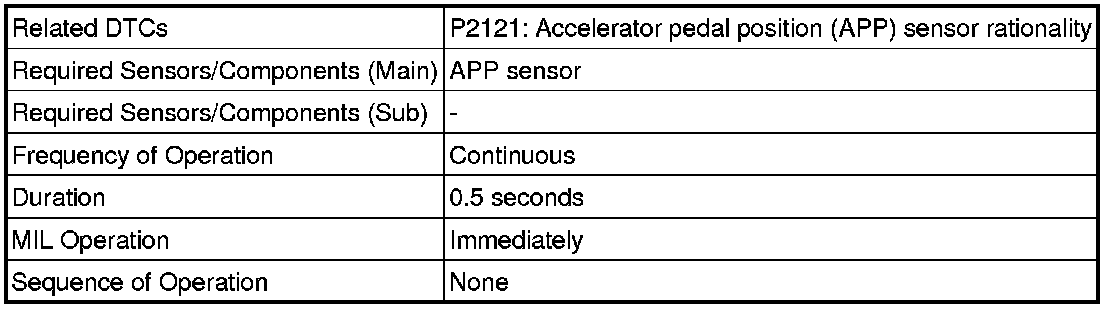

MONITOR STRATEGY

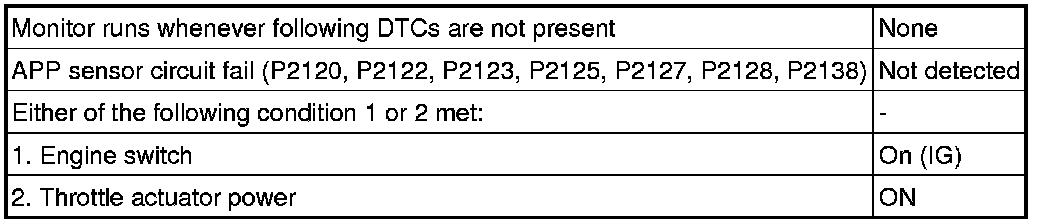

TYPICAL ENABLING CONDITIONS

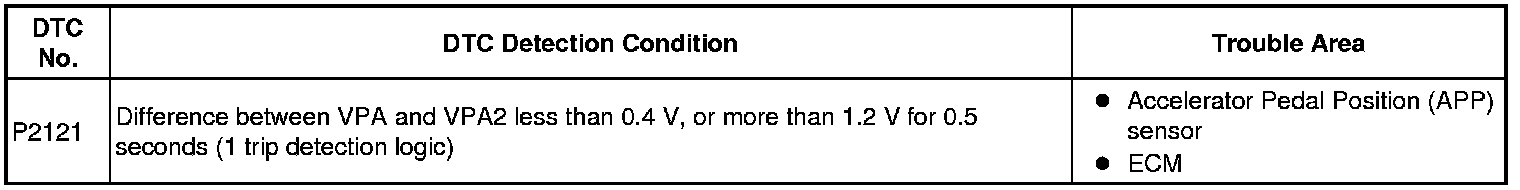

TYPICAL MALFUNCTION THRESHOLDS

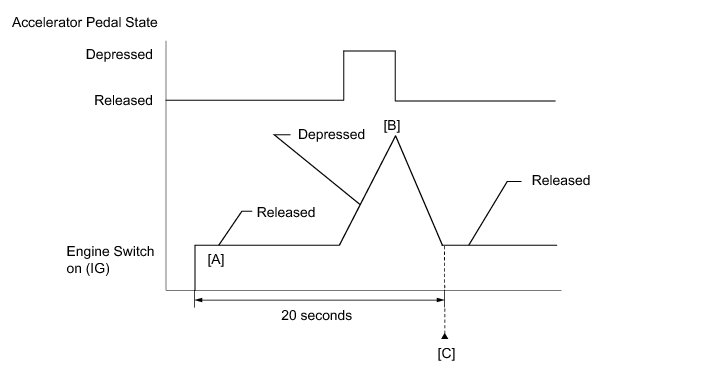

CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the engine switch on (IG) and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) DTC Check / Clear.

4. Turn the engine switch off and wait for 30 seconds.

5. Turn the engine switch on (IG) and turn the Techstream on [A].

6. Fully depress and release the accelerator pedal [B].

7. Check that 20 seconds or more have elapsed since the DTCs were cleared.

8. Enter the following menus: Powertrain / Engine / Trouble Codes.

9. Read the pending DTC [C].

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

10. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

11. Input the DTC: P2121.

12. Check the DTC judgment result.





HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows INCOMPLETE or UNKNOWN, perform step [B] again.

13. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

14. Check the DTC judgment result.

HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.

15. If the test result is INCOMPLETE or UNKNOWN and no DTC is output, perform a universal trip and check for permanent DTCs DTC Check / Clear.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

FAIL-SAFE

The accelerator pedal position sensor has two (main and sub) sensor circuits. If a malfunction occurs in either of the sensor circuits, the ECM detects the abnormal signal voltage difference between the two sensor circuits and switches to limp mode. In limp mode, the functioning circuit is used to calculate the accelerator pedal opening angle to allow the vehicle to continue driving. If both circuits malfunction, the ECM regards the opening angle of the accelerator pedal as being fully closed. In this case, the throttle valve remains closed as if the engine is idling.

If a pass condition is detected and then the engine switch is turned off, the fail-safe operation stops and the system returns to a normal condition.

WIRING DIAGRAM

Refer to DTC P2120 P2120.

INSPECTION PROCEDURE

HINT
- Read freeze frame data using Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.
- This DTC relates to the Accelerator Pedal Position (APP) sensor.

PROCEDURE

1. CHECK FOR ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P2121)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read the DTCs.

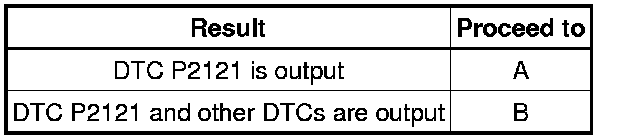

Result:





HINT
If any DTCs other than P2121 are output, troubleshoot those DTCs first.

B -- GO TO DTC CHART SFI System
A -- Continue to next step.

2. READ VALUE USING TECHSTREAM (ACCEL POSITION SENSOR)

(a) Connect Techstream to the DLC3.





(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Data List / Accel Sensor Out No. 1 and Accel Sensor Out No. 2.

(e) Read the values displayed on the Techstream.

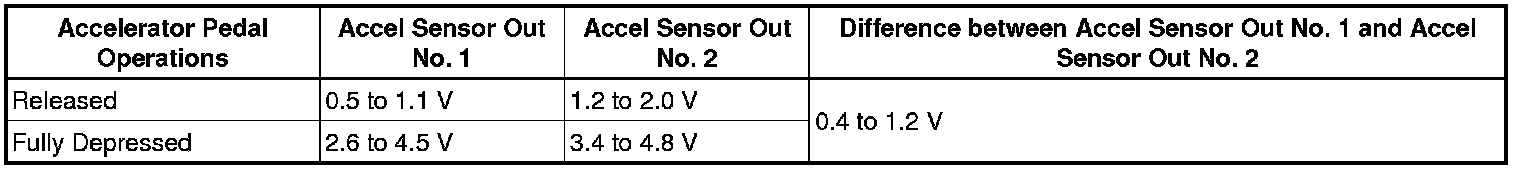

Standard voltage:





NG -- REPLACE ACCELERATOR PEDAL SENSOR ASSEMBLY

OK -- CHECK FOR INTERMITTENT PROBLEMS Check For Intermittent Problems

3. REPLACE ACCELERATOR PEDAL SENSOR ASSEMBLY

(a) Replace the accelerator pedal sensor assembly Removal.

NEXT -- Continue to next step.

4. CHECK WHETHER DTC OUTPUT RECURS (DTC P2121)

(a) Connect Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Clear DTCs DTC Check / Clear.

(e) Start the engine.

(f) Allow the engine to idle for 15 seconds.

(g) Enter the following menus: Powertrain / Engine / Trouble Codes.

(h) Read the DTCs.

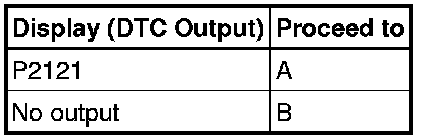

Result:





B -- END

A -- REPLACE ECM Removal
