P0023

4GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0013, P0023: Camshaft Position "B" Actuator Circuit / Open (Bank 1)
P0023 - Camshaft Position "B" Actuator Circuit / Open (Bank 2)

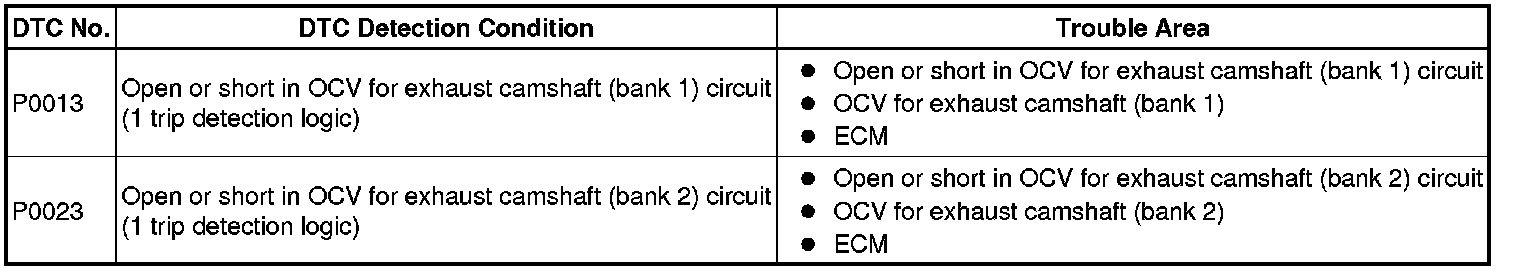

DESCRIPTION

The Variable Valve Timing (VVT) system includes the ECM, OCV and VVT controller. The ECM sends a target duty-cycle control signal to the OCV. This control signal regulates the oil pressure supplied to the VVT controller. Camshaft timing control is performed according to engine operating conditions such as the intake air volume, throttle valve position and engine coolant temperature. The ECM controls the OCV, based on the signals transmitted by several sensors. The VVT controller regulates the exhaust camshaft angle using oil pressure through the OCV. As a result, the relative positions of the camshaft and crankshaft are optimized, the engine torque and fuel economy improve, and the exhaust emissions decrease under overall driving conditions. The ECM detects the actual exhaust valve timing using signals from the camshaft and crankshaft position sensors, and performs feedback control. This is how the target exhaust valve timing is verified by the ECM.









MONITOR DESCRIPTION

The ECM optimizes the valve timing using the VVT system to control the exhaust camshaft. The VVT system includes the ECM, the OCV and the VVT controller. The ECM sends a target duty-cycle control signal to the OCV. This control signal regulates the oil pressure supplied to the VVT controller. The VVT controller can advance or retard the exhaust camshaft.

After the ECM sends the target duty-cycle signal to the OCV, the ECM monitors the OCV current to establish an actual duty-cycle. The ECM determines the existence of a malfunction and sets the DTC when the actual duty-cycle ratio varies from the target duty-cycle ratio.

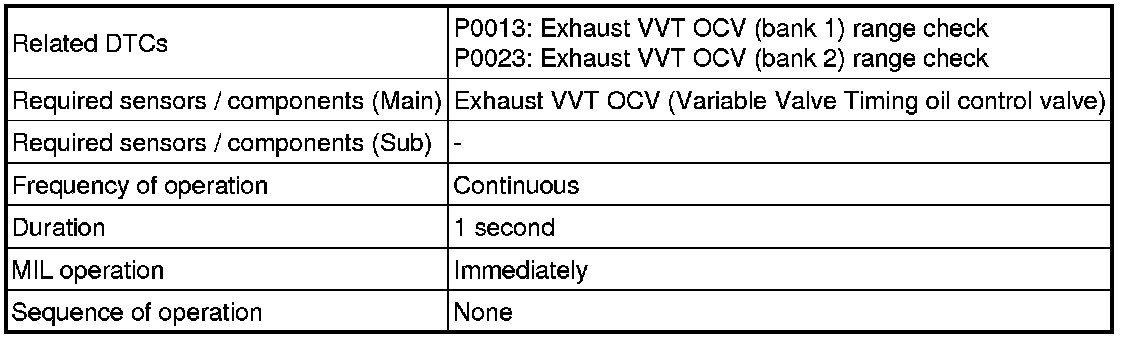

MONITOR STRATEGY

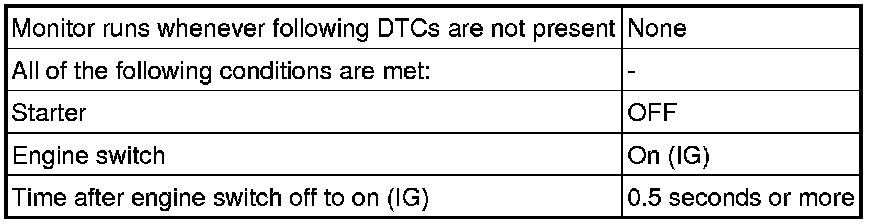

TYPICAL ENABLING CONDITIONS

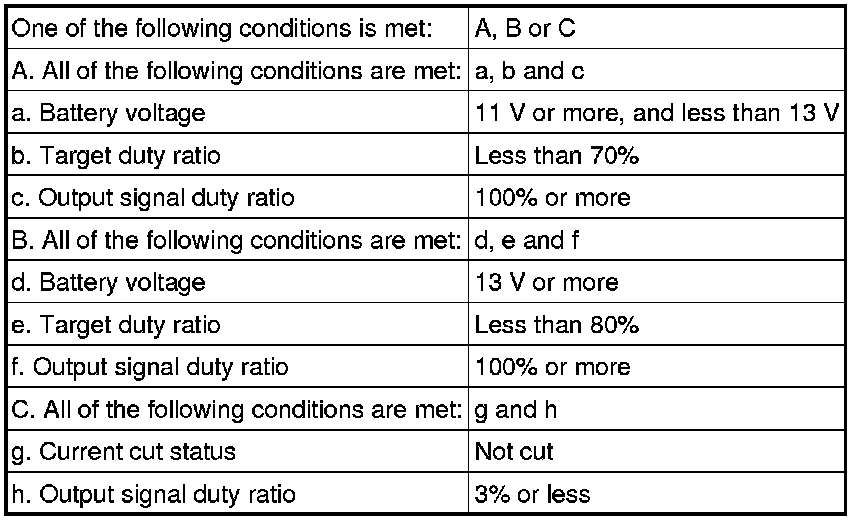

TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the engine switch on (IG) and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) DTC Check / Clear.

4. Turn the engine switch off and wait for 30 seconds.

5. Turn the engine switch on (IG) and turn the Techstream on.

6. Wait 5 seconds [A].

7. Enter the following menus: Powertrain / Engine / Trouble Codes.

8. Read the pending DTC [B].

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

9. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

10. Input the DTC: P0013 or P0023.

11. Check the DTC judgment result.





HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows INCOMPLETE or UNKNOWN, perform step [A] again.

12. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

13. Check the DTC judgment result.

HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.

14. If the test result is INCOMPLETE or UNKNOWN and no DTC is output, perform a universal trip and check for permanent DTCs DTC Check / Clear.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

WIRING DIAGRAM





INSPECTION PROCEDURE

HINT
- If DTC P0013 is displayed, check the bank 1 VVT system for exhaust camshaft circuit.
- Bank 1 refers to the bank that includes cylinder No. 1.
- If DTC P0023 is displayed, check the bank 2 VVT system for exhaust camshaft circuit.
- Bank 2 refers to the bank that does not include cylinder No. 1.
- Read freeze frame data using Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.

PROCEDURE

1. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE VVT EXHAUST LINEAR (BANK 1 OR BANK 2))

(a) Connect Techstream to the DLC3.

(b) Start the engine and turn the Techstream on.

(c) Enter the following menus: Powertrain / Engine / Active Test / Control the VVT Exhaust Linear (Bank 1) or Control the VVT Exhaust Linear (Bank 2).

(d) Check the engine speed while operating the oil control valve using the Techstream.

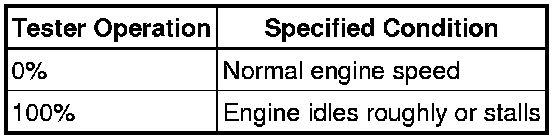

OK:





NG -- INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR EXHAUST CAMSHAFT)

OK -- CHECK FOR INTERMITTENT PROBLEMS Check For Intermittent Problems

2. INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR EXHAUST CAMSHAFT)

(a) Disconnect the E21 or E31 exhaust camshaft timing oil control valve connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(c) Reconnect the camshaft timing oil control valve connector.

NG -- REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR EXHAUST CAMSHAFT) Removal
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (OCV - ECM)

(a) Disconnect the E21 or E31 OCV connector.

(b) Disconnect the E3 or E5 ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

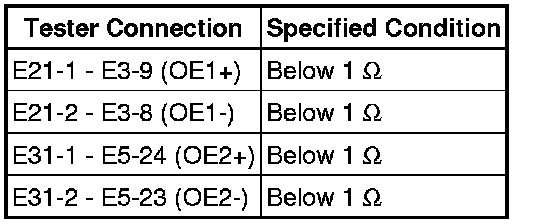

Standard resistance (check for open):

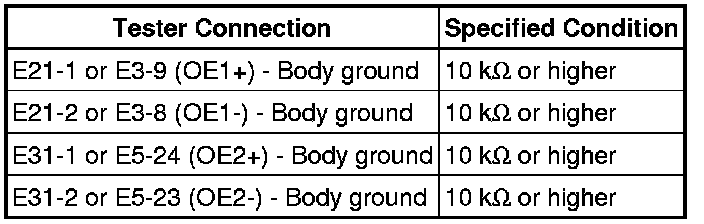

Standard resistance (check for short):





(d) Reconnect the OCV and ECM connectors.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (OCV - ECM)

OK -- REPLACE ECM Removal
