Engine Immobilizer System

ENGINE IMMOBILIZER: ENGINE IMMOBILIZER SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

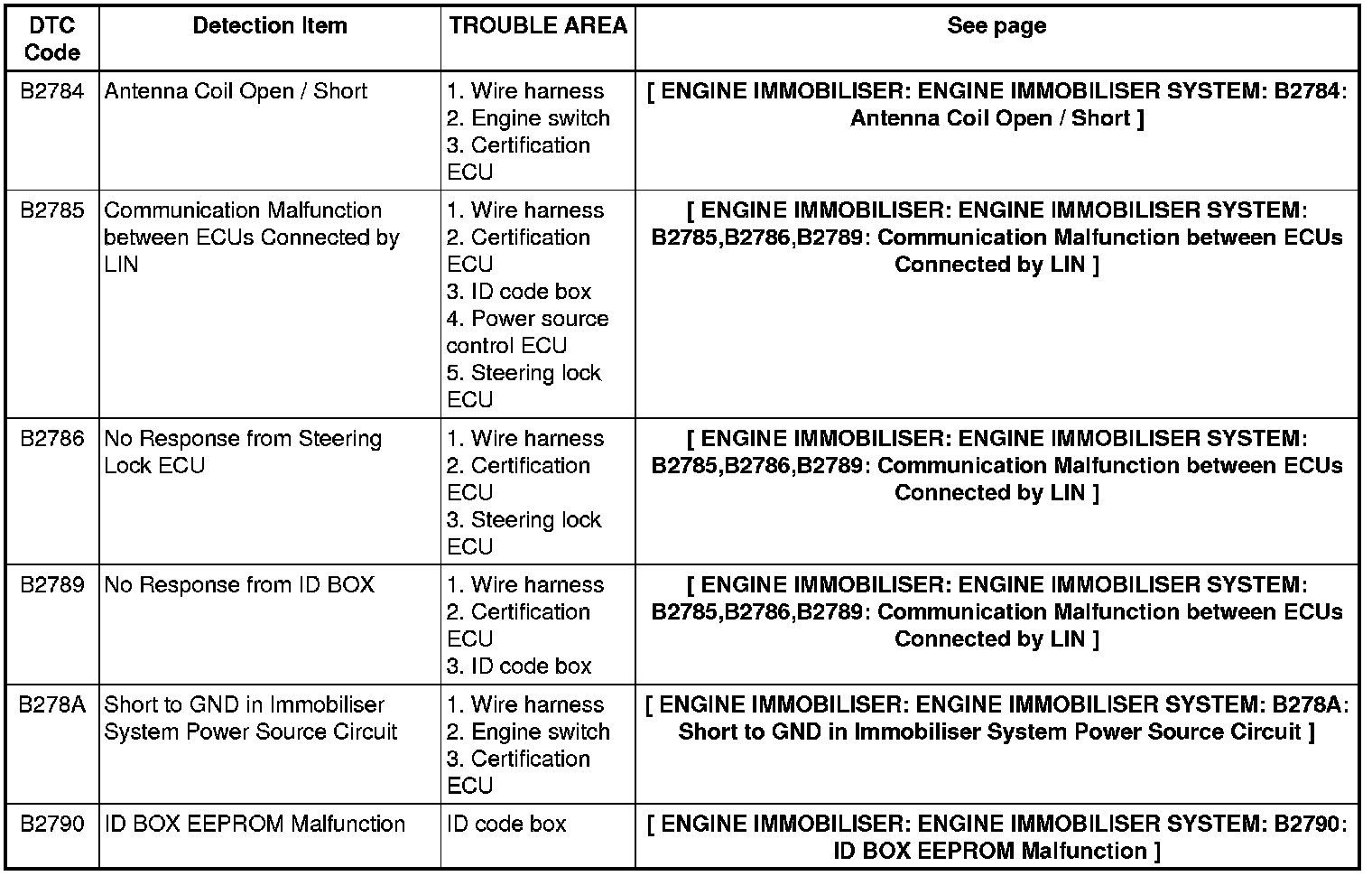

1. CERTIFICATION ECU DIAGNOSTIC TROUBLE CODE CHART

Certification ECU

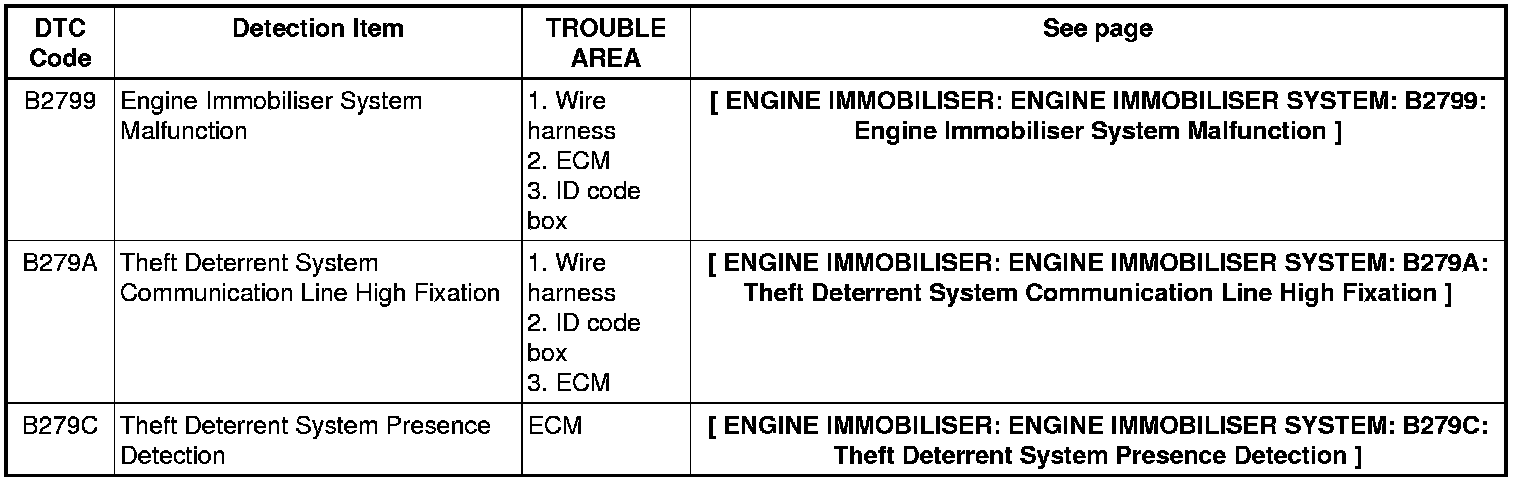

2. ECM DIAGNOSTIC TROUBLE CODE CHART

HINT
The DTCs for the engine immobilizer system are specified above. If the other codes are output, check the DTC chart for the SFI system.

ECM
