Brake Fluid Pump Relay: Testing and Inspection

BRAKE CONTROL: ABS MOTOR RELAY (for 1UR-FSE): ON-VEHICLE INSPECTION

1. INSPECT ABS MOTOR RELAY

(a) Remove the ABS MOTOR1 relay and ABS MOTOR2 relay.

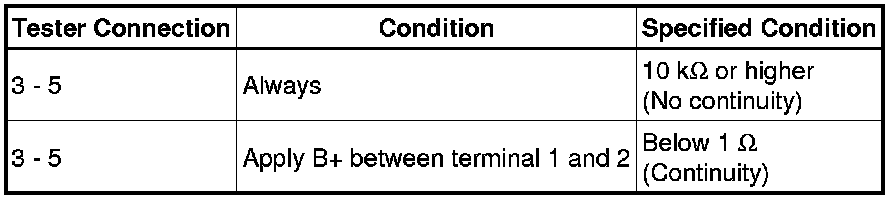

(b) Measure the resistance according to the value(s) in the table below.

Resistance:
