Installation

1UR-FSE FUEL: FUEL RELIEF VALVE: INSTALLATION

1. INSTALL FUEL RELIEF VALVE ASSEMBLY

(a) Install a new gasket to the relief valve.

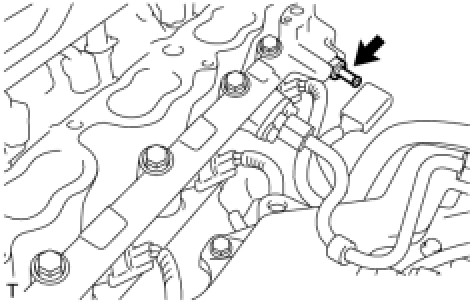

(b) Using a 14 mm deep socket wrench, install the relief valve to the No. 2 delivery pipe.

Torque : 40 Nm (408 kgf-cm, 29 ft-lbf)

NOTICE:
* Do not apply oil to the threads of the relief valve and delivery pipe.
* Do not allow foreign matter to enter the pipe during the installation.

(c) Install the No. 1 fuel pipe sub-assembly.

(d) Connect the No. 3 fuel hose.





2. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation

3. INSTALL INTAKE MANIFOLD

(a) Install the intake manifold Installation.

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

5. ADD ENGINE COOLANT Service and Repair

6. INSPECT FOR COOLANT LEAK Testing and Inspection

7. INSPECT FOR FUEL LEAK Fuel System
