Fuel Injector (for Direct Injection)

1UR-FSE FUEL: FUEL INJECTOR (for Direct Injection): INSPECTION

1. INSPECT FUEL INJECTOR ASSEMBLY

NOTICE:
This inspection aims at inspecting the fuel injectors for opens or shorts, because the fuel injectors of this vehicle are a high-pressure type and cannot be inspected for fuel injection volume.

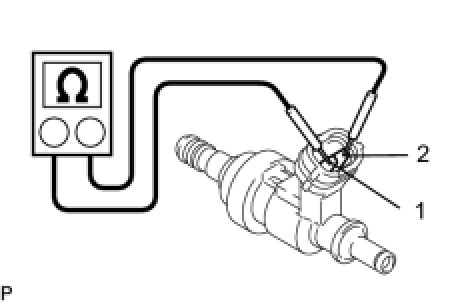

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





If the result is not as specified, replace the injector.
