Accelerator Pedal: Testing and Inspection

1UR-FSE ENGINE CONTROL SYSTEM: ACCELERATOR PEDAL: ON-VEHICLE INSPECTION

1. INSPECT ACCELERATOR PEDAL

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream main switch on.

(d) Enter the following menus: Powertrain / Engine / Data List/ Accelerator Position No. 1, Accelerator Position No. 2.

(e) Read the value displayed on the tester.

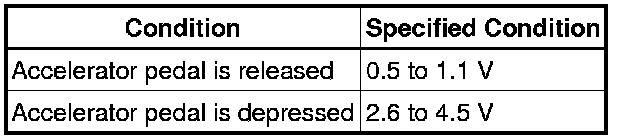

Accelerator Position No. 1 standard voltage:

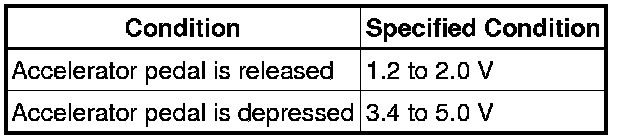

Accelerator Position No. 2 standard voltage:





If the result is not as specified, check the accelerator pedal, wire harness or ECM.
