Removal

1UR-FSE EMISSION CONTROL: PCV VALVE: REMOVAL

HINT
Although the part name refers to the ventilation valve sub-assembly, this procedure is for the PCV valve.

1. REMOVE INTAKE MANIFOLD

(a) Remove the intake manifold Removal.

2. REMOVE VENTILATION HOSE

(a) Remove the ventilation hose from the ventilation valve sub-assembly.

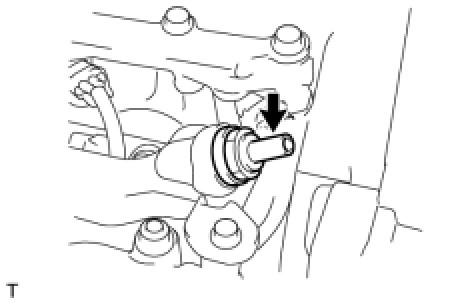

3. REMOVE VENTILATION VALVE SUB-ASSEMBLY

(a) Remove the ventilation valve sub-assembly.
