Removal

1UR-FSE EMISSION CONTROL: CANISTER: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent the airbag from working.

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization

2. REMOVE FLOOR UNDER COVER

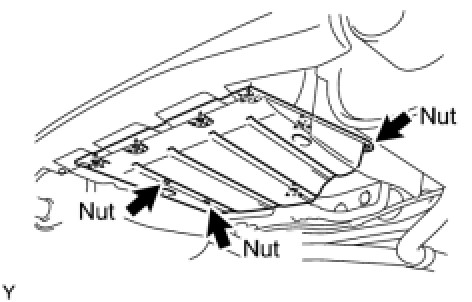

(a) Remove the 3 nuts, 6 clips and floor under cover.

3. REMOVE CHARCOAL CANISTER ASSEMBLY

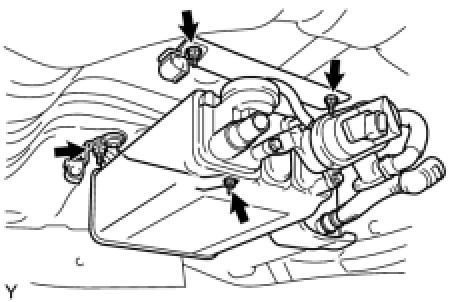

(a) Disconnect the wire harness from the 2 clamps.

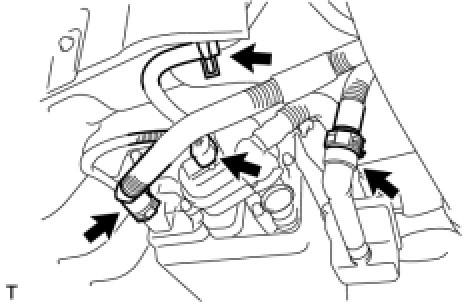

(b) Disconnect the 2 quick connectors, hose and connector.
