Installation

1UR-FSE EMISSION CONTROL: PURGE VALVE: INSTALLATION

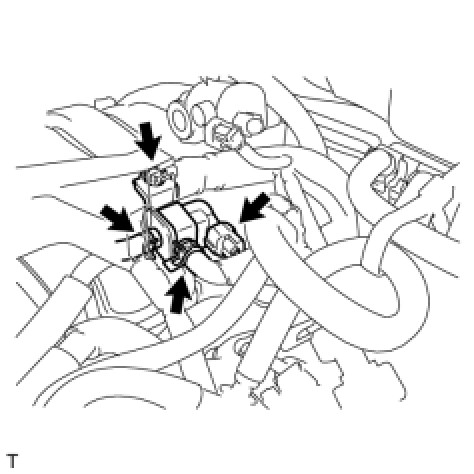

1. INSTALL NO. 1 VACUUM SWITCHING VALVE ASSEMBLY

(a) Install the No. 1 vacuum switching valve assembly with the bolt.





Torque : 21 Nm (215 kgf-cm, 15 ft-lbf)

(b) Connect the 2 purge line hoses to the vacuum switching valve assembly.

(c) Connect the vacuum switching valve assembly connector.

2. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization
