Installation

1UR-FSE ENGINE CONTROL SYSTEM: CAMSHAFT TIMING CONTROL MOTOR: INSTALLATION

1. INSTALL CAMSHAFT TIMING CONTROL MOTOR LH

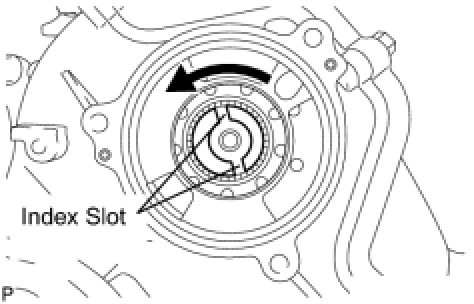

(a) Turn the camshaft timing gear assembly's eccentric shaft index slot in the counterclockwise direction by hand, and set it to the maximum retard angle position.





NOTICE:
To prevent damage, do not use any tools to turn the eccentric shaft index slot.

HINT
* When the cam of the camshaft lifts the valve, the eccentric shaft becomes difficult to turn.
* The position where the eccentric shaft stops is the maximum retard angle.

(b) Install a new O-ring to the timing chain cover.

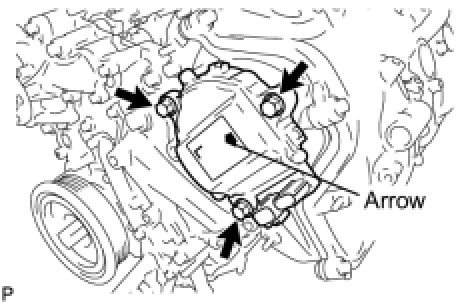

(c) Align the joint of the camshaft timing control motor and the keyway of the camshaft timing gear assembly, and install the motor with the 3 bolts.





Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)

NOTICE:
* Check that [L] is printed on the label of the camshaft timing control motor.
* Do not allow foreign matter to contact the oil seal face of the camshaft timing control motor (connecting surface with timing chain cover sub-assembly).
* When installing the camshaft timing control motor, do not use excessive force.
* Align the timing chain cover sub-assembly knock pin with the camshaft timing control motor pin hole to install the camshaft timing control motor.
* Install the camshaft timing control motor with the arrow facing upward, as shown in the illustration.
* Do not drop the camshaft timing control motor. If dropped, replace it.
* Do not disassemble the camshaft timing control motor assembly. If disassembled, replace it.

(d) Install the engine wire bracket with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(e) Connect the 2 camshaft timing control motor connectors and engine wire clamp.





2. INSTALL CAMSHAFT TIMING CONTROL MOTOR RH

(a) Turn the camshaft timing gear assembly's eccentric shaft index slot in the counterclockwise direction by hand, and set it to the maximum retard angle position.





NOTICE:
To prevent damage, do not use any tools to turn the eccentric shaft index slot.

HINT
* When the cam of the camshaft lifts the valve, the eccentric shaft becomes difficult to turn.
* The position where the eccentric shaft stops is the maximum retard angle.

(b) Install a new O-ring to the timing chain cover.

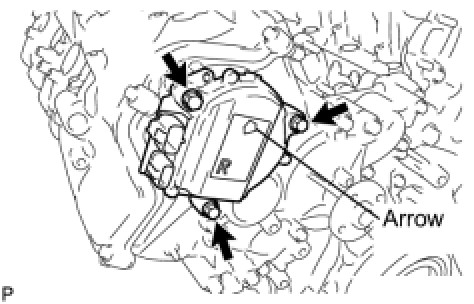

(c) Align the joint of the camshaft timing control motor and the keyway of the camshaft timing gear assembly, and install the motor with the 3 bolts.





Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)

NOTICE:
* Check that [R] is printed on the label of the camshaft timing control motor.
* Do not allow foreign matter to contact the oil seal face of the camshaft timing control motor (connecting surface with timing chain cover sub-assembly).
* When installing the camshaft timing control motor, do not use excessive force.
* Align the timing chain cover sub-assembly knock pin with the camshaft timing control motor pin hole to install the camshaft timing control motor.
* Install the camshaft timing control motor with the arrow facing upward, as shown in the illustration.
* Do not drop the camshaft timing control motor. If dropped, replace it.
* Do not disassemble the camshaft timing control motor assembly. If disassembled, replace it.

(d) Install the engine wire bracket with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(e) Connect the 2 camshaft timing control motor connectors.





3. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation

4. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation

5. INSTALL NO. 1 AIR CLEANER INLET Installation

6. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

7. INSTALL ENGINE ROOM SIDE COVER RH Installation

8. INSTALL ENGINE ROOM SIDE COVER LH Installation

9. INSTALL COOL AIR INTAKE DUCT SEAL Installation

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
