Replacement

1UR-FSE ENGINE MECHANICAL: ENGINE UNIT: REPLACEMENT

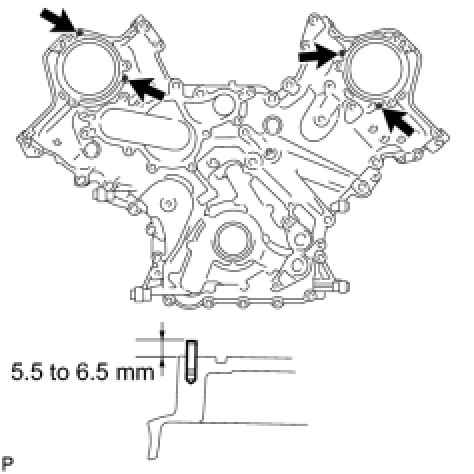

1. REPLACE TIMING CHAIN COVER STRAIGHT PIN

(a) Remove the straight pin.





(b) Using a plastic-faced hammer, tap in new straight pins to the timing chain cover.

Standard protrusion:

5.5 to 6.5 mm (0.217 to 0.256 in.)

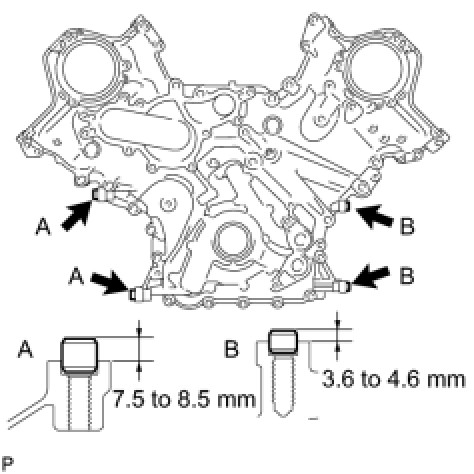

2. REPLACE TIMING CHAIN COVER RING PIN

(a) Remove the ring pin.





(b) Using a plastic-faced hammer, tap in new ring pins to the timing chain cover.

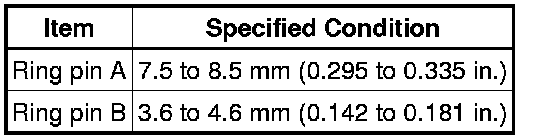

Standard protrusion:

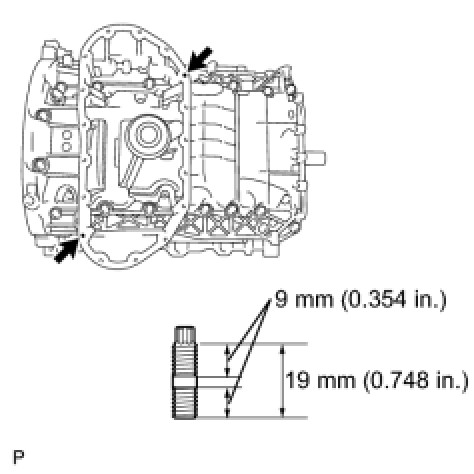

3. REPLACE OIL PAN STUD BOLT

(a) Using an E6 "TORX" socket wrench, install the 2 stud bolts as shown in the illustration.





Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

4. REPLACE ENGINE REAR OIL SEAL

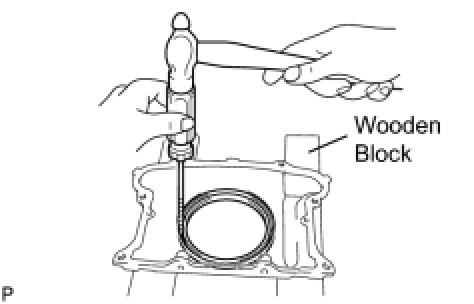

(a) Place the oil seal retainer on wooden blocks.





(b) Using a screwdriver and hammer, tap out the oil seal.

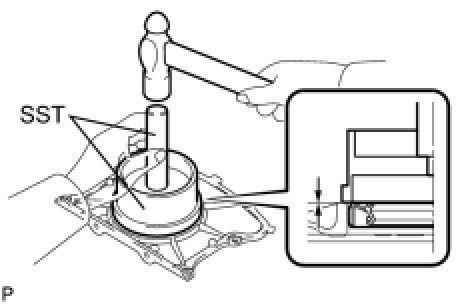

(c) Using SST, tap in a new oil seal until its surface is flush with the oil seal retainer edge.





SST : 09223-15030

SST : 09950-70010

09951-07100

NOTICE:
* Keep the lip free from foreign matter.
* Do not tap on the oil seal at an angle.
