Installation

1UR-FSE ENGINE MECHANICAL: REAR CRANKSHAFT OIL SEAL: INSTALLATION

1. INSTALL ENGINE REAR OIL SEAL

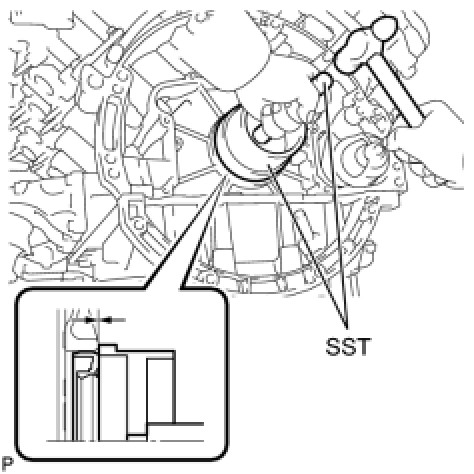

(a) Using SST, tap in a new engine rear oil seal until its surface is flush with the oil seal retainer edge.





SST : 09223-15030

SST : 09950-70010

09951-07150

NOTICE:
* Keep the lip free from foreign matter.
* Do not tap on the oil seal at an angle.

2. INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY Installation

3. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY

(a) Install the automatic transmission assembly Installation.
