Procedures

BRAKE CONTROL: BRAKE ACTUATOR (for 1UR-FSE): DISPOSAL

1. DISPOSE OF BRAKE ACTUATOR ASSEMBLY

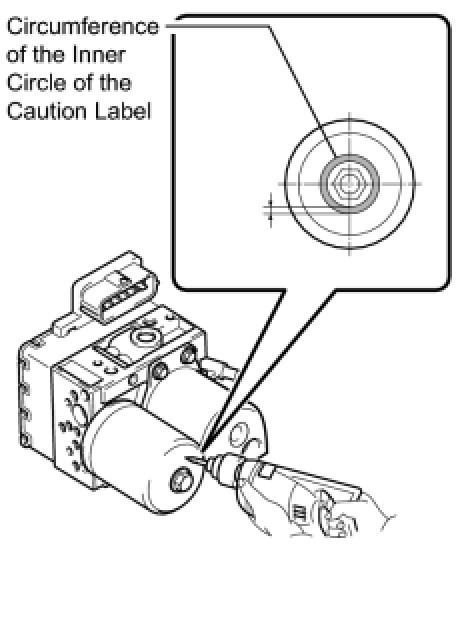

(a) Using a drill, slowly make a hole at the circumference of the inner circle of the caution label and discharge the gas.





NOTICE:
Be sure to wear protective glasses as fragments may fly out due to pressure.

HINT
* Drill a hole approximately 10 mm (0.394 in.) deep.
* The gas is nitrogen, which is colorless, odorless, and harmless.
