Disassembly

BRAKE: BRAKE MASTER CYLINDER (for 1UR-FSE): DISASSEMBLY

1. REMOVE BRAKE MASTER CYLINDER ASSEMBLY

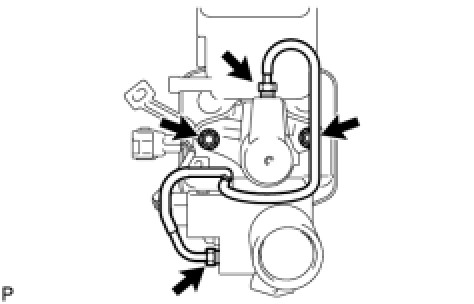

(a) Using SST, separate the brake stroke simulator tube from the brake stroke simulator cylinder sub-assembly.

SST : 09023-00101

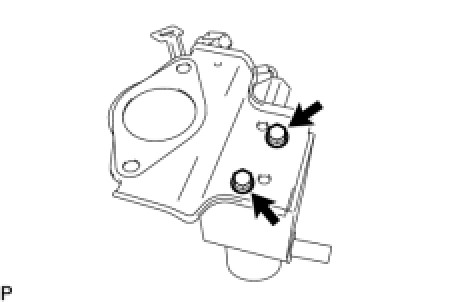

(b) Remove the 2 nuts, 2 brake master cylinder gaskets, brake master cylinder bracket and brake stroke simulator bracket.

2. REMOVE BRAKE MASTER CYLINDER RESERVOIR

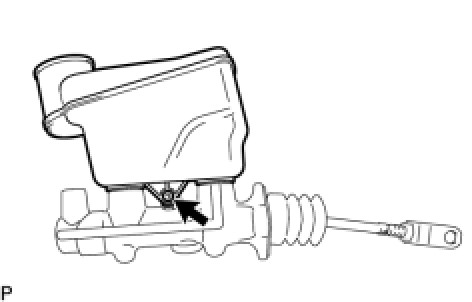

(a) Remove the screw and brake master cylinder reservoir assembly.





(b) Remove the 2 master cylinder reservoir grommets.

3. REMOVE BRAKE MASTER CYLINDER PUSH ROD CLEVIS

(a) Remove the push rod clevis and lock nut.

4. REMOVE BRAKE STROKE SIMULATOR CYLINDER SUB-ASSEMBLY

(a) Separate the connector from the brake stroke simulator bracket.





(b) Remove the 2 bolts and the brake stroke simulator cylinder sub-assembly from the brake stroke simulator bracket.
